DK230

Wireless Doorbell Kit

• 400m transmission distance in open area

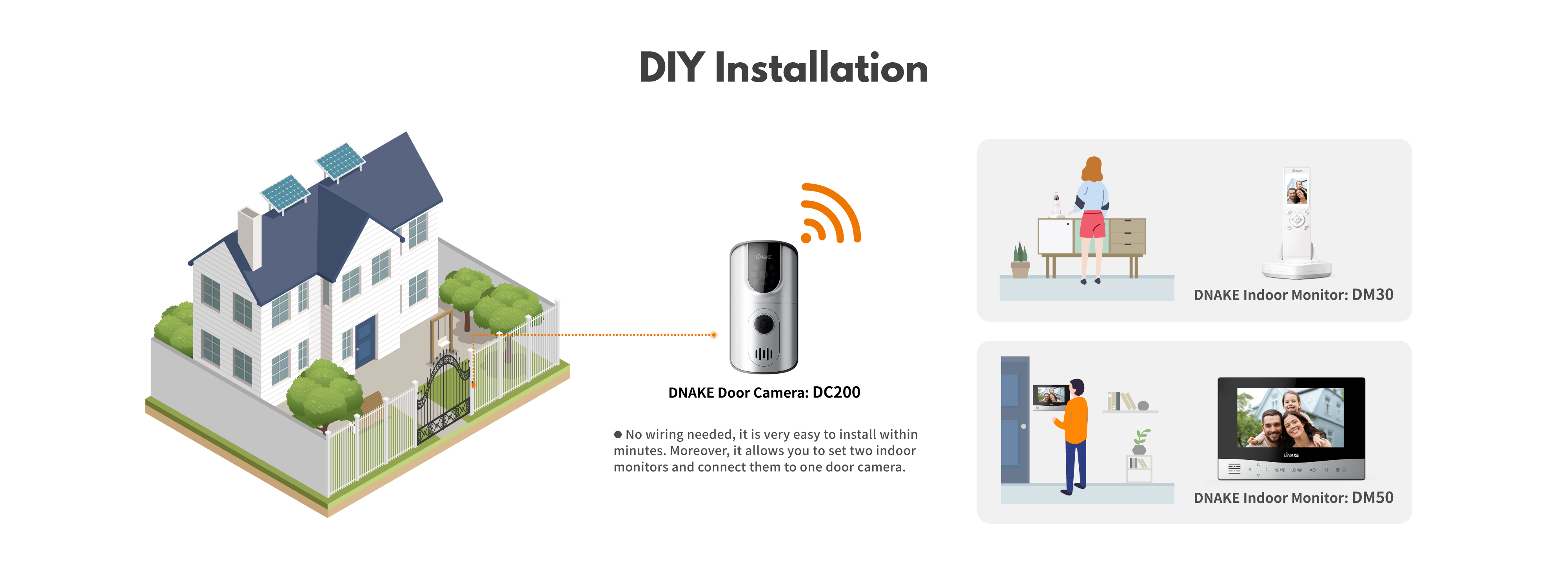

• Easy wireless installation(2.4GHz)

Door Camera DC200:

• IP65 Waterproof

• Tamper Alarm

• Working temperature: -10°C – +55°C

• One door camera support two indoor monitors

• Dual power options: Battery or DC 12V

Indoor Monitor DM30:

• 2.4” TFT LCD, 320 x 240

• Real-time monitoring

• One-key unlock

• Photo capture

• Rechargeable Lithium battery (1100mAh)

• Desktop mounting

New DK230 Detail1 New DK230 Detail2 New DK230 Detail3 DK230 New Detail4 New DK230 Detail 5 Wireless Doorbell Kit Detail6

Spec

Download

Product Tags

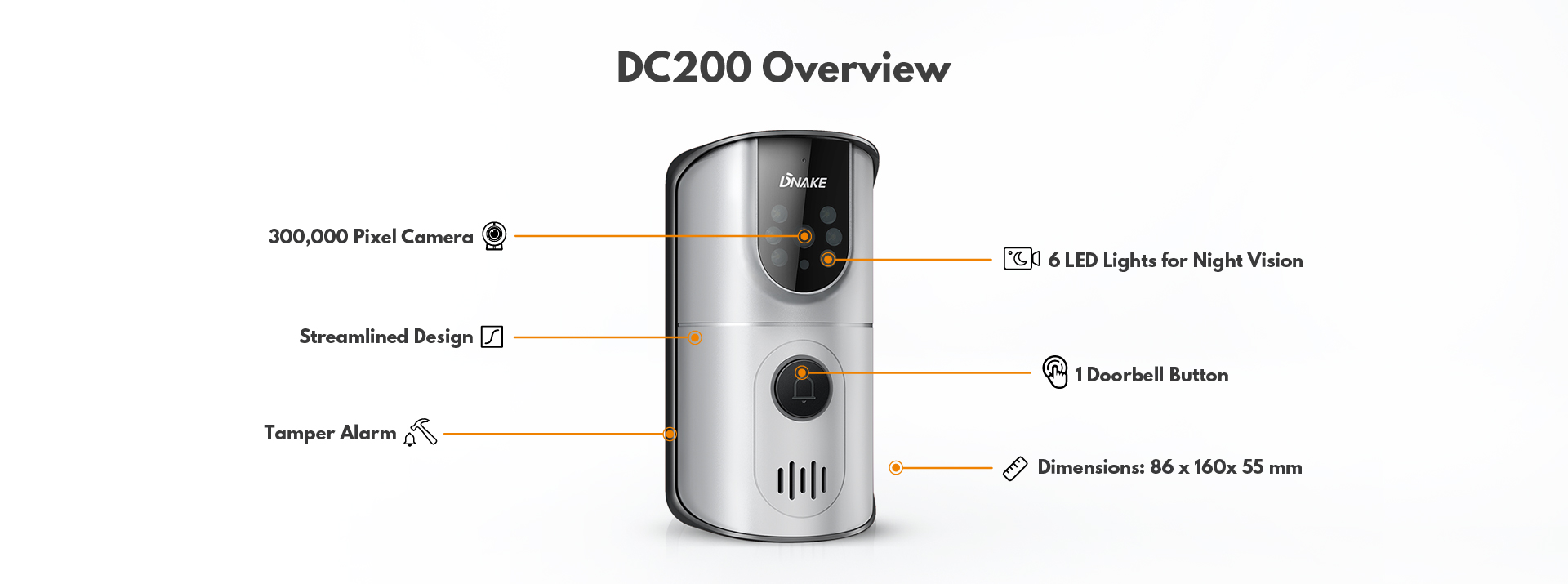

 Physical Property of Door Camera DC200
  Panel  Plastic
  Color  Silver
  Flash  64MB
  Button  Mechanical
  Power Supply  DC 12V or 2*Battery (C size)
  IP Rating   IP65
  LED  6PCS
  Camera  0.3MP
  Installation  Surface mounting
  Dimension  160 x 86 x 55 mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -10℃ - +70℃
  Working Humidity  10%-90% (non-condensing)

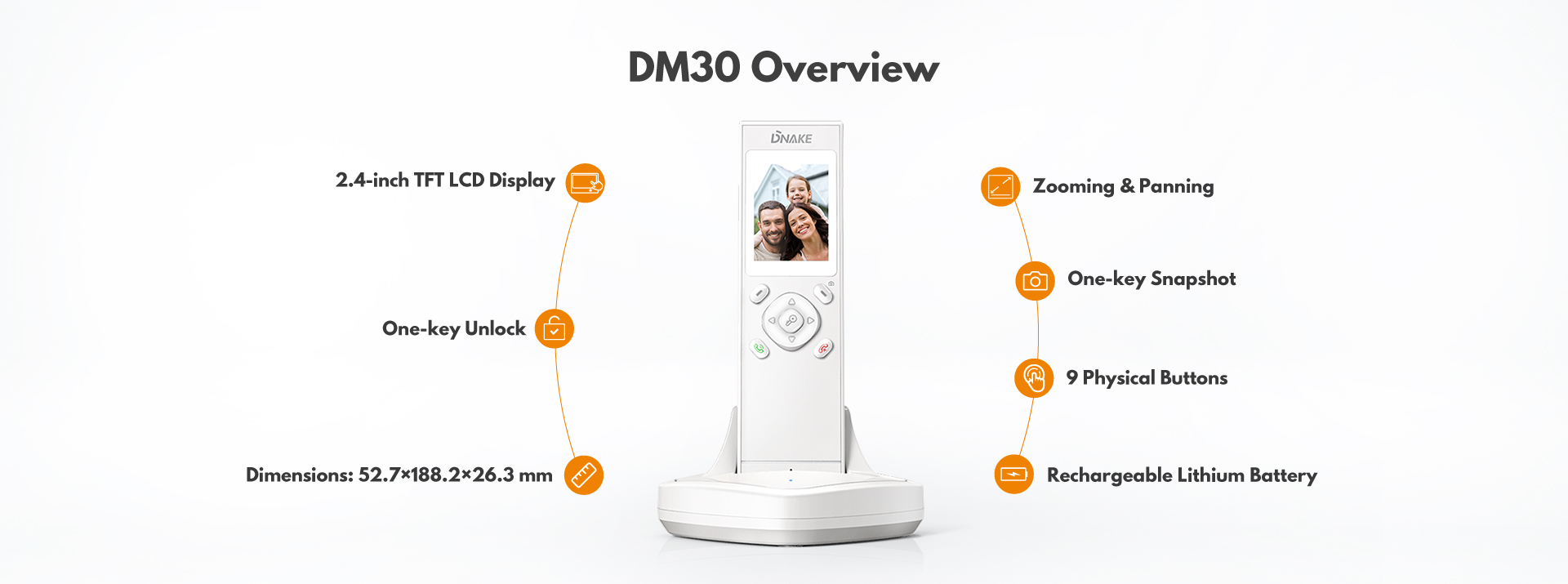

  Physical Property of Indoor Monitor DM30
   Panel  Plastic
  Color   White
  Flash    64MB
  Button    9 Mechanical Buttons
  Power   Rechargeable Lithium Battery (1100mAh)
  Installation   Desktop
  Multi-language   10 (English, Nederlands, Polski, Deutsch, Français, Italiano, Español, Português, Русский, Türk)
  Handset Dimension   172 x 51 x 19.5 mm
  Charger Base Dimension   123.5 x 119 x 37.5 mm
  Working Temperature   -10℃ - +55℃
  Storage Temperature   -10℃ - +70℃
  Working Humidity   10%-90% (non-condensing)
  Screen   2.4-inch TFT LCD
  Resolution   320 x 240
 Audio & Video
  Audio Codec  G.711a
  Video Codec  H.264
  Video Resolution of DC200  640 x 480
  Viewing Angle of DC200  105°
  Snapshot  100PCS
 Transmission
  Transmit Frequency Range  2.4GHz-2.4835GHz
  Data Rate  2.0 Mbps
  Modulation Type  GFSK

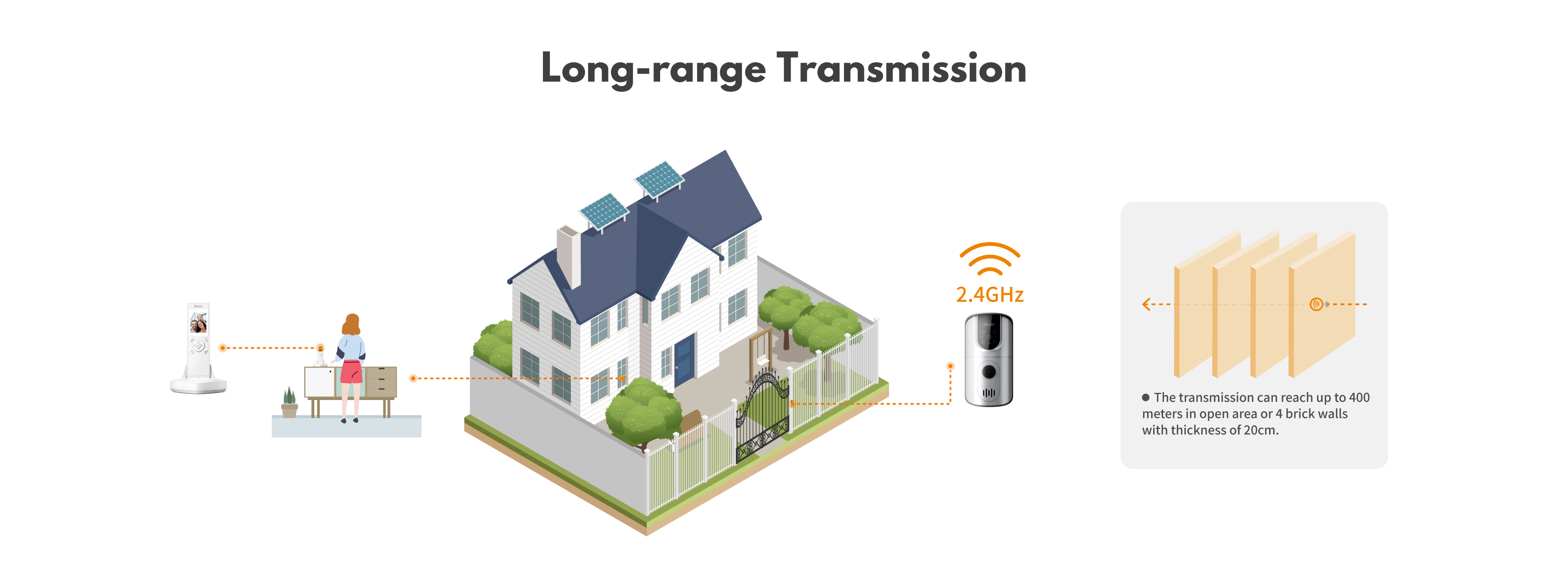

  Transmit Distance (in Open Area)  400m
  • Datasheet 904M-S3.pdf
