S617

8” Facial Recognition Android Door Station

• 8” color IPS LCD
• Dual HD cameras at 2MP resolution
• 120° wide viewing angle
• Support WDR technology to lighten the dark areas and darken the overexposed parts of the image
• Door entry methods: call, face, IC card (13.56MHz), ID card (125kHz), PIN code, APP, Bluetooth(optional)
• Anti-spoofing algorithm against photos and videos
• Support 20,000 users, 20,000 faces, and 60,000 cards
• Tamper alarm
• Support surface & flush mounting
• Easy integration with other SIP devices by SIP 2.0 protocol
Onvif logo1 Wiegand IP65IK08 PoE+ Logo

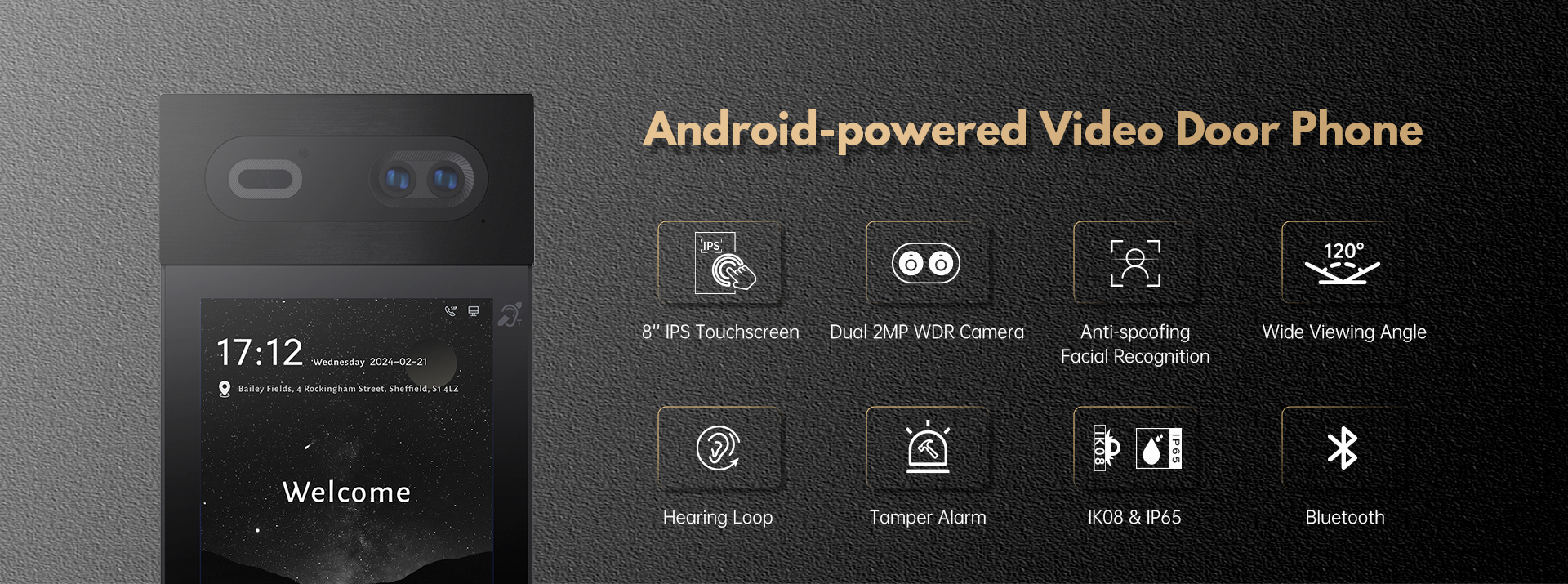

S617-_01 S617-_02 S617-_05 S617-_04 S617-_03 S617-_06

Spec

Download

Product Tags

 Physical Property
  System  Android
  RAM  2GB
  ROM   8GB
  Front Panel  Aluminum
  Power Supply  PoE+ (802.3at) or DC12V/2A
  Camera  2MP, CMOS, WDR
  Door Entry  Face, IC (13.56MHz) & ID (125kHz) card, PIN code, APP, Bluetooth (Optional)
  IP/IK Rating  IP65 / IK08
  Installation  Flush Mounting & Surface Mounting
  Surface Mounting Dimension  140 x 300 x 41.8 mm
  Flush Mounting Dimension  140 x 300 x 60.3 mm
  Working Temperature  -40℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  8-inch IPS LCD
  Resolution  1280 x 800
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
  Video Resolution  up to 1920 x 1080
  Viewing Angle  120°(H) / 75°(V) / 131°(D)
  Light Compensation  LED white light
 Networking
  Protocol  Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Wiegand Port  Support
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Relay Out  3
  Reset Button  1
  Input  4
  • Datasheet 904M-S3.pdf
    Download
