IPK01

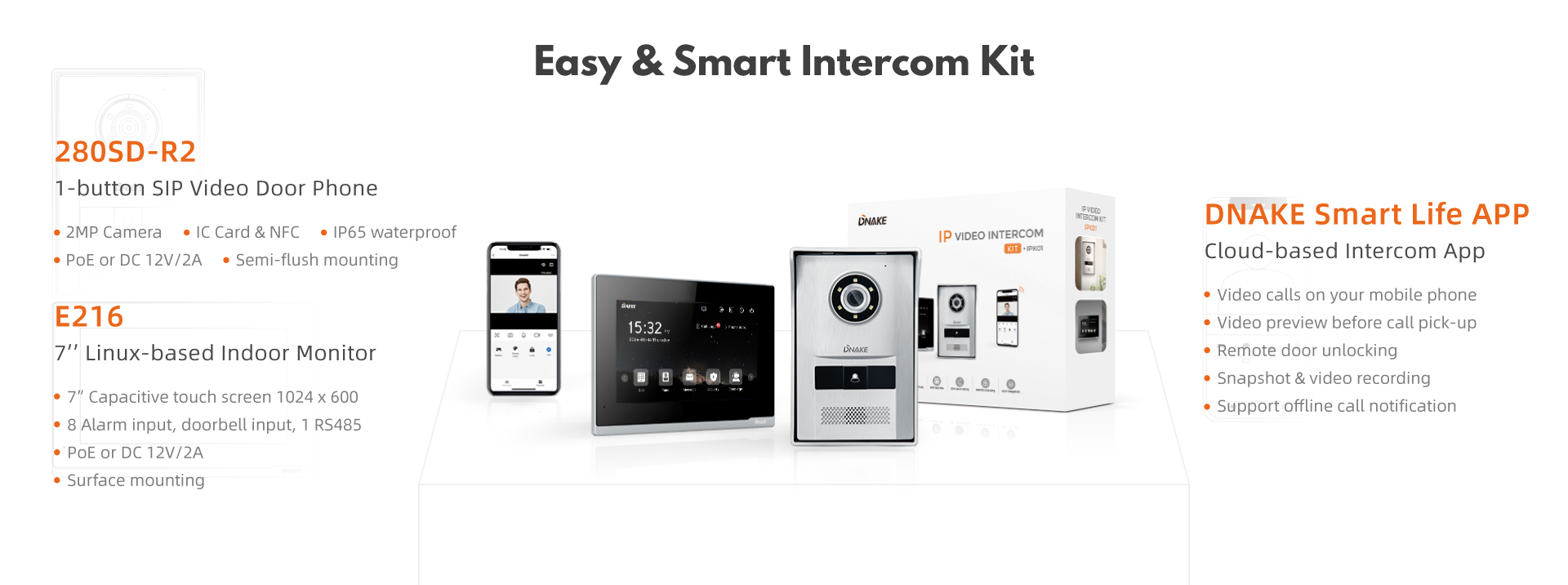

IP Video Intercom Kit

• Simple installation, maintenance & wiring
• One-touch calling, talking and unlocking
• Convenient remote control via mobile app
• Intuitive step-by-step configuration
• User-friendly navigation and interface

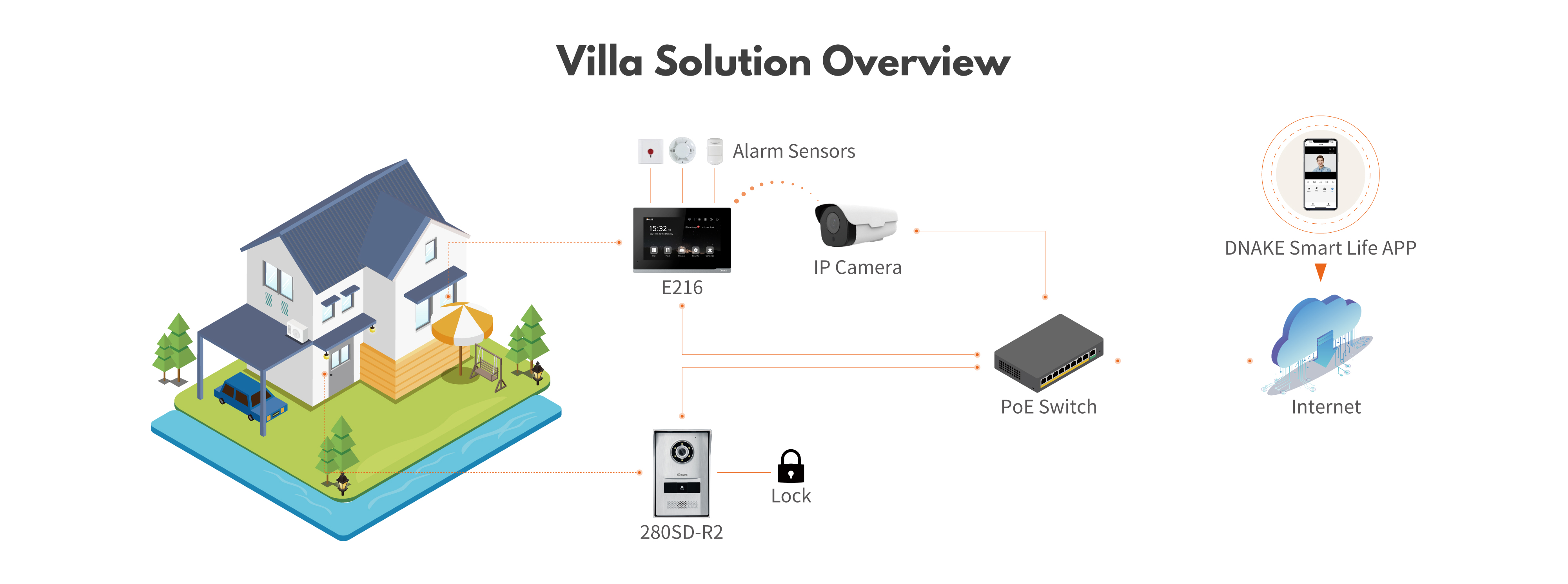

• CCTV and alarm integration
• Expandable with other intercom devices
• Standard PoE
 IPK01 icon-2_1IPK01 icon-2_4IPK01 icon-2_5IPK01 icon-2_6
DNAKE IP Intercom Kit IPK01 Detail1 DNAKE IP Intercom Kit IPK01 NEW Detail2 DNAKE IP Intercom Kit IPK01 Detail5 New IPK01 Detail4 IP Intercom Kit IPK01 Detail2

Spec

Download

 Physical Property of Door Station 280SD-R2
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Plastic
  Power Supply   PoE (802.3af) or DC 12V/2A
  Camera  2MP, CMOS
  Video Resolution  1280 x 720
  Viewing Angle  100°(D)
  Door Entry  IC card(13.56MHz), NFC
  IP Rating  IP65
  Installation  Surface mounting
  Dimension  170.5 x 111 x 38.6 mm
  Working Temperature  -40℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
   Physical Property of Indoor Monitor E216
  System  Linux
  Display  7-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  1024 x 600
   RAM   64MB
   ROM  128MB
  Front Panel  Plastic
  Power Supply     PoE (802.3af) or DC 12V/2A
  Installation  Surface Mounting
  Dimension  195 x 130 x 14.5 mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -10℃ - +60℃
  Working Humidity  10%-90% (non-condensing)
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
  Light Compensation  LED white light
 Networking
  Protocol  ONVIF(for Door Station), SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Relay Out of Door Station 280SD-R2  1
  Exit Button of Door Station 280SD-R2  1
  Door Magnetic of Door Station 280SD-R2  1
  • Datasheet 904M-S3.pdf
