| Physical Property | |
| System | Linux |
| RAM | 64MB |
| ROM | 128MB |
| Front Panel | Plastic |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 3W |
| Camera | 2MP, CMOS |
| IR Sensor | Support |
| Door Entry | IC card(13.56MHz), NFC |

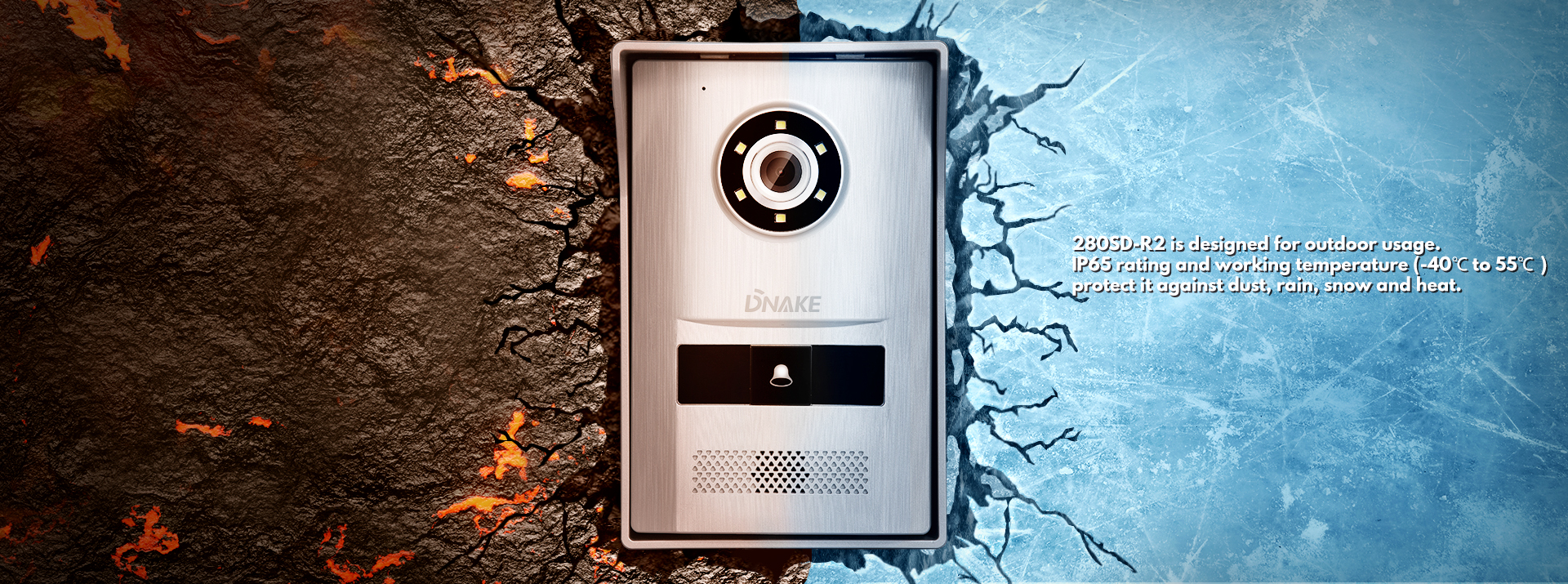

| IP Rating | IP65 |
| Installation | Surface mounting |
| Dimension | 170.5 x 111 x 38.6 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 100°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |

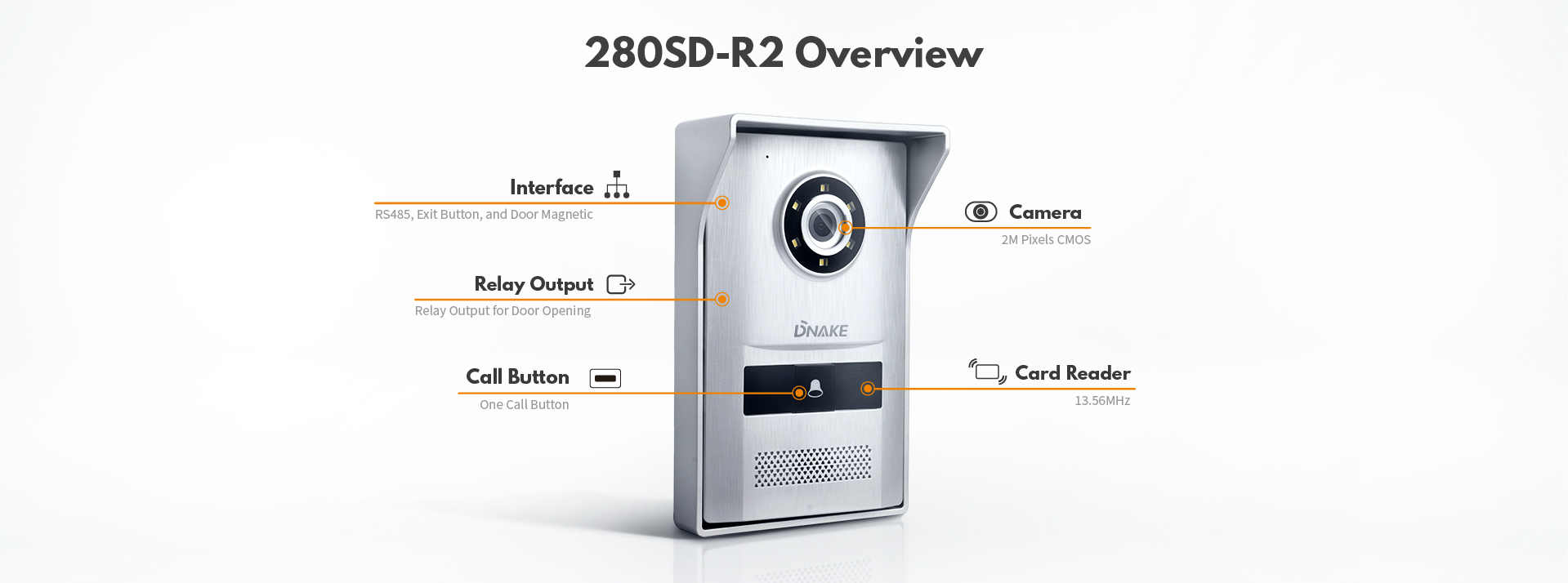

| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 1 |
| Exit Button | 1 |
| Door Magnetic | 1 |
-
Datasheet 904M-S3.pdfDownload
