290A

2-Wire Distributor

290A IP-2Wire Isolator

•2 cascade interfaces for 2-level cascade
•2-wire cascade interfaces with device power supply for connection to 8 indoor monitors or 290 slave converters (24 in total)
•Two ethernet ports
•1 indicator, 1 power supply
•Din rail or screwfix mounting
2-Wire Distributor 290A 2-Wire IP Video Intercom Detail 2022.5.17

Spec

Download

Physical Property
Material  Plastic
Power Supply DC 48V ±10%
Rated Power 4W
Wire Diameter RVV 2*0.75, ≤100m
Network Cable Cat 5e, Cat 6 or better
Dimension 197 x 114 x 38mm
Working Temperature -40℃ ~ +55℃
Storage Temperature -10℃ ~ +70℃
Working Humidity 10% ~ 90% (non-condensing)
Port
Ethernet Port 2 x RJ45, 10/100 Mbps adaptive
Main In 1
Main Out 1
Transmission Method
Access Method CSMA/CA
Transmission Scheme Wavelet OFDM
Frequency Bandwidth 2 MHz to 28 MHz
  • Datasheet 904M-S3.pdf
    Download

Get A Quote

Related Products



2-Wire Ethernet Converter
Master

2-Wire Ethernet Converter

2-Wire Ethernet Converter
Slave

2-Wire Ethernet Converter

2-Wire Distributor
290AB

2-Wire Distributor

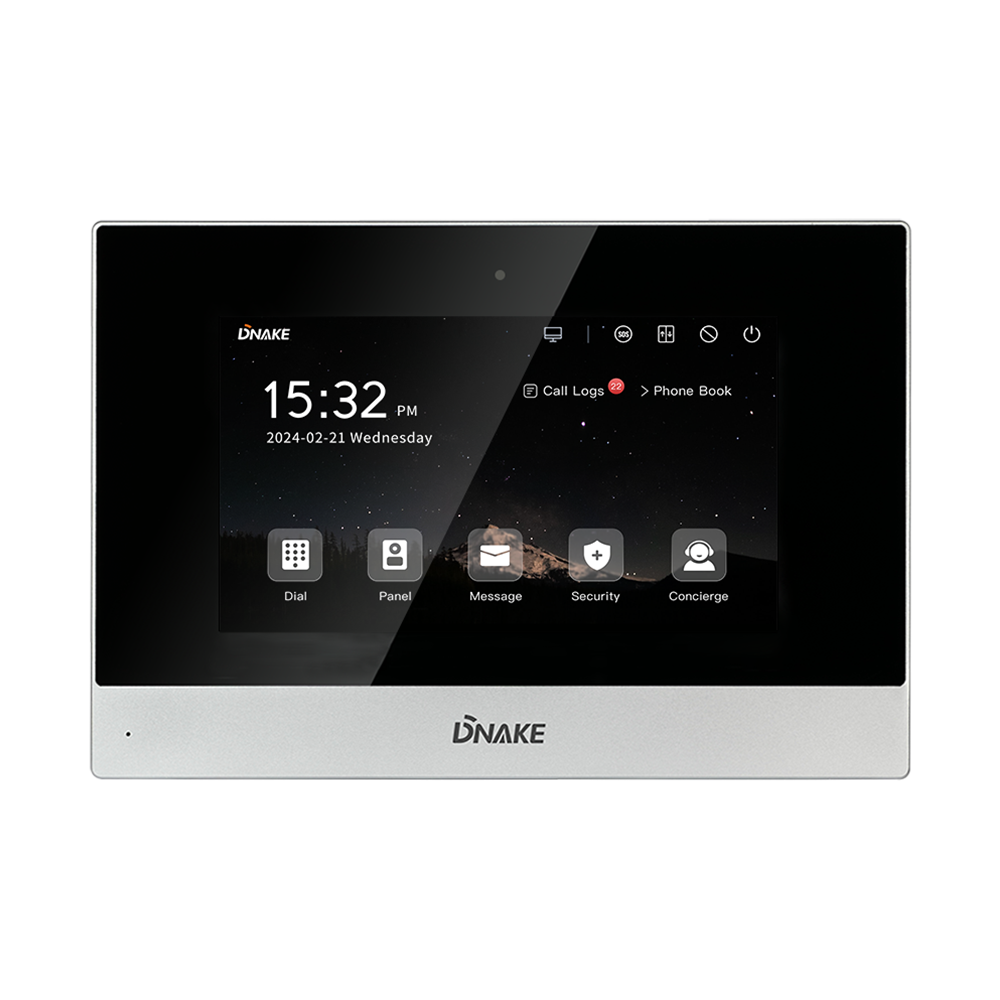

7-inch Indoor Monitor (2-wire Version)
