280SD-C12

1-button SIP Video Door Phone

280SD-C12 Linux SIP2.0 Villa Panel

• Powered by PoE or power adapter (DC12V/2A)
• Open the door by IC card (20,000 users)
• Support SIP 2.0 protocol, easy integration with other SIP devices
• Easy integration with elevator control system
Y-4icon_画板 1 副本Y-4icon_画板 1 副本 3 Onvif logo1
280SD-C12 Detail1 280SD-C12 Detail2 280SD-C12 Detail3 280SD-C12 Detail4

Spec

Download

 Physical Property
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Aluminum
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  1.5W
  Rated Power  3W
  Camera  2MP, CMOS
  IR Sensor  Support
  Door Entry  IC card(13.56MHz), NFC
  IP/IK Rating  IP65 / IK07

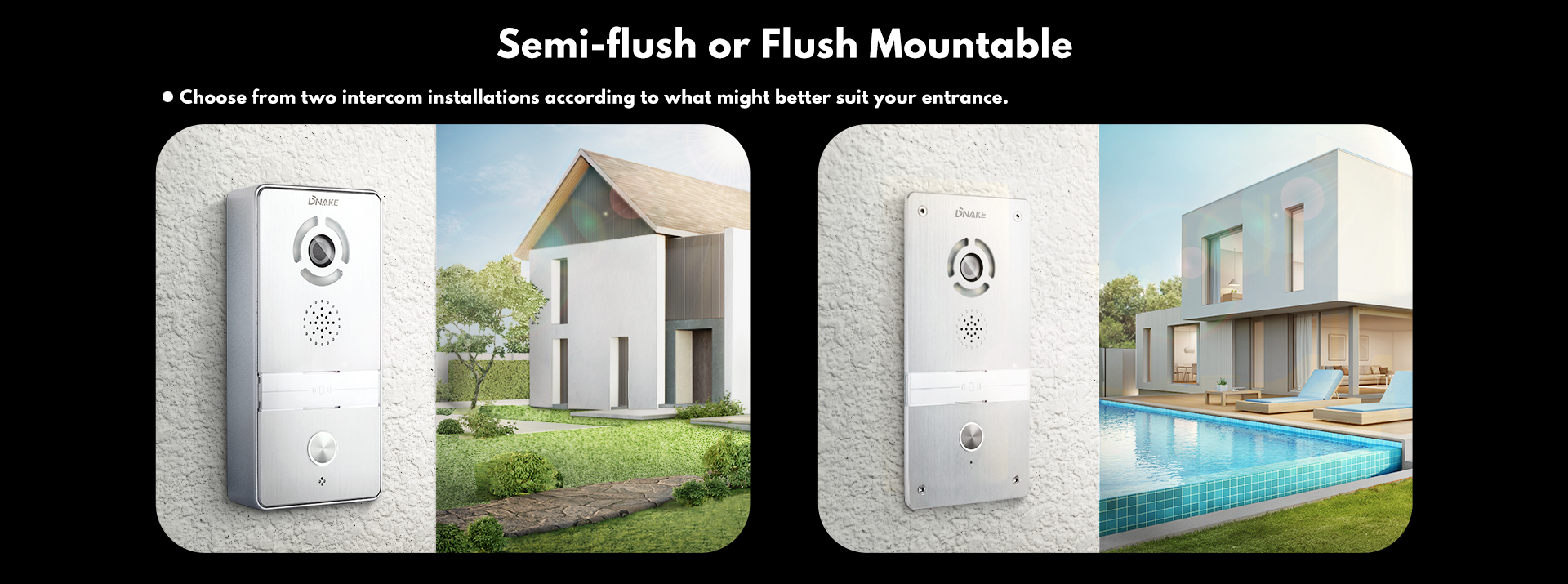

  Installation  Flush/Surface Mounting
  Dimension  190 x 95 x 27 mm (Flush Mounting); 170 x 84.5 x 31 mm (Surface Mounting)
  Working Temperature  -40℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
  Video Resolution  1280 x 720
  Light Compensation  LED white light
 Networking
  Protocol  ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Relay Out  1
  Exit Button  1
  Door Magnetic  1
  • Datasheet 904M-S3.pdf
    Download
