2-WIRE INTERCOM SOLUTION FOR APARTMENT RETROFIT
Smart Upgrade without Rewiring
KEEP THE WIRES.
UPGRADE THE EXPERIENCE.
Bring smart, connected intercom to existing apartment buildings — without opening walls or replacing existing cabling. DNAKE 2-Wire Intercom Solution for Apartment Retrofits reuses existing 2-wire infrastructure to deliver a modern intercom experience with lower retrofit costs, less complexity for installers, and less disruption for residents.
HOW IT WORKS?

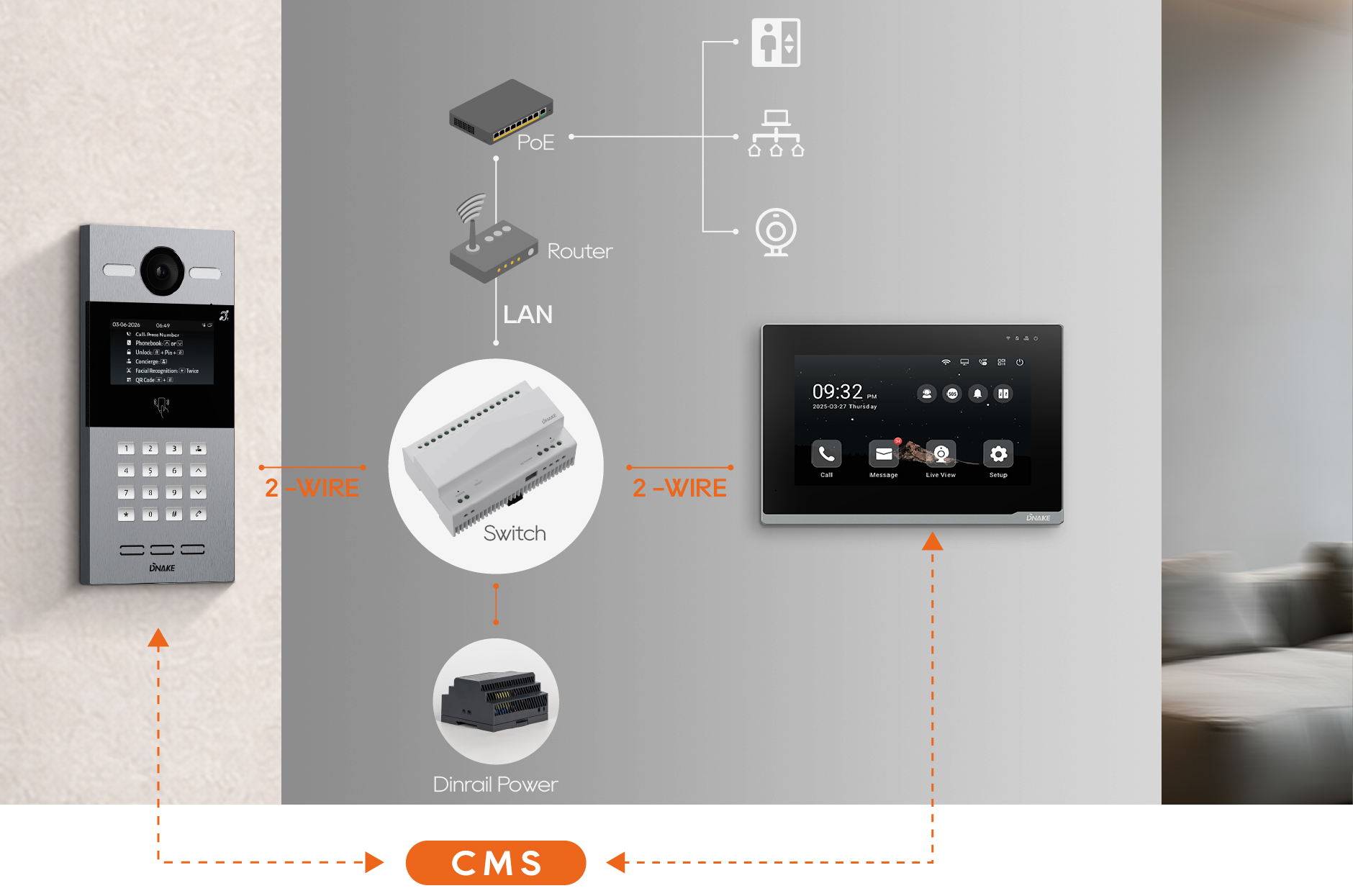

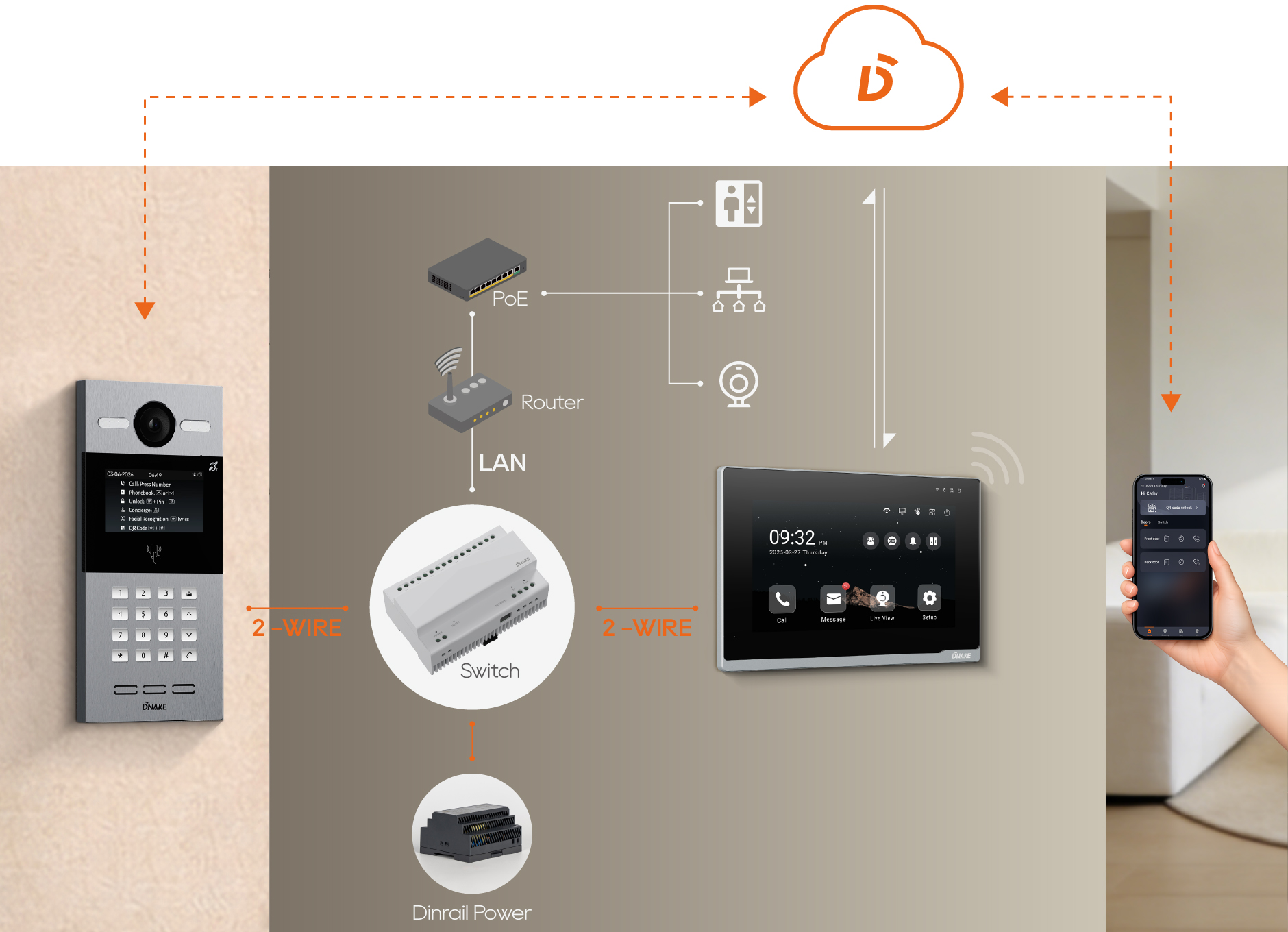

DNAKE uses existing 2-wire cabling to connect door stations, indoor monitors, and management platforms across the building. Power, audio, video, and data run over the same pair of wires, providing a practical path from legacy intercom to a modern, IP-ready system.
KEY BENEFITS
No Rewiring Required
Reuses existing 2-wire infrastructure with Mobile Web and DIP Switch configuration, eliminating costly rewiring while reducing installation time, labor, and on-site setup complexity.
Enhanced Wire Compatibility
Optimized circuitry and low-power design enable reliable operation across various wire types and gauges, even with aging wiring, long cable runs, and limited power capacity.
Flexible Deployment

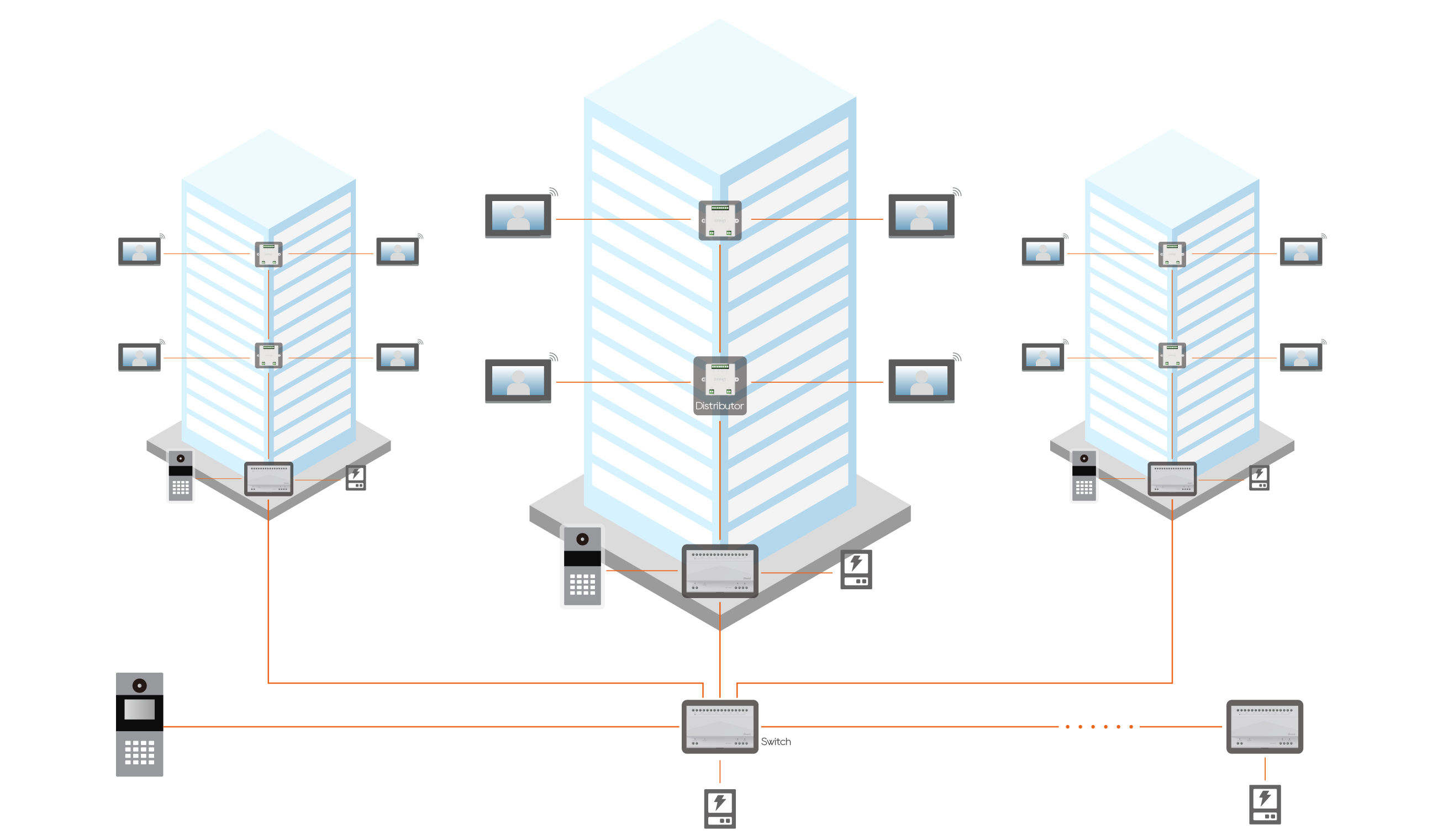

Supports daisy-chain, star, and hybrid topologies, adapting easily from single apartment buildings to large multi-building communities.
Intelligent Intercom Experience
Supports cloud-based and on-premises CMS management, mobile access, and seamless integration with IP systems, including IP door stations, elevator control, master stations, and IP cameras.
SMART CONNECTIVITY
DNAKE Cloud Service
Manage remotely. Respond faster.
DNAKE CMS
Deployed on-premises, managed locally.
CHOOSE THE RIGHT SETUP
Low-Rise Apartment Buildings
A practical setup for smaller multi-family buildings, featuring multi-button door stations and nameplates for simple and intuitive visitor calling.
High-Rise Apartment Buildings
A streamlined solution for larger apartment buildings, featuring a keypad-based door station for efficient resident calling without multiple physical call buttons.
Large Residential Communities
A scalable solution for large residential projects, combining a 4.3" Android wall station, flexible door station options, 7" indoor monitors, and expandable 2-wire infrastructure to support different building layouts and entrance requirements.
EXPLORE PRODUCT DETAILS

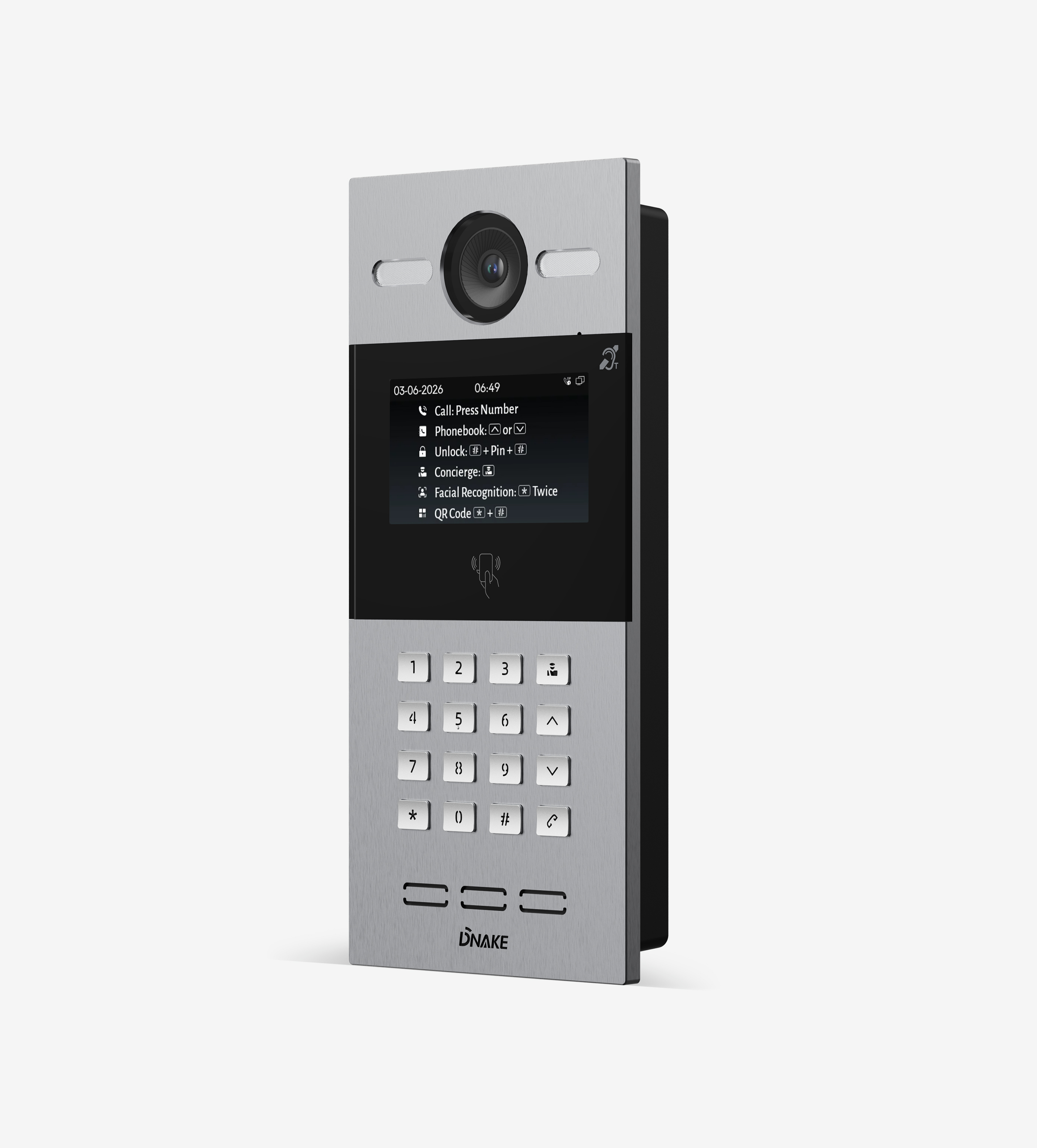

S405

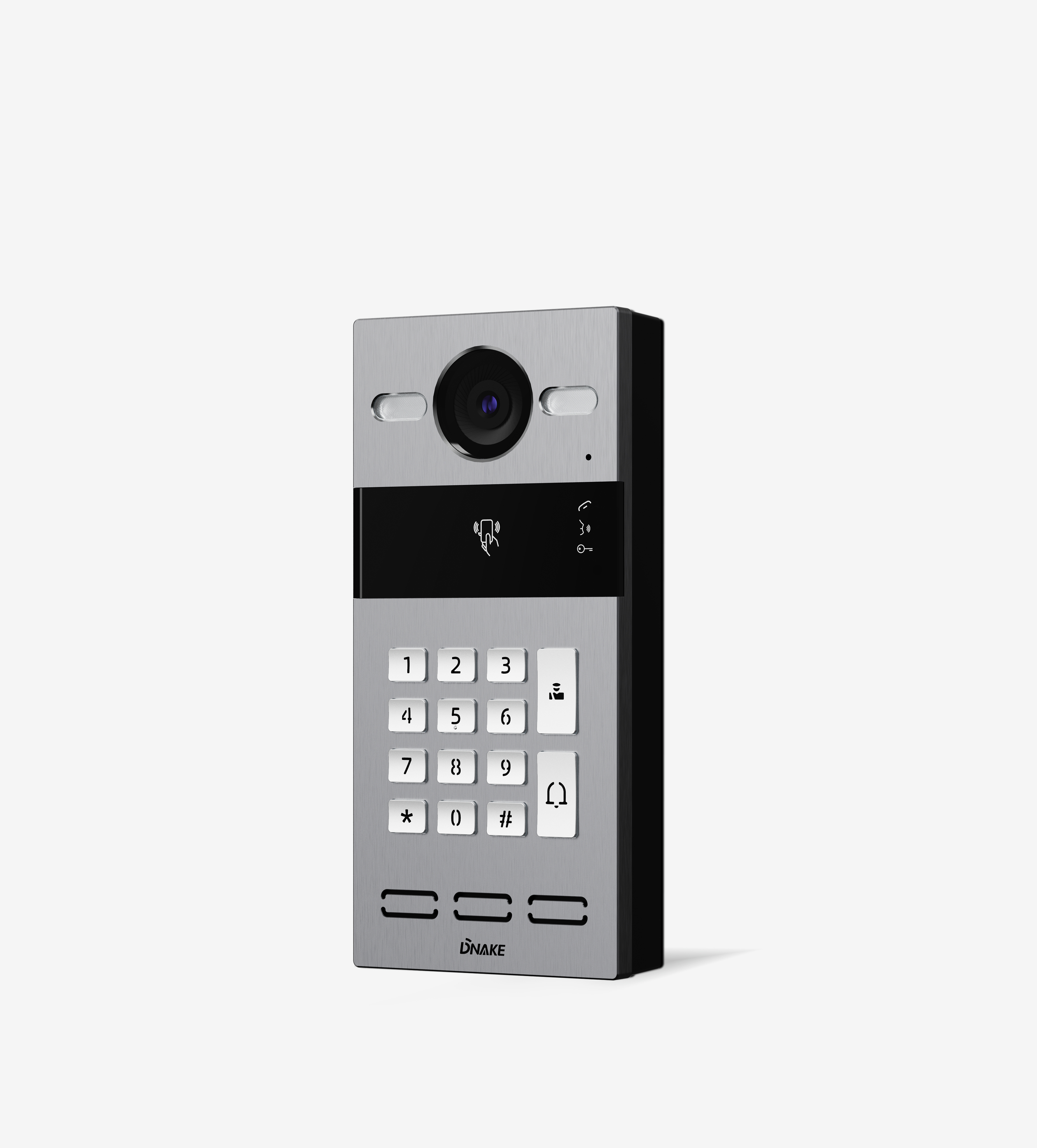

S103K
S103M-5

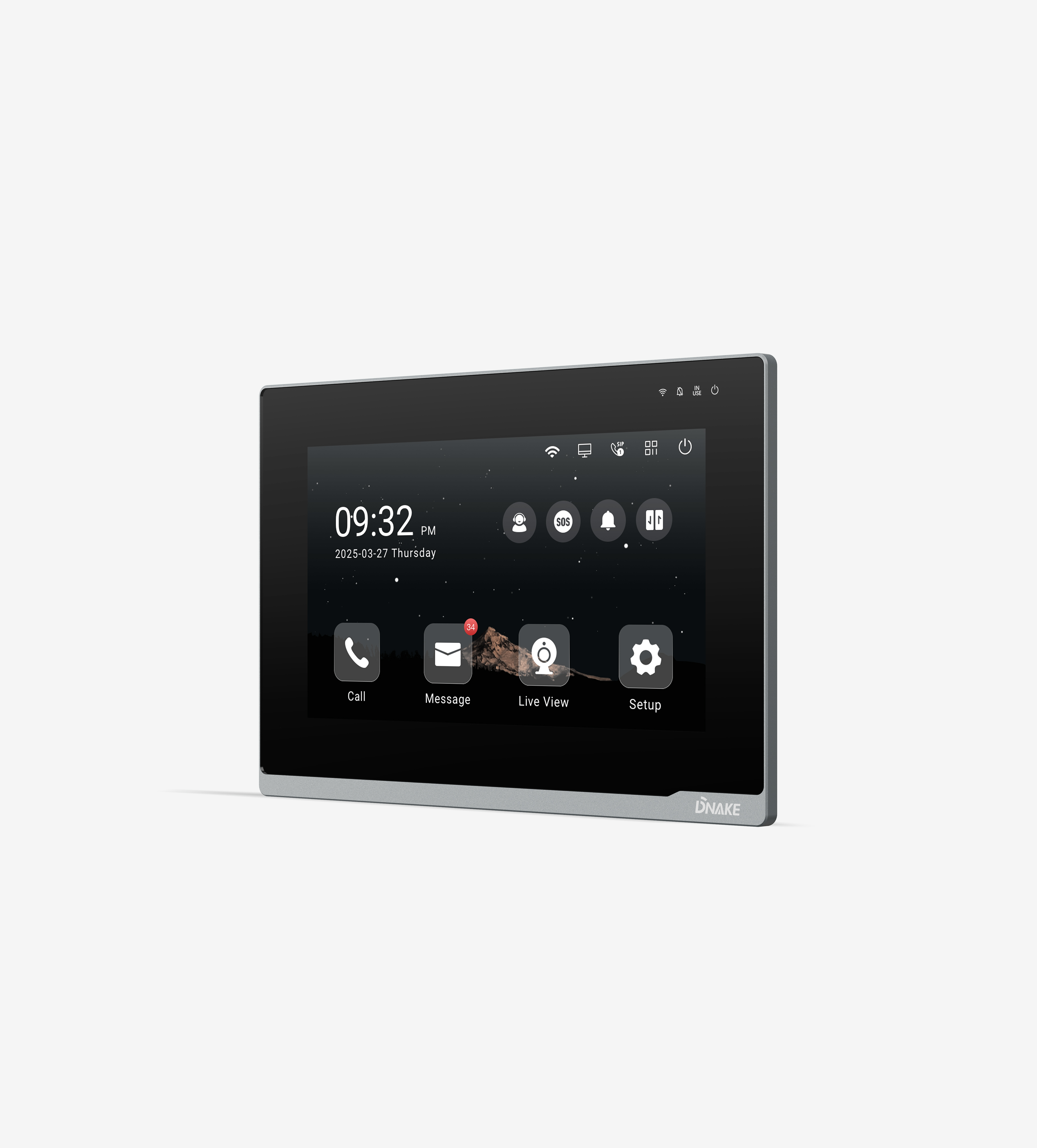

E307W

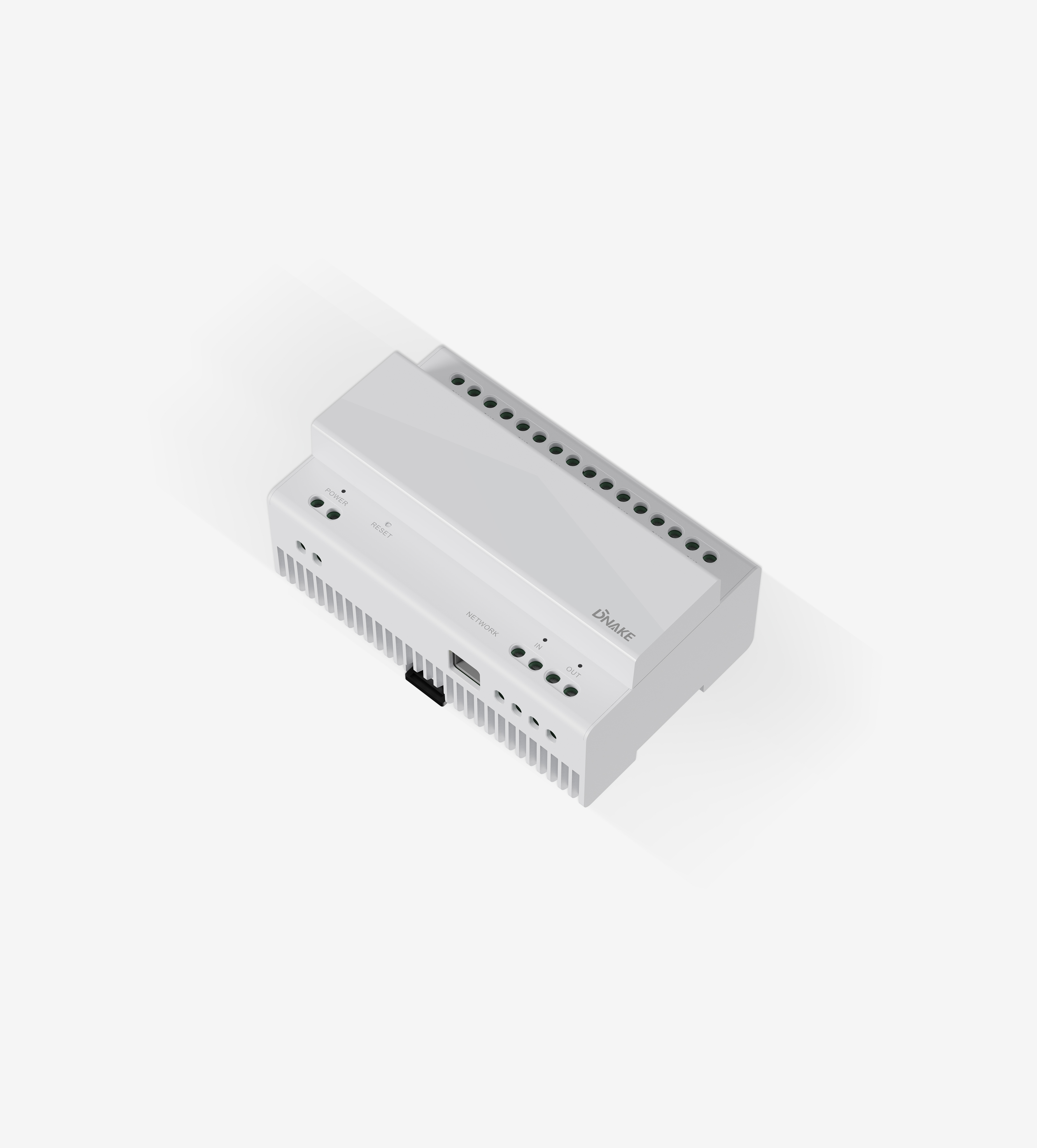

TWD02

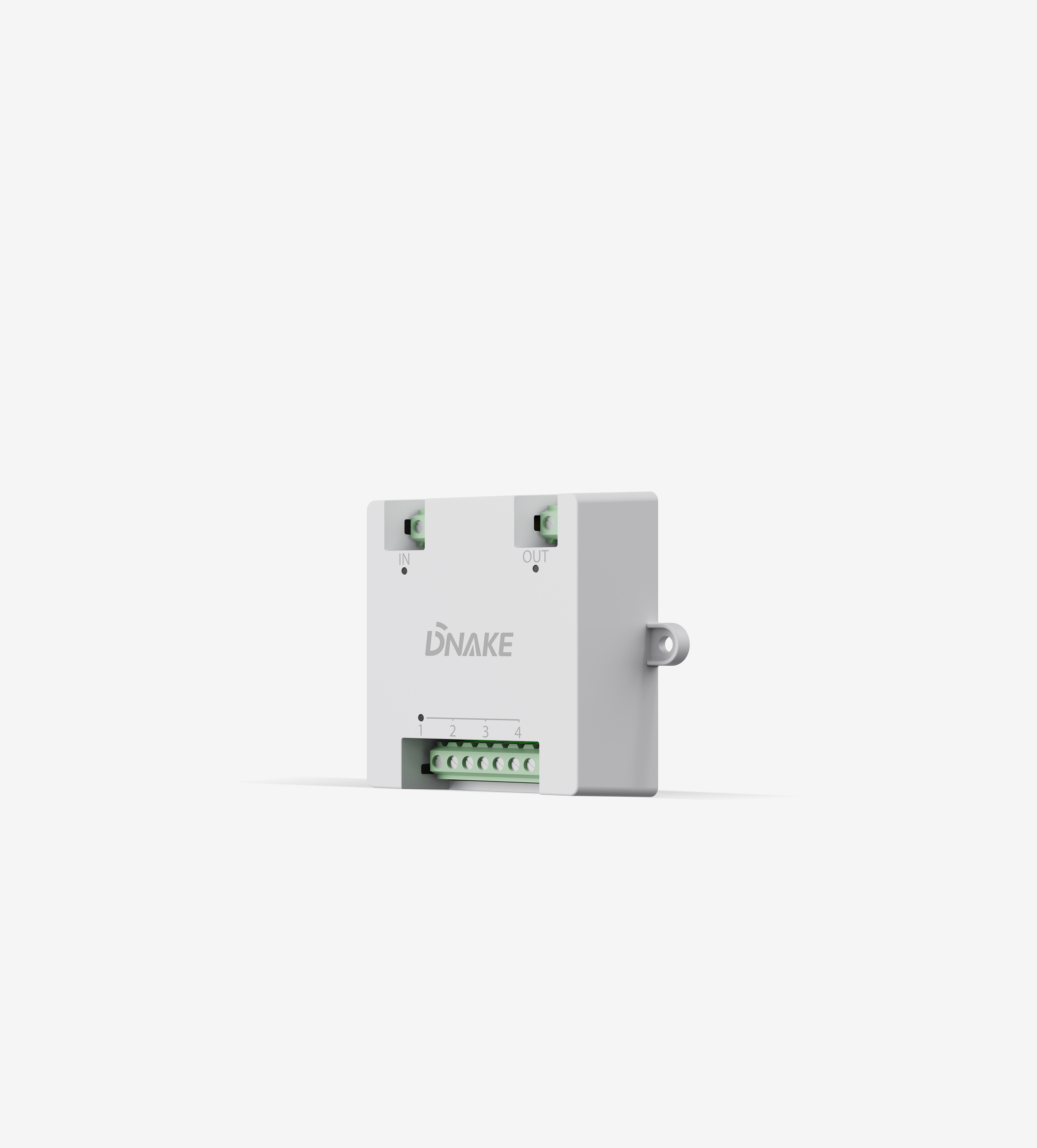

TWD03

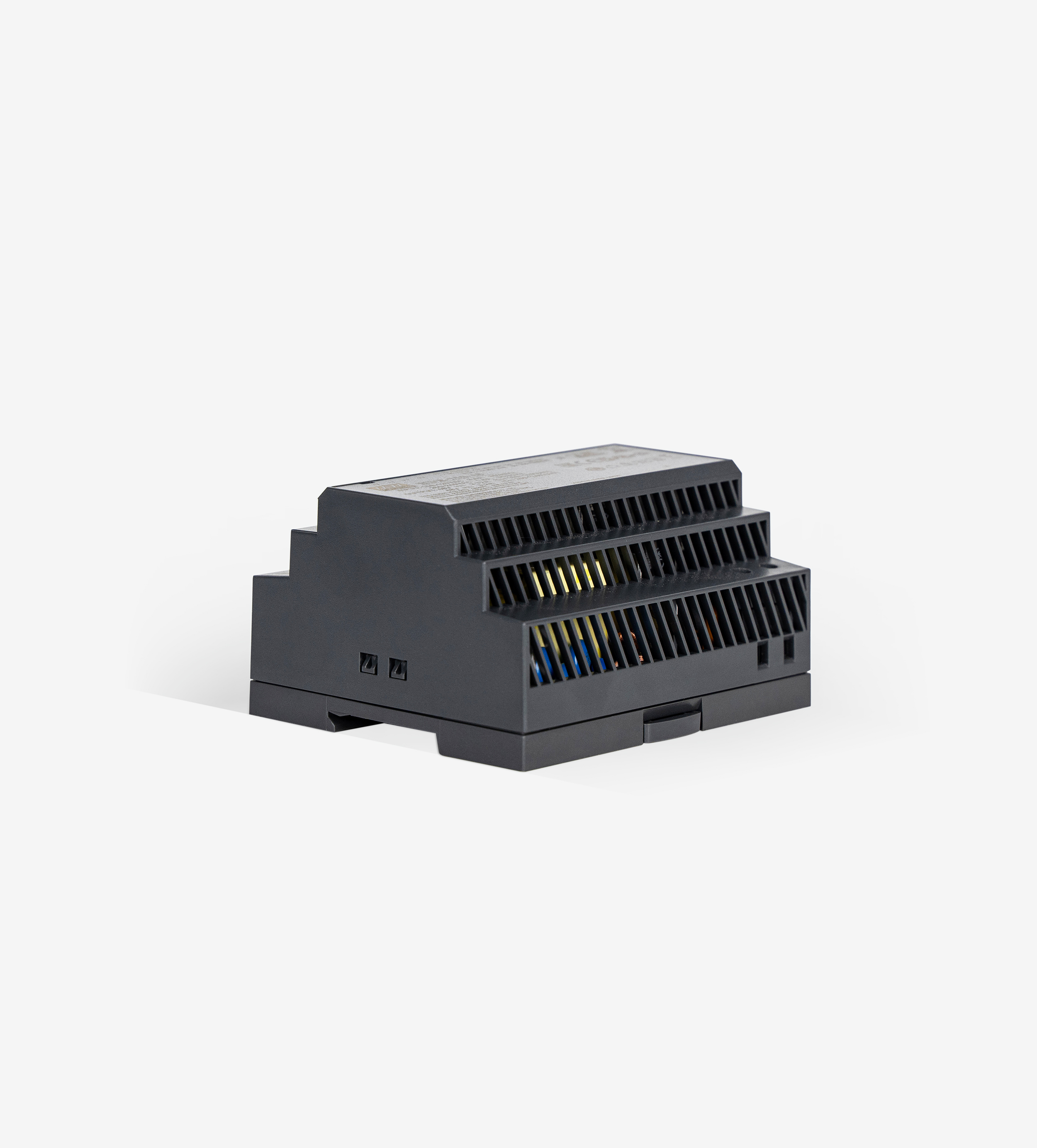

HDR-150-48
WATCH NOW
Learn how to wire and configure the DNAKE 2-wire apartment intercom system with step-by-step installation videos.
DOWNLOAD RESOURCES
FAQ
Connect the distributor to a router with an internet connection. This provides internet access for the entire system, allowing the system to connect to the DNAKE Cloud and enable call forwarding without Wi-Fi on monitors.
Connect the elevator control unit and management unit to the IP switch, and then connect the IP switch to the 2-wire switch via a network cable to integrate them into the 2-wire system.
The minimum conductor cross-section is 0.2 mm² (AWG 24) due to terminal limitations. The recommended conductor cross-section is 0.75–1.0 mm² (approximately AWG 17–18).
No. Parallel wires can also be used. However, twisted-pair cables are recommended as they provide better noise immunity and interference rejection.
The TWD03 provides signal amplification and signal gain enhancement. It is not required for every installation. However, without the TWD03, the number of devices that can be connected to the TWD02 will be reduced.
When more than 18 devices are connected to a TWD02, a TWD03 is required in combination. The TWD03 receives its power from the TWD02.
A maximum of 4 TWD02 units can be cascaded within the same building, supporting a maximum of 128 residents.
