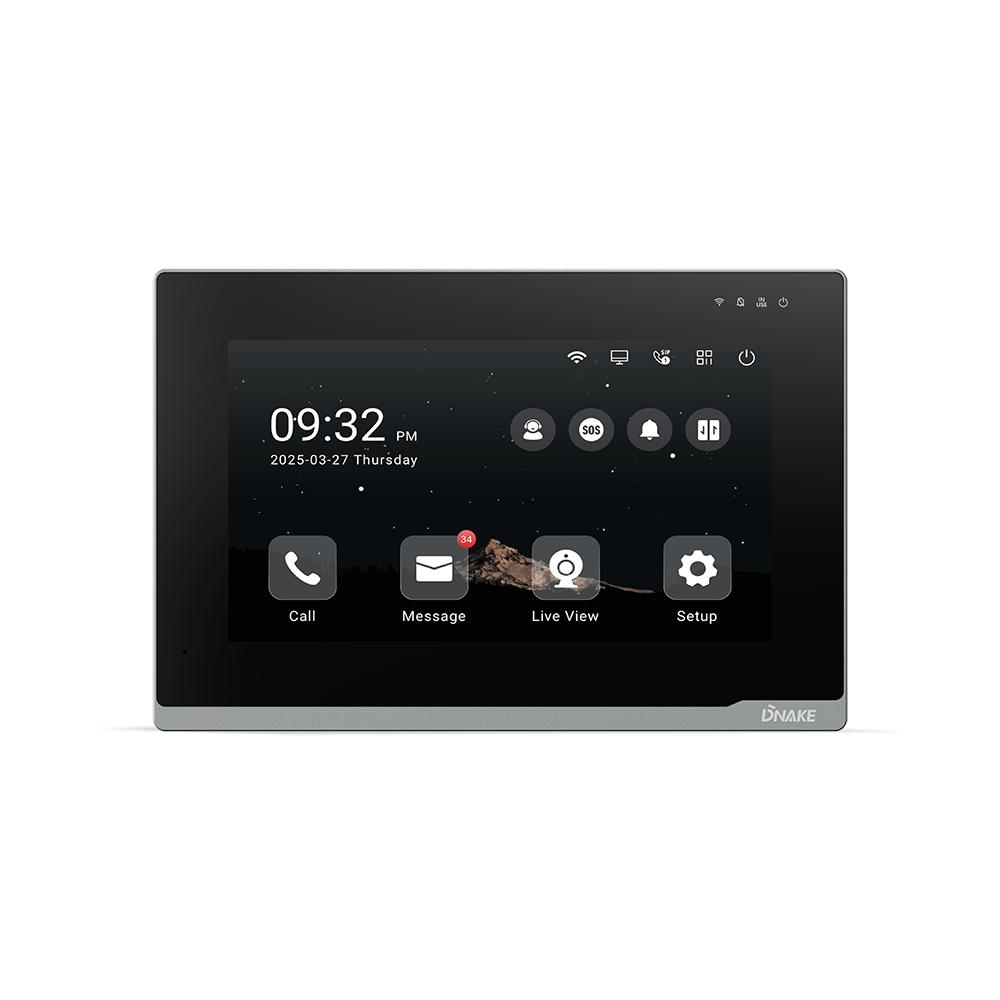

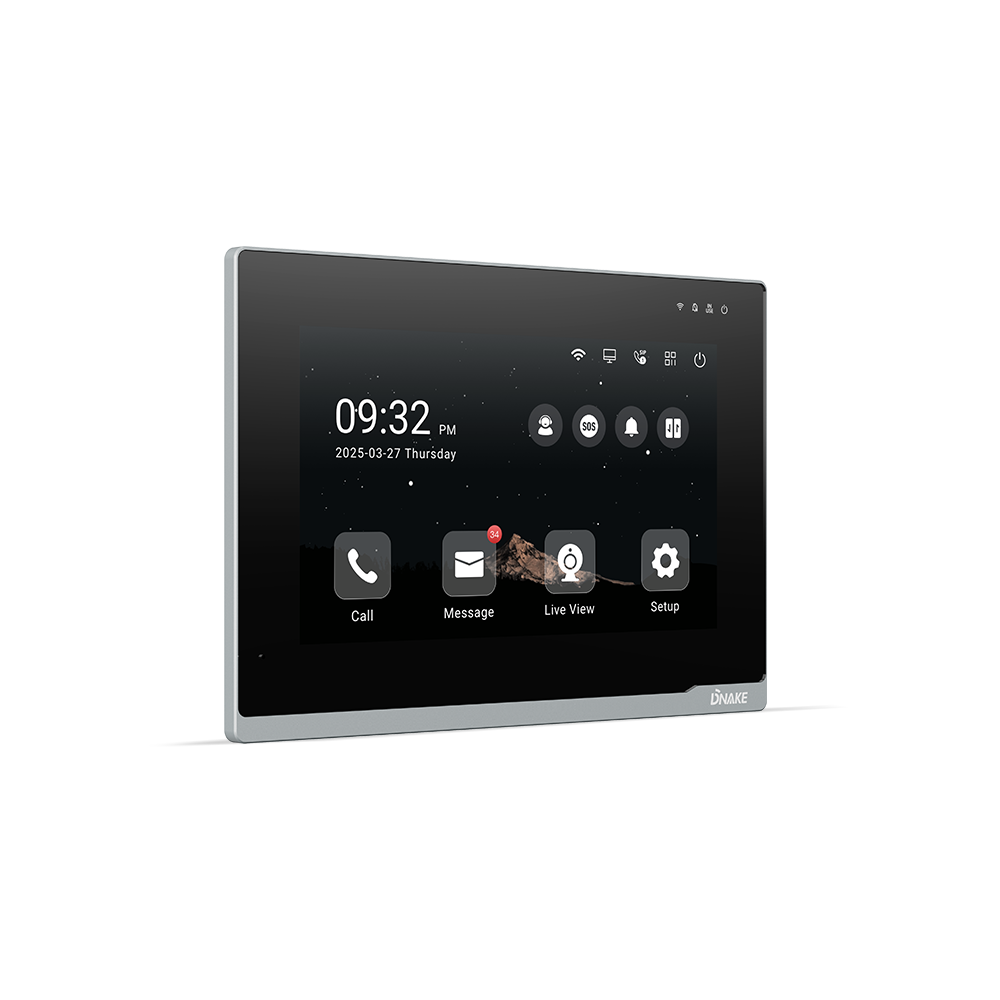

E307W

2-WIRE 7” Indoor Monitor

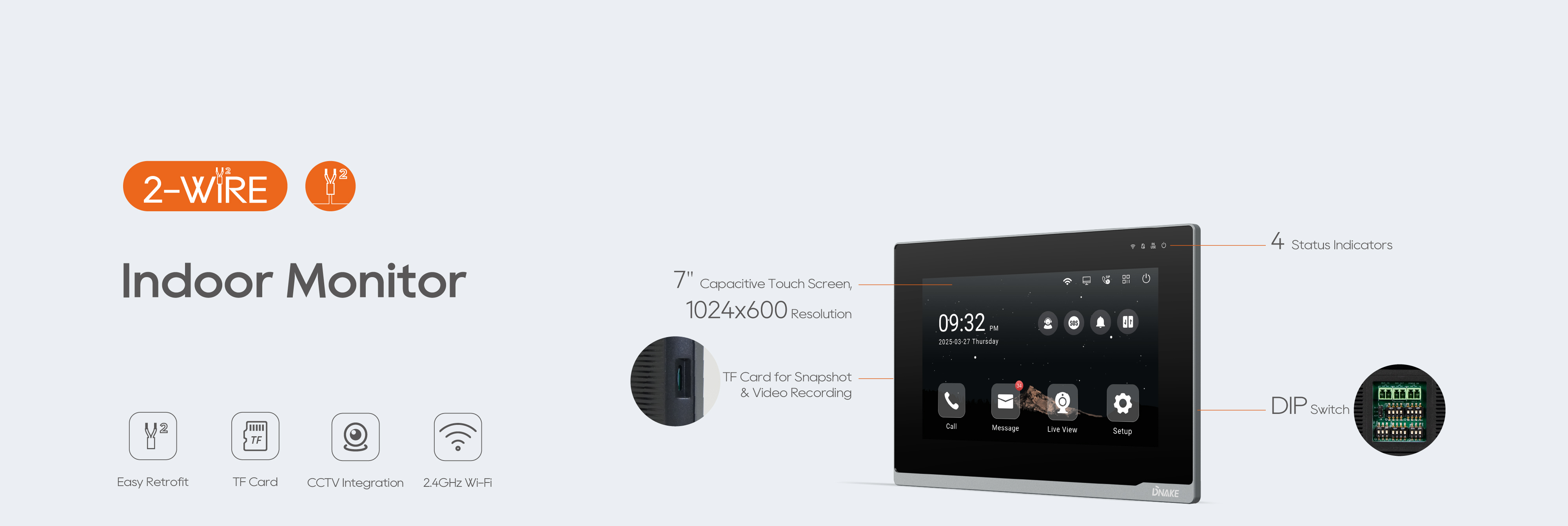

• 7” capacitive touch screen, 1024 x 600

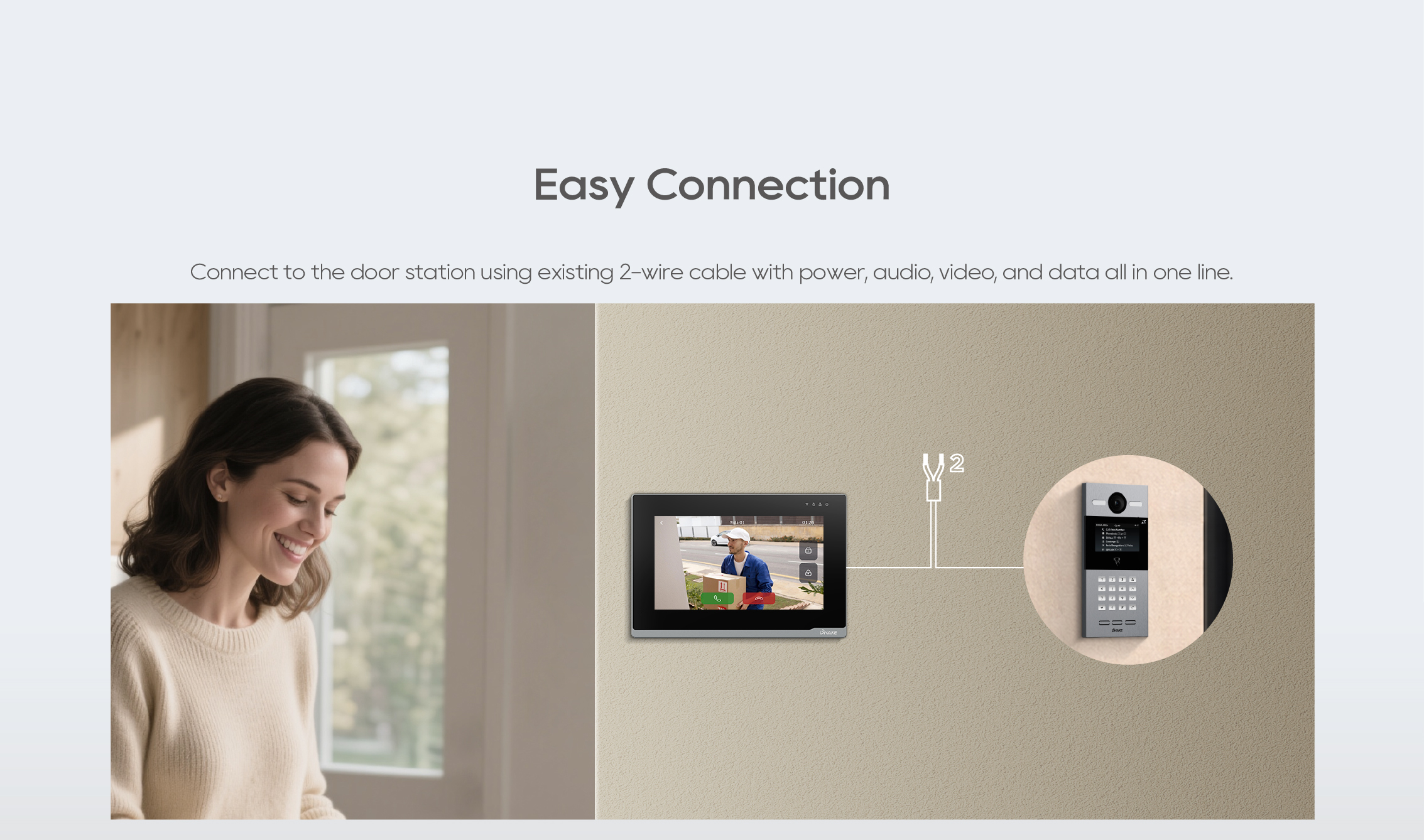

• Powered by 2-wire BUS or optional 12V DC adapter

• Wi-Fi supported

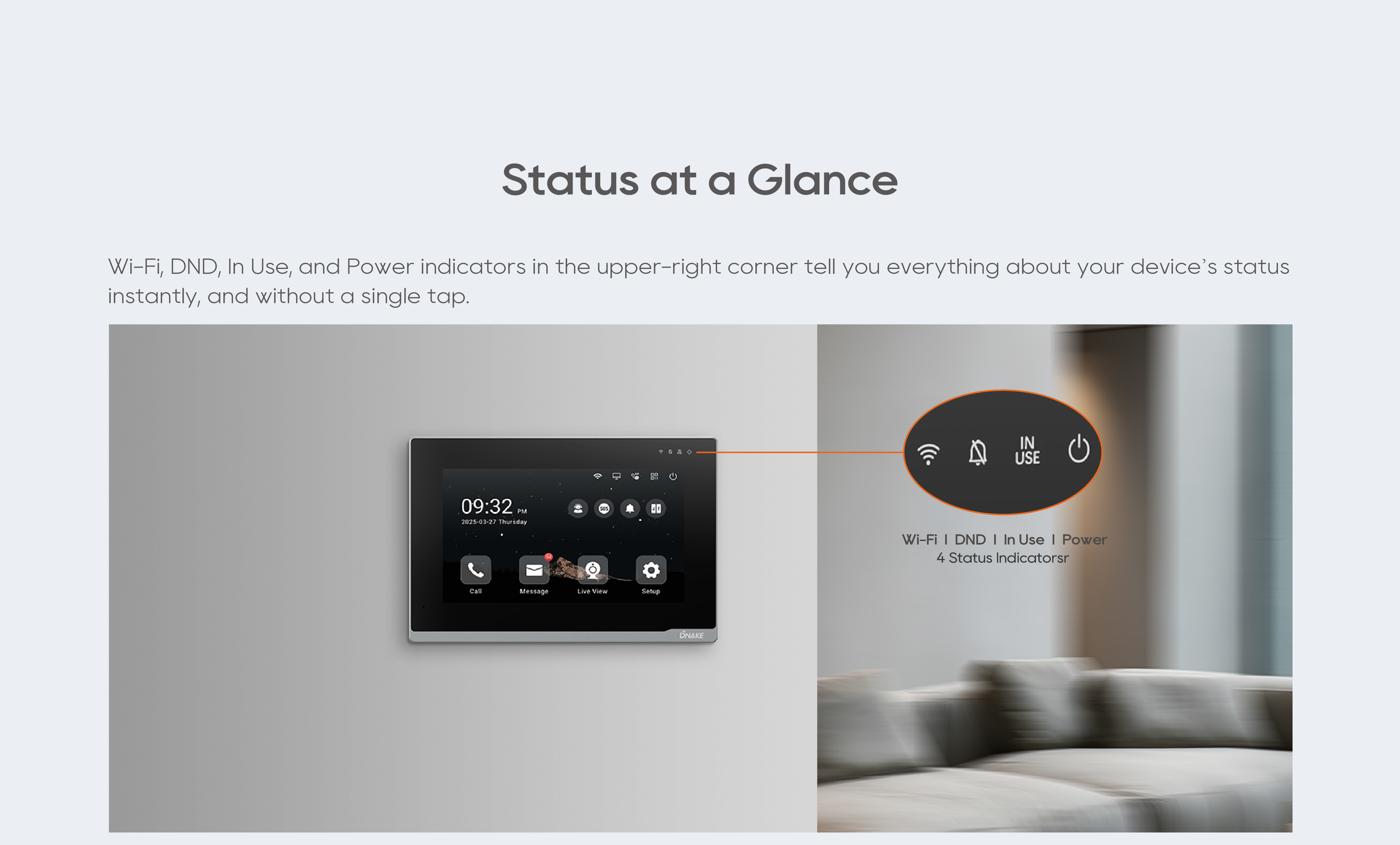

• Instant visual status for power, connectivity, privacy, and call activity — via four indicators

• HD quality audio and video communication

• CCTV integration

• TF card supported

• Quick and simple configuration

Physical Property
System	Linux
RAM	128MB
ROM	128MB
Front Panel	Plastic
Power Supply	BUS IN or DC 12V
Wi-Fi	IEEE 802.b/g/n, 2.4 GHz
Installation	Surface Mounting
Dimension	195 x 130 x 14.5mm
Working Temperature	-10℃ - +55℃
Storage Temperature	-10℃ - +60℃
Working Humidity	10%-90%RH (non-condensing)
Display
Display	7-inch TFT LCD
Screen	Capacitive touch screen
Resolution	1024 x 600
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
2-Wire port	2
TF Card Slot	1
