E216

7” Linux-based Indoor Monitor

904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

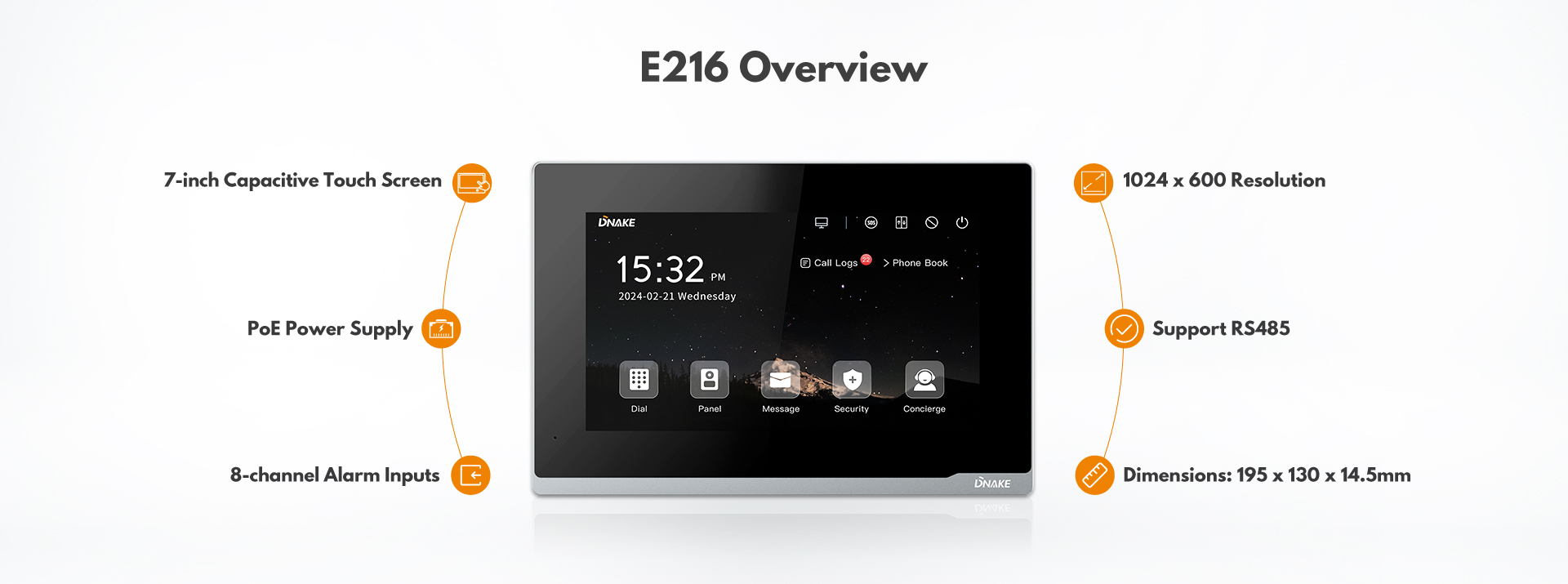

• 7” capacitive  touch screen, 1024 x 600
• Video monitoring of DNAKE IP intercoms & IPC
• HD quality audio and video communication
• 8-ch alarm input, 1 x RS485
• Powered by PoE or power adapter (DC12V/2A)

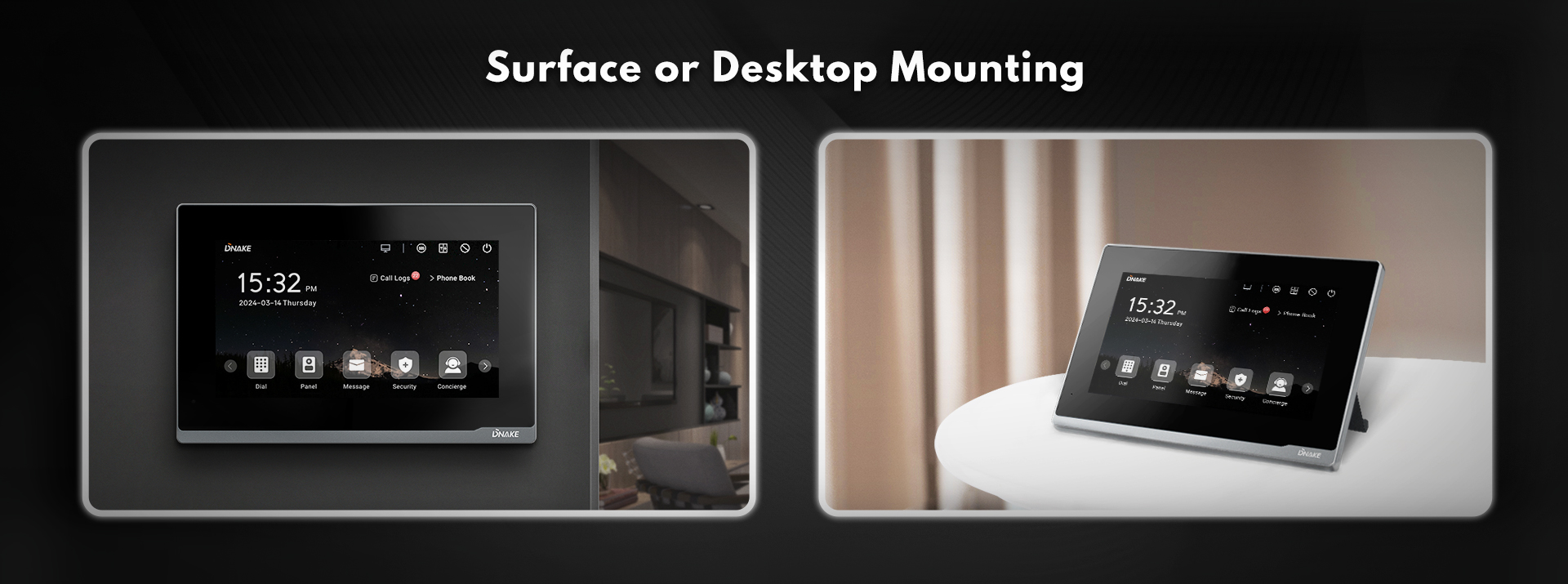

• Support surface & desktop mounting

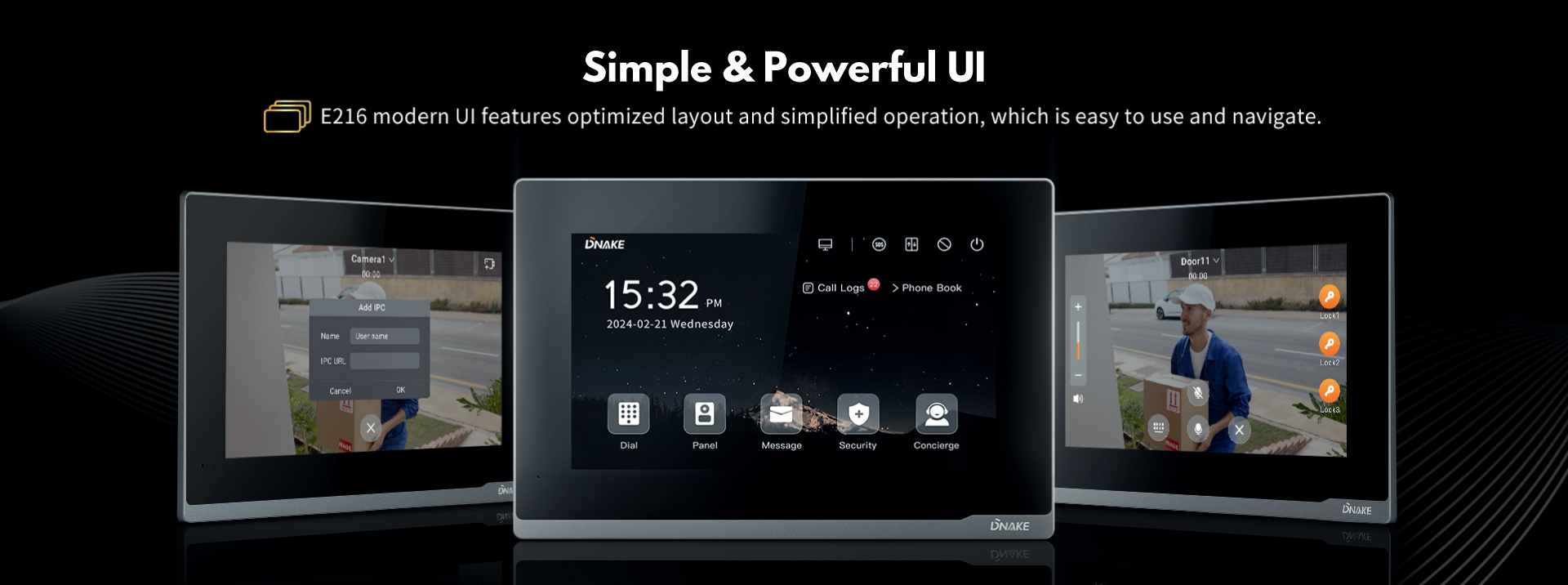

• User-friendly user interface, easy to understand
• Quick installation and remote management via web interface
• Easy integration with elevator control system
 Y-4icon_画板 1 副本 3
NEW COMPATABILITY 2022.07.01-1920x715px E216 NEW DETAIL1 E216 NEW DETAIL2 E216 NEW DETAIL3 E216 NEW DETAIL4

Spec

Download

 Physical Property
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Plastic
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  1.5W
  Rated Power  9W
  Installation  Surface Mounting/Desktop
  Dimension  195x130x14.5mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -10℃ - +60℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  7-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  1024 x 600
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Power Output  1 (12V/100mA)
  Doorbell Input  8 (Use any alarm input port)
  Alarm Input  8
  • Datasheet 904M-S3.pdf
    Download

Get A Quote

Related Products



10.1” Facial Recognition Android Door Phone
902D-B6

10.1” Facial Recognition Android Door Phone

4.3” SIP Video Door Phone
S215

4.3” SIP Video Door Phone

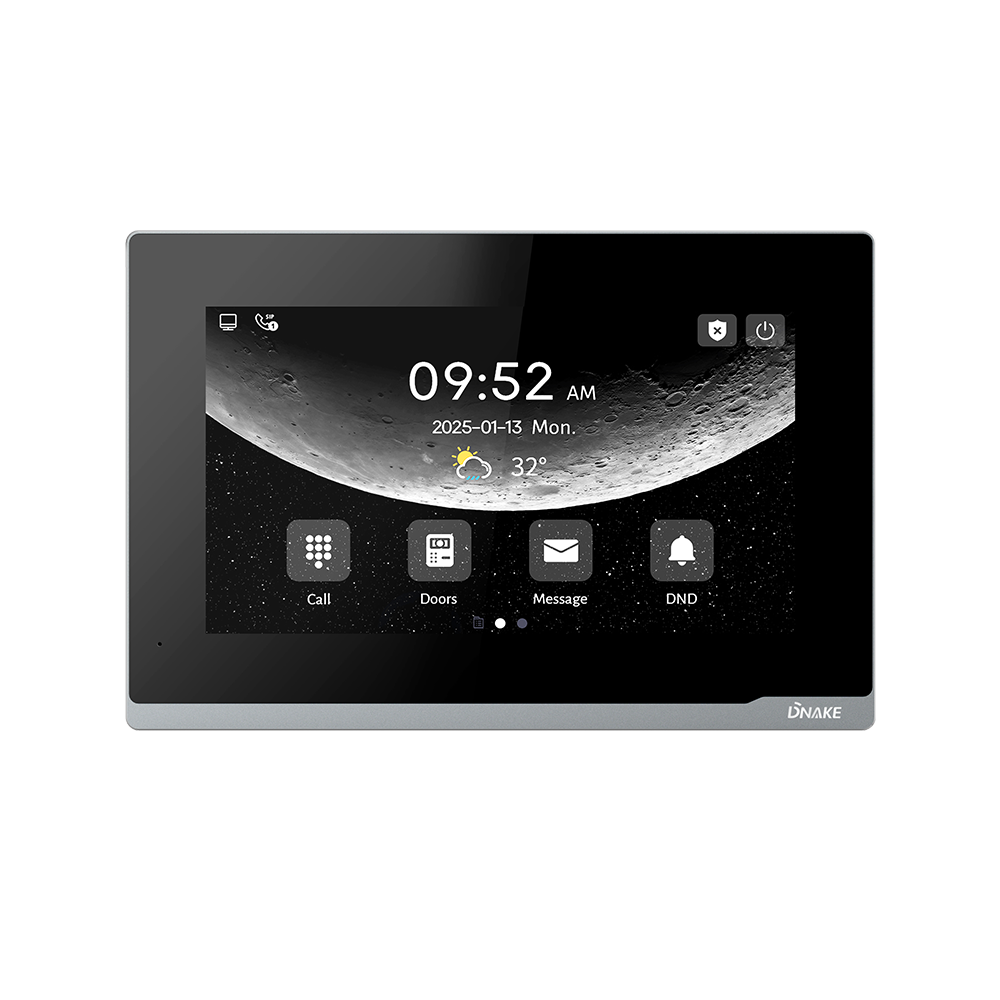

7” Android 10 Indoor Monitor
