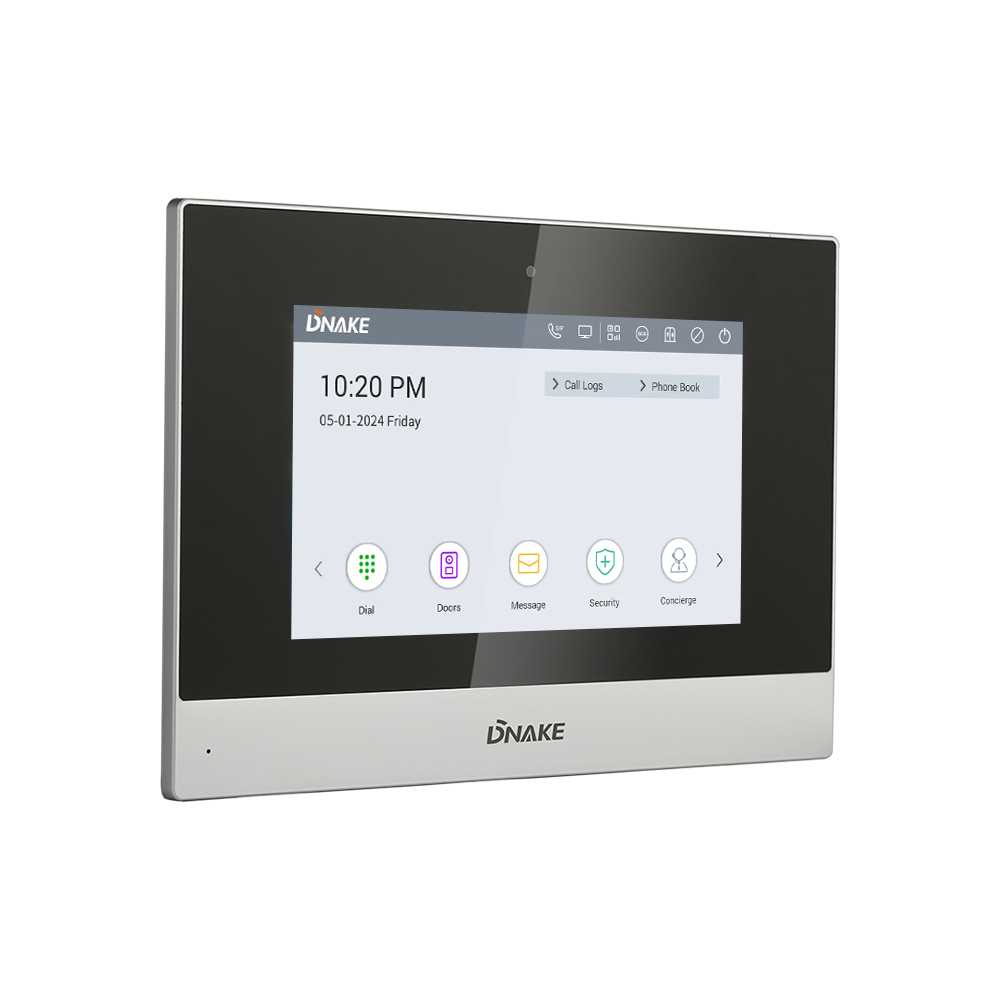

7-inch Indoor Monitor (2-wire Version) Featured Image
7-inch Indoor Monitor (2-wire Version) Featured Image

290M-S8

7-inch Indoor Monitor (2-wire Version)

290M-S8 7″ Linux Indoor Monitor

•7” capacitive touch screen, 800 x 480

•Video monitoring of DNAKE IP intercoms & IPC

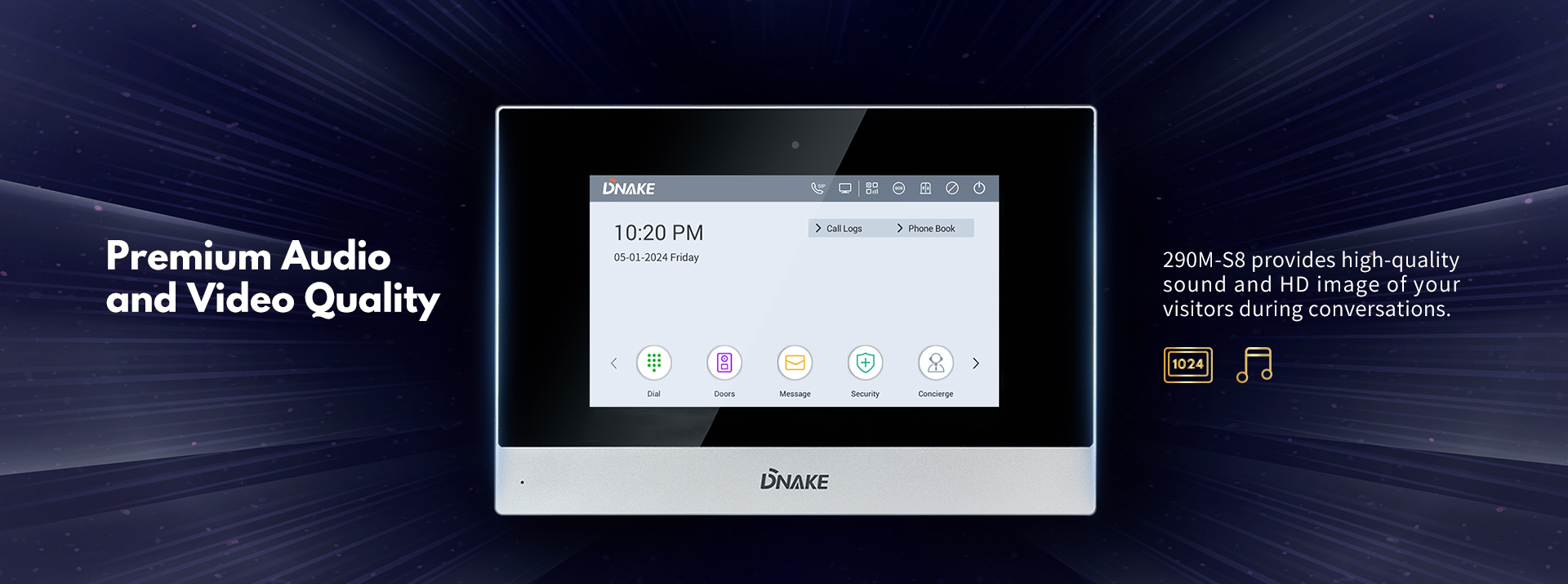

•HD quality audio and video communication

•8-ch alarm input, 1xRS485

• 48V DC power supply

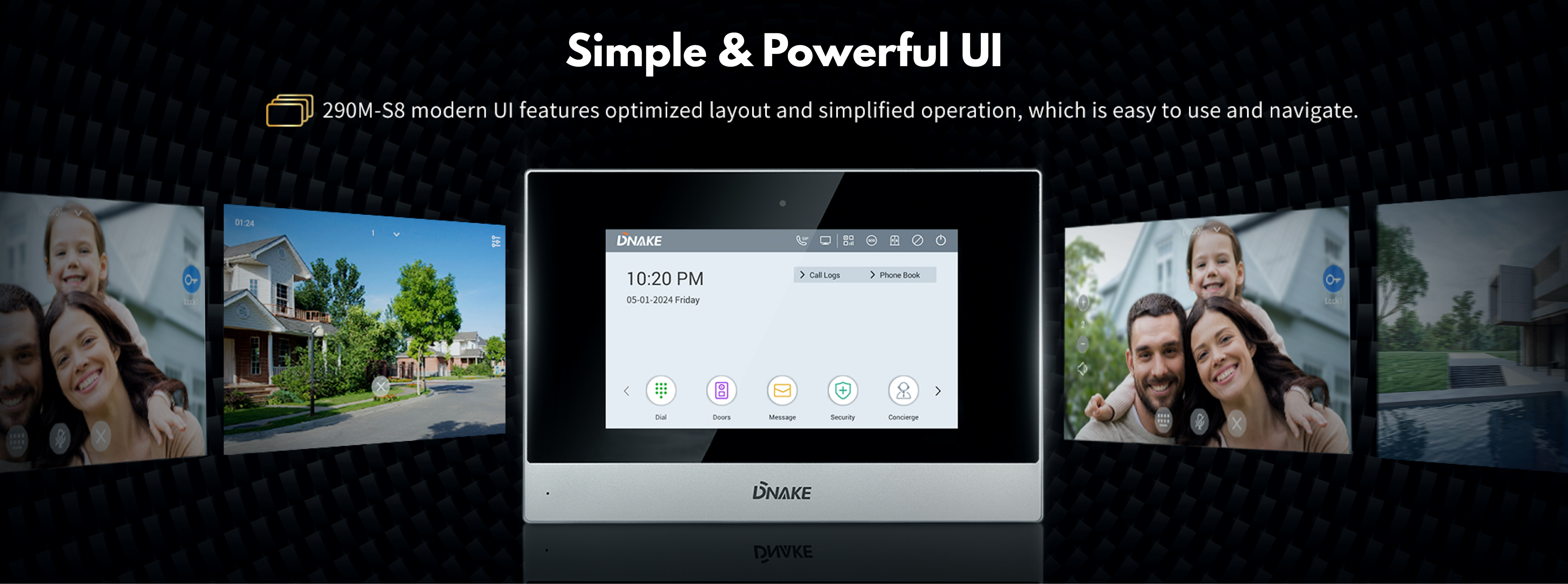

•User friendly user interface, easy to understand

•Quick installation and remote management via web interface

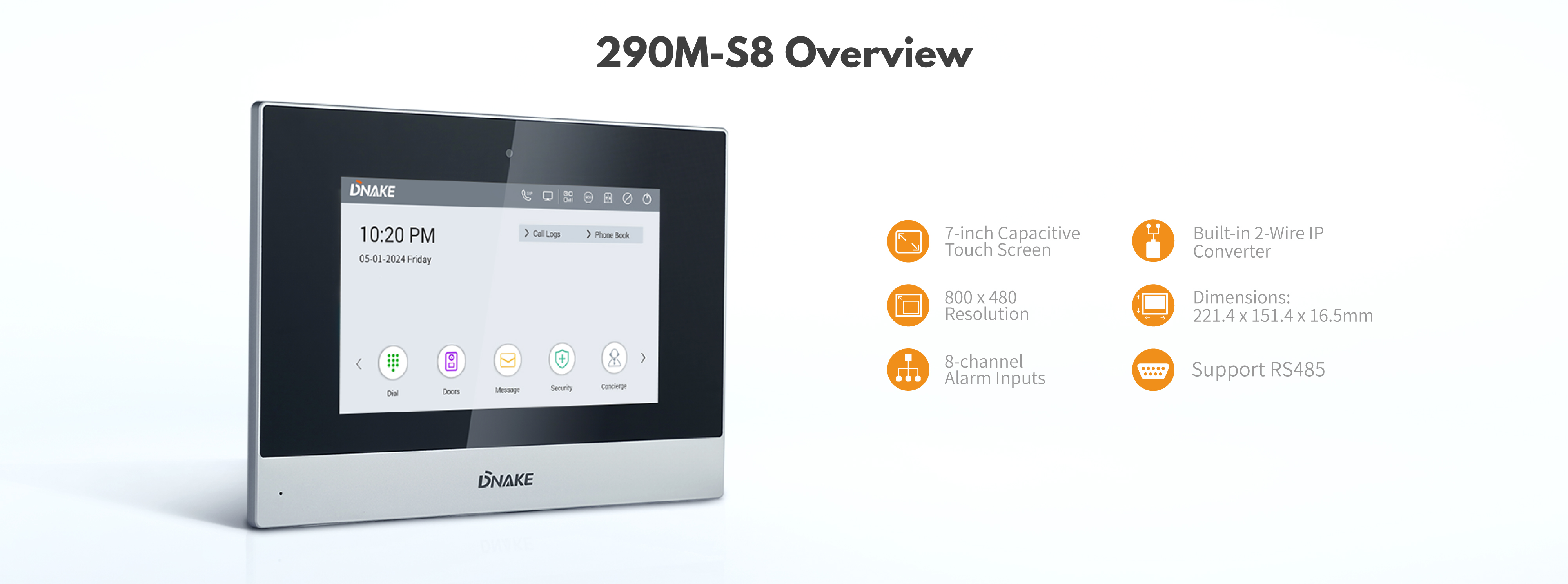

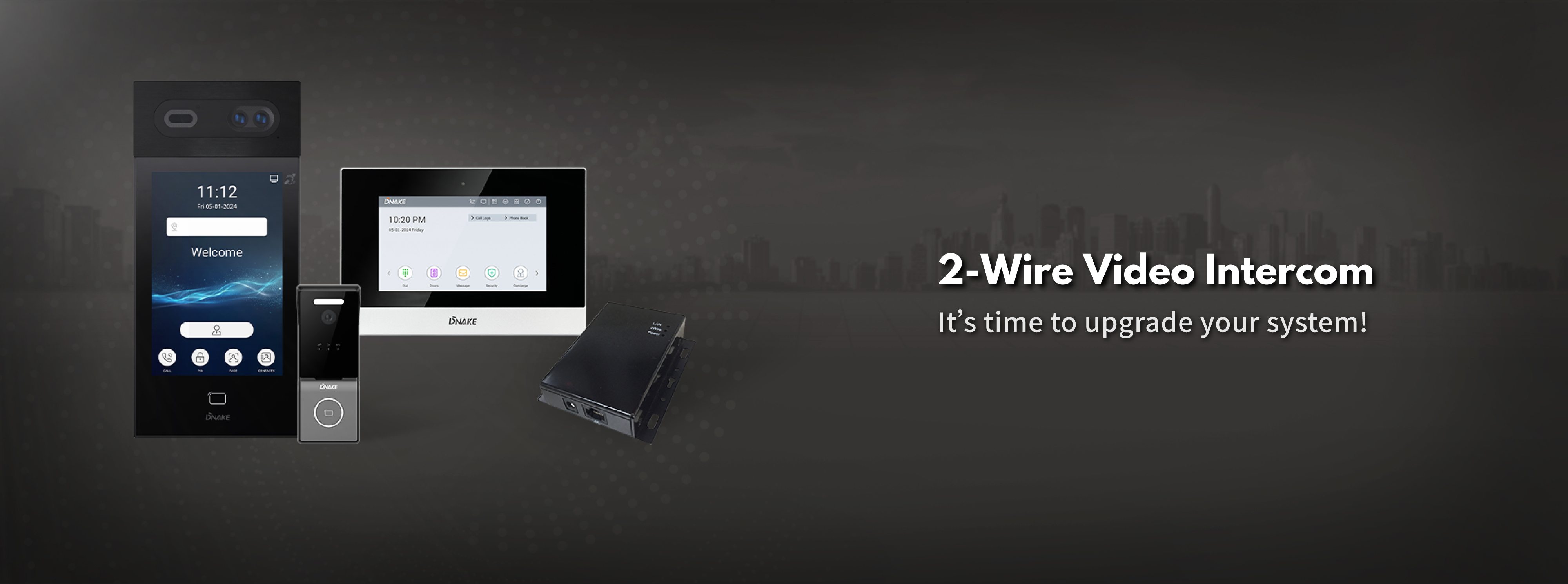

290M-S8 Detail1(2022.5.17) 290M-S8 Detail3(2022.5.17) 290M-S8 Detail2(2022.5.17) 2-Wire IP Video Intercom Detail 2022.5.17

Spec

Download

 Physical Property
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Plastic
  Power Supply  Two wire supply
  Standby Power  1.5W
  Rated Power  9W
  Installation  Surface mounting
  Dimension  221.4 x 151.4 x 16.5mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -10℃ - +60℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  7-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  800 x 480
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  2-wire Port
  RS485 Port  1
  Power Output  1 (12V/100mA)
  Doorbell Input  8 (Use any alarm input port)
  Alarm Input  8
  • Datasheet 904M-S3.pdf
    Download
