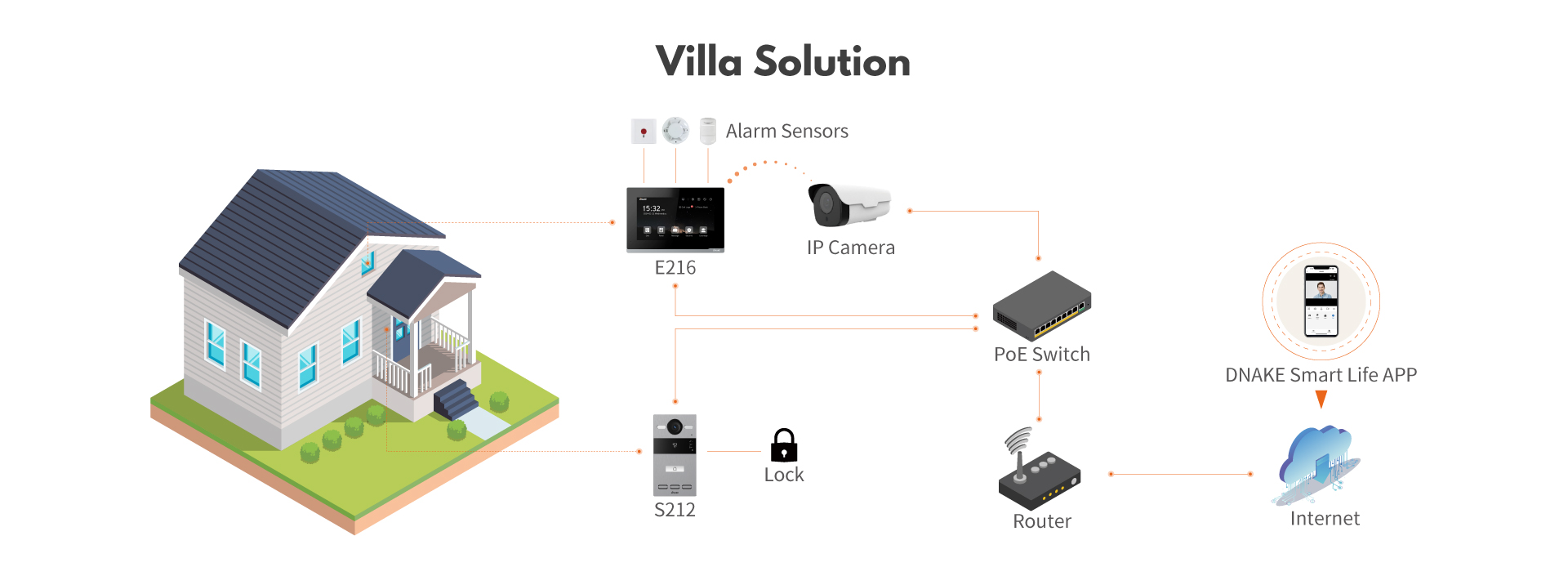

| Physical Property of Door Station S212 | |
| System | Linux |
| RAM | 64MB |
| ROM | 128MB |
| Front Panel | Aluminum |
| Power Supply | PoE (802.3af) or DC 12V/2A |
| Camera | 2MP, CMOS |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 110°(H) / 60°(V) / 125°(D) |
| Door Entry | IC (13.56MHz) & ID (125kHz) card, NFC |
| IP/IK Rating | IP65/IK08 |
| Installation | Surface Mounting |
| Dimension | 168 x 88 x 34 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Physical Property of Indoor Monitor E216 |
|
| System | Linux |
| Display | 7-inch TFT LCD |
| Screen | Capacitive touch screen |
| Resolution | 1024 x 600 |
| RAM | 64MB |
| ROM | 128MB |
| Front Panel | Plastic |
| Power Supply | PoE (802.3af) or DC 12V/2A |
| Installation | Surface Mounting/Desktop |
| Dimension | 195 x 130 x 14.5 mm |
| Working Temperature | -10℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF(for Door Station), SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port of S213K | |
| Ethernet | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 | 1 |
| Relay Out | 2 |
| Reset Button | 1 |
| Input | 2 |
| Port of E216 | |
| Ethernet | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 | 1 |
| Doorbell Input | 8 |
| Alarm Input | 8 |
-
