280M-S3

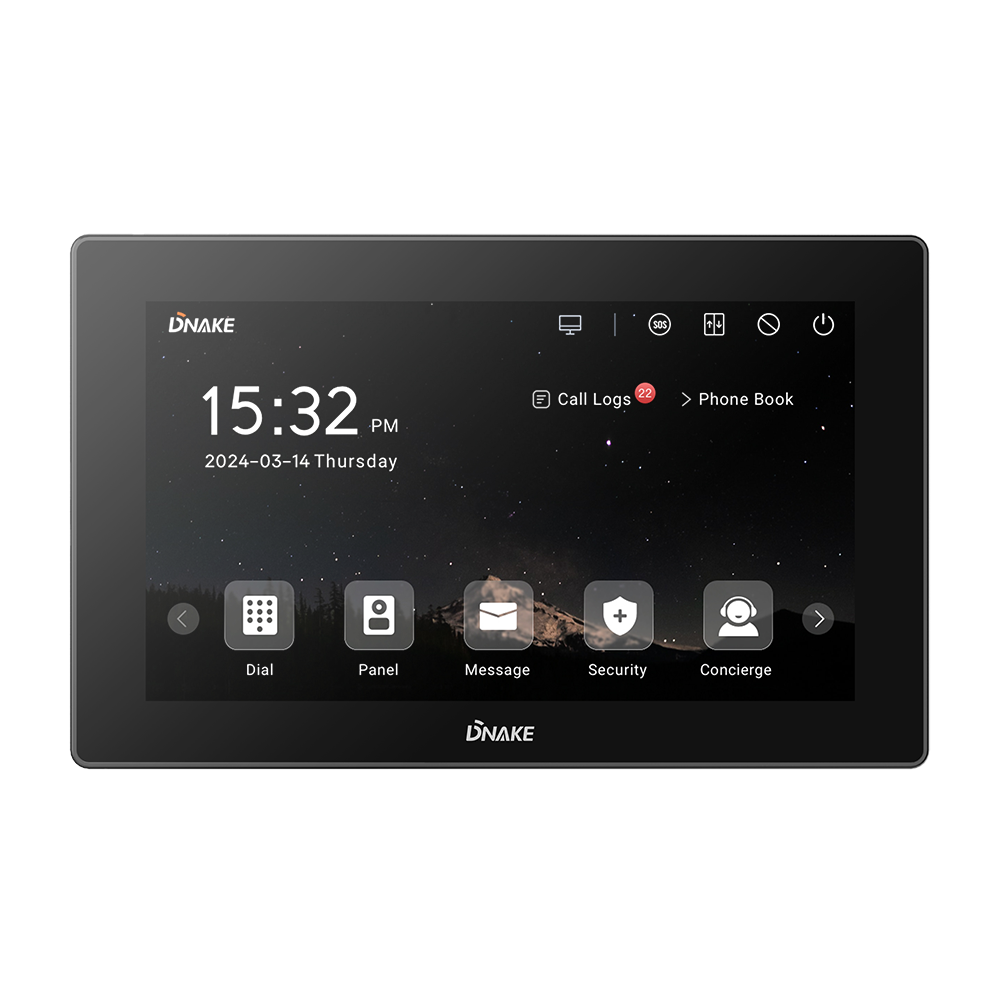

10.1” Linux-based Indoor Monitor

280M-S3 Linux 10.1″ Touch Screen SIP2.0 Indoor monitor

• 10.1” capacitive touch screen, 1024 x 600

• Support monitoring 8 IP cameras
• HD quality audio and video communication
• 8-ch alarm inputs, 1 x RS485
• Powered by PoE or power adapter (DC12V/2A)
• User-friendly user interface, easy to understand
• Quick installation and remote management via web interface
• Easy integration with elevator control system
PoE
280M-S3 Detail Page 1 280M-S3 Detail Page_2 280M-S3 Detail Page_3 280M-S3 Detail Page_4

Spec

Download

Product Tags

 General
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Plastic
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  1.5W
  Rated Power  9W
  Installation  Surface mounting
  Dimension  270 x 168 x 15mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  10.1-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  1024 x 600
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Power Output  1 (12VA/100mA)
  Doorbell Input  8 (Use any alarm input port)
  Alarm Input  8
  • Datasheet 904M-S3.pdf
