    SH-KAWA-PWS001

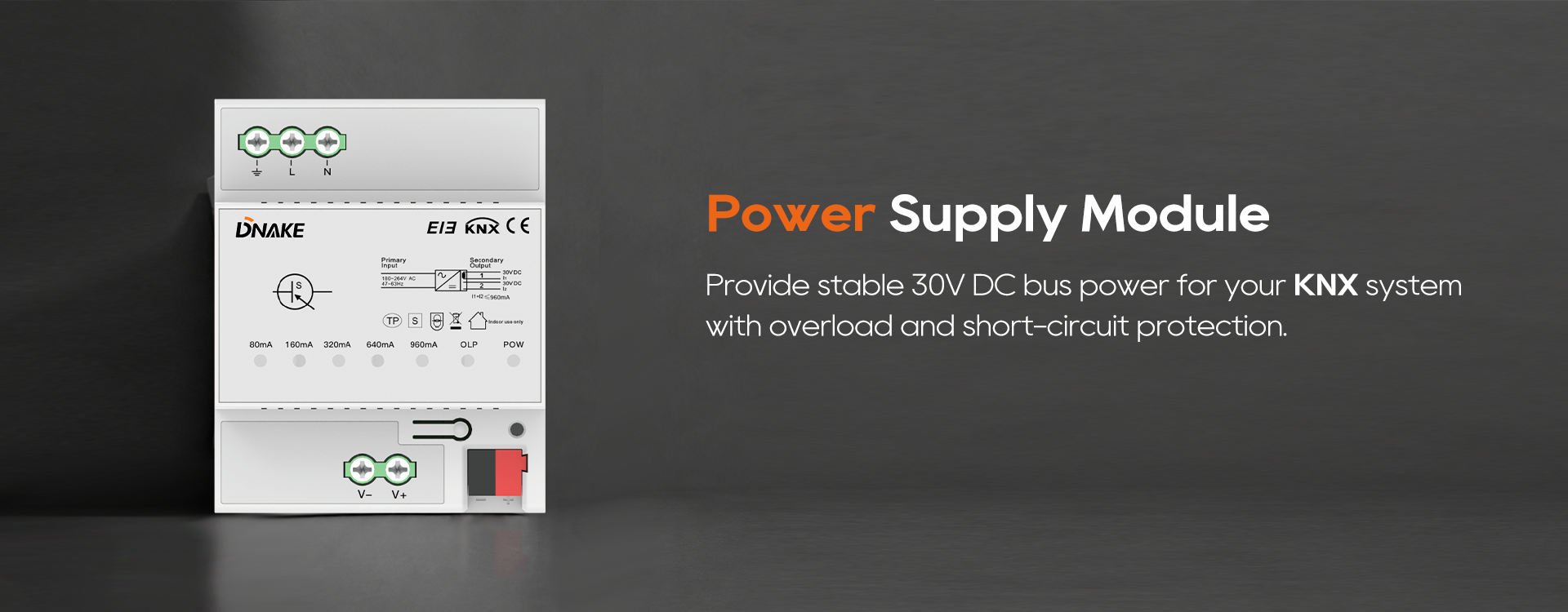

    Power Supply Module (960mA)

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

    • 960mA output for KNX/EIB bus power
    • Regulated 30V DC bus voltage for stable system operation
    • Built‑in impedance matching for reliable KNX signal transmission
    • Overload and short‑circuit protection for enhanced safety
    • 30V auxiliary power output for additional devices
    • Reset button for quick system recovery
    • Status LEDs for clear power and operation indication
    knx icon-2026.6.4
    Power Supply Module (960mA) Detail NEW

    Spec

    Download

    Product Tags

     Technical Details
      Connections  EIB/KNX
      Power Supply  180-264V AC (50Hz-60Hz)
      Output Voltage  30VDC
      Output Current  960mA
      Working Temperature  -5℃ - +45℃
      Storage Temperature  -25℃ to +55℃
      Working Humidity  <93%RH (Non-condensing)
      Dimension  72 x 90 x 64 mm
      Installation  35mm DIN Rail Mounting
    • Datasheet 904M-S3.pdf
      Download
