    SH-KAW10-UIC601

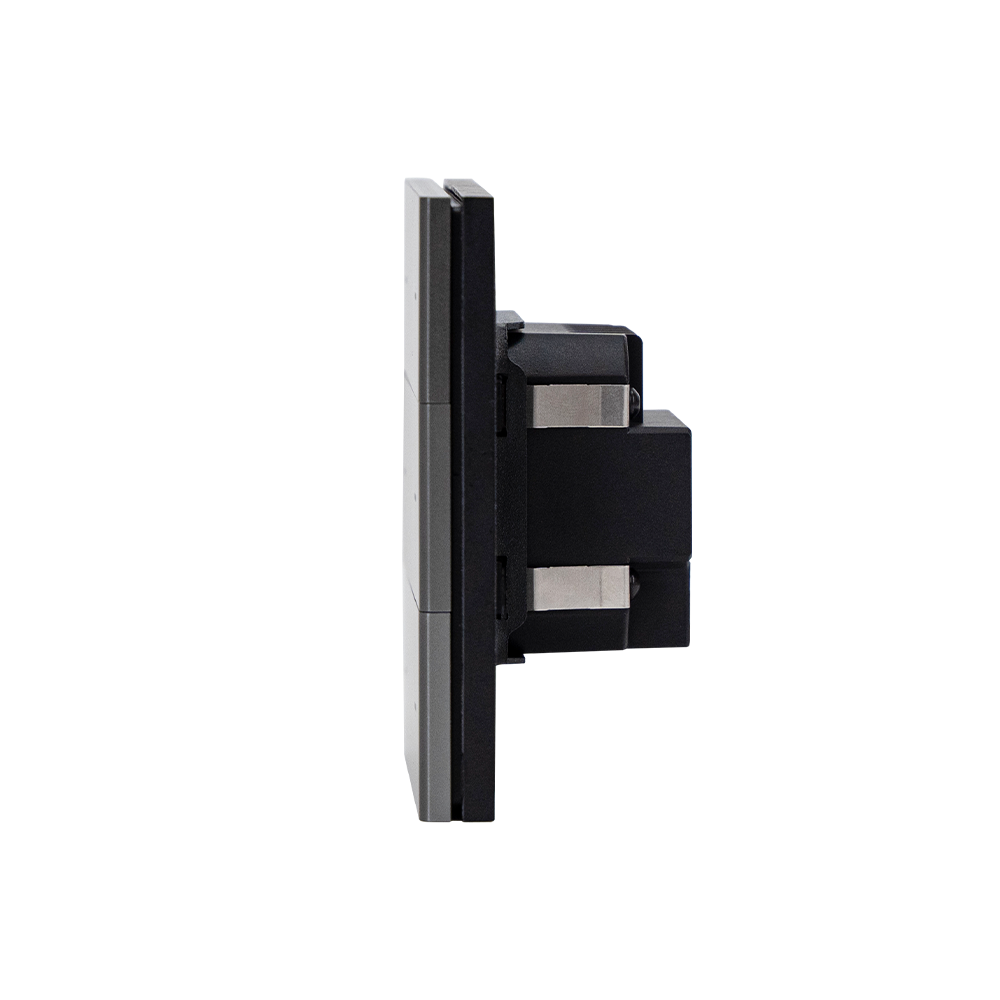

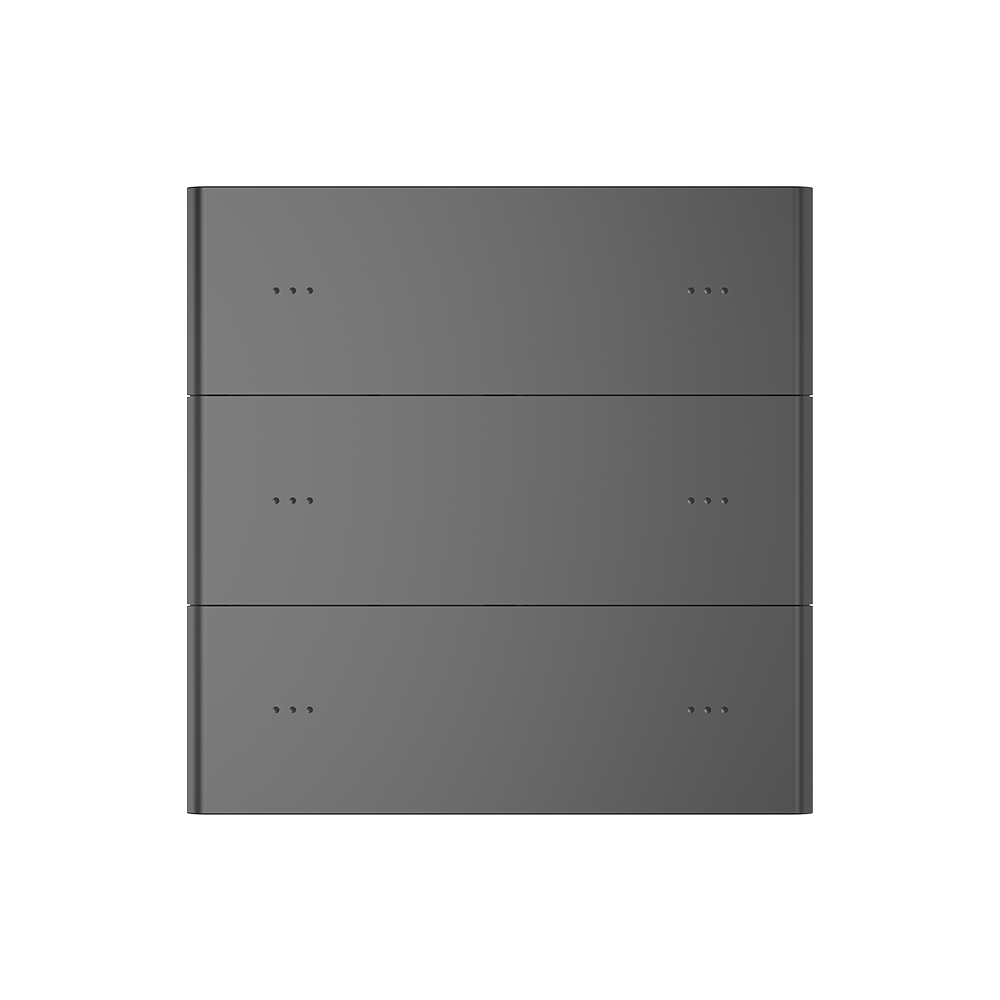

    3-Gang 6-Button Push Button Panel

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

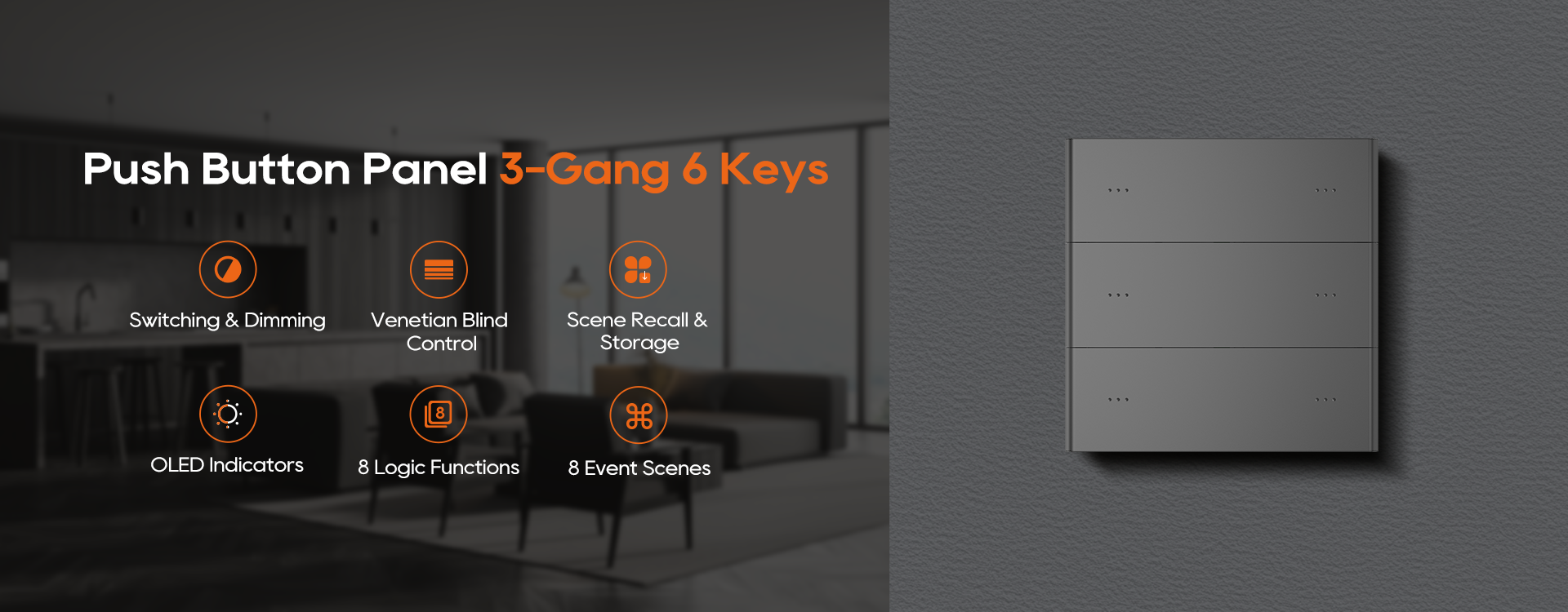

    • 6-button design for intuitive control
    • Multi-functional buttons for lighting switch, dimming, shutter, and scene control
    • KNX/EIB bus communication for intelligent building automation
    • LED indication for clear status feedback
    • 60-type European electrician backbox installation for easy setup
    • Delay sending function for switch value, relative dimming value, and byte sending value
    knx icon-2026.6.4

    Spec

    Download

    Product Tags

     Technical Details
      Connections  EIB/KNX
      Power Supply  DC 21V-30V
      Bus Current  ≤6mA
      Bus Consumption
     <185mW
      Auxiliary Voltage  DC 21V-30V
      Auxiliary Current (30V)  <23mA
      Auxiliary Consumption  <690mW
      Working Temperature  -5℃ - +45℃
      Storage Temperature  -25℃ to +55℃
      Working Humidity  <93%RH (Non-condensing)
      Dimension  86 x 86 x 38.2 mm
      Installation  Flush Mounting
      Flush Mounted Module  EU/UK/GB Standard
    • Datasheet 904M-S3.pdf
      Download
