    SH-KAWA-UIC601

    6-Channel Universal Interface

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

    • 6-channel dry contact input for switch, dimming, and shutter control functions
    • Scene recall and save function for one-tap scene activation
    • Fixed value sending function for preset parameter control
    • 6-channel LED status indication for clear visual feedback
    • Flexible input extension unit for KNX bus systems
    • Ideal for building and home intelligent control systems
    knx icon-2026.6.4

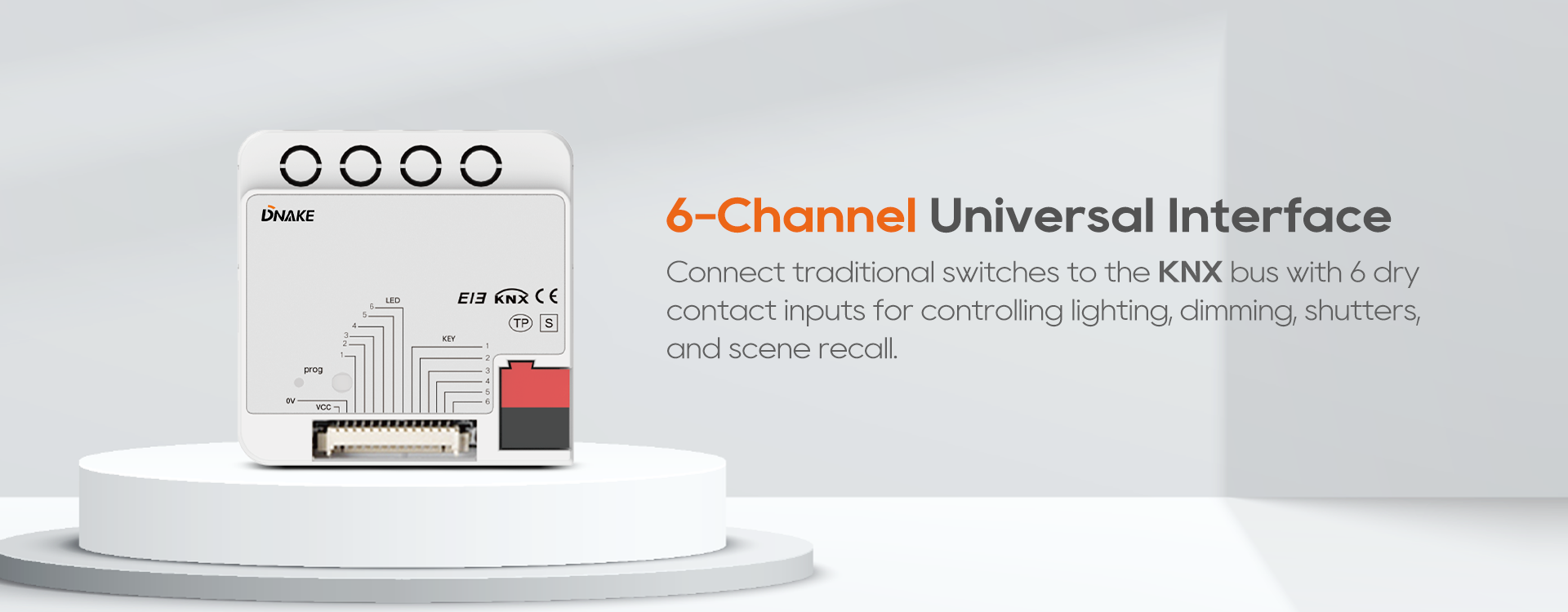

    6-Channel Universal Interface Detail

    Spec

    Download

    Product Tags

     Technical Details
      Connection  KNX
      Power Supply  DC 21V-30V
      Dry Contact Input  6 Inputs
      Bus Current  <12mA
      Bus Consumption  <360mW
      Working Temperature  -5℃ - +45℃
      Storage Temperature  -25℃ to +55℃
      Working Humidity  <93%RH (Non-condensing)
      Dimension  49.3 x 49.3 x 22.8 mm
      Installation  Flush Mounting
      Flush Mounting Box  EU/UK/GB Standard
    • Datasheet 904M-S3.pdf
      Download
