SH-KAWC-GTW005

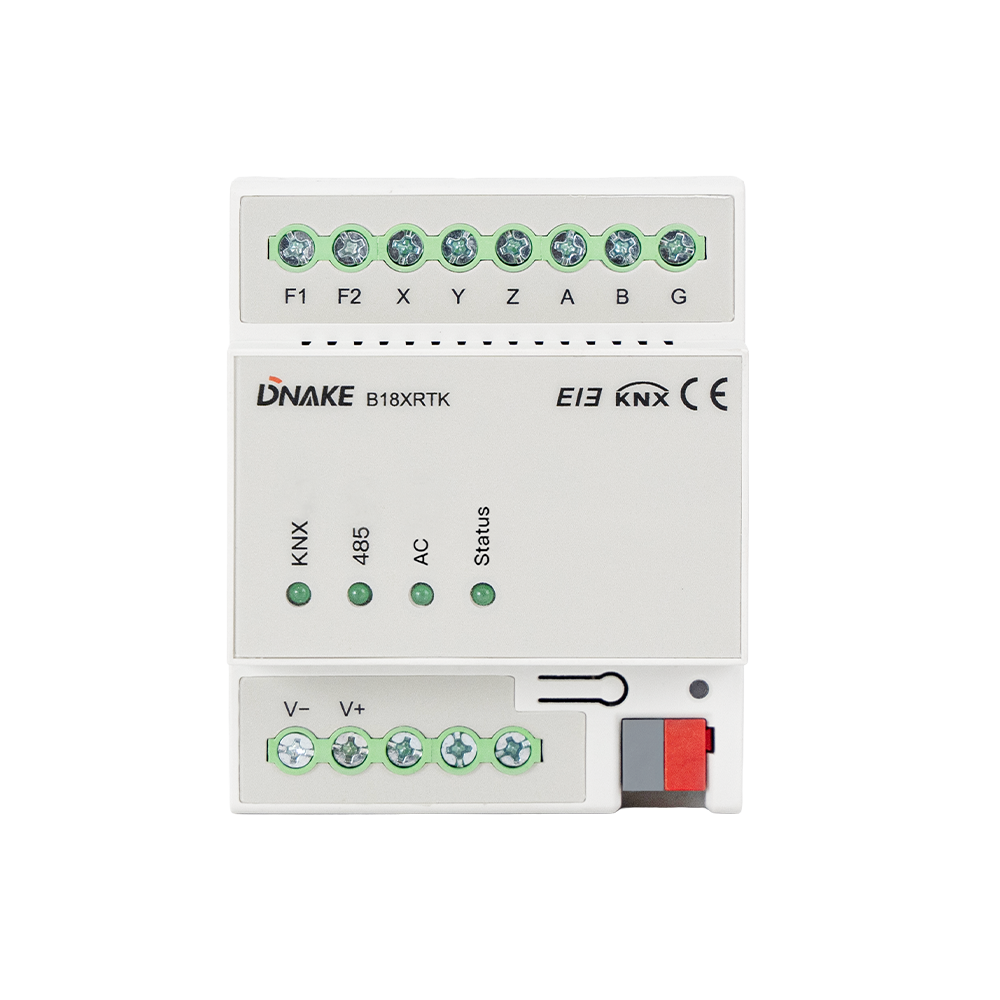

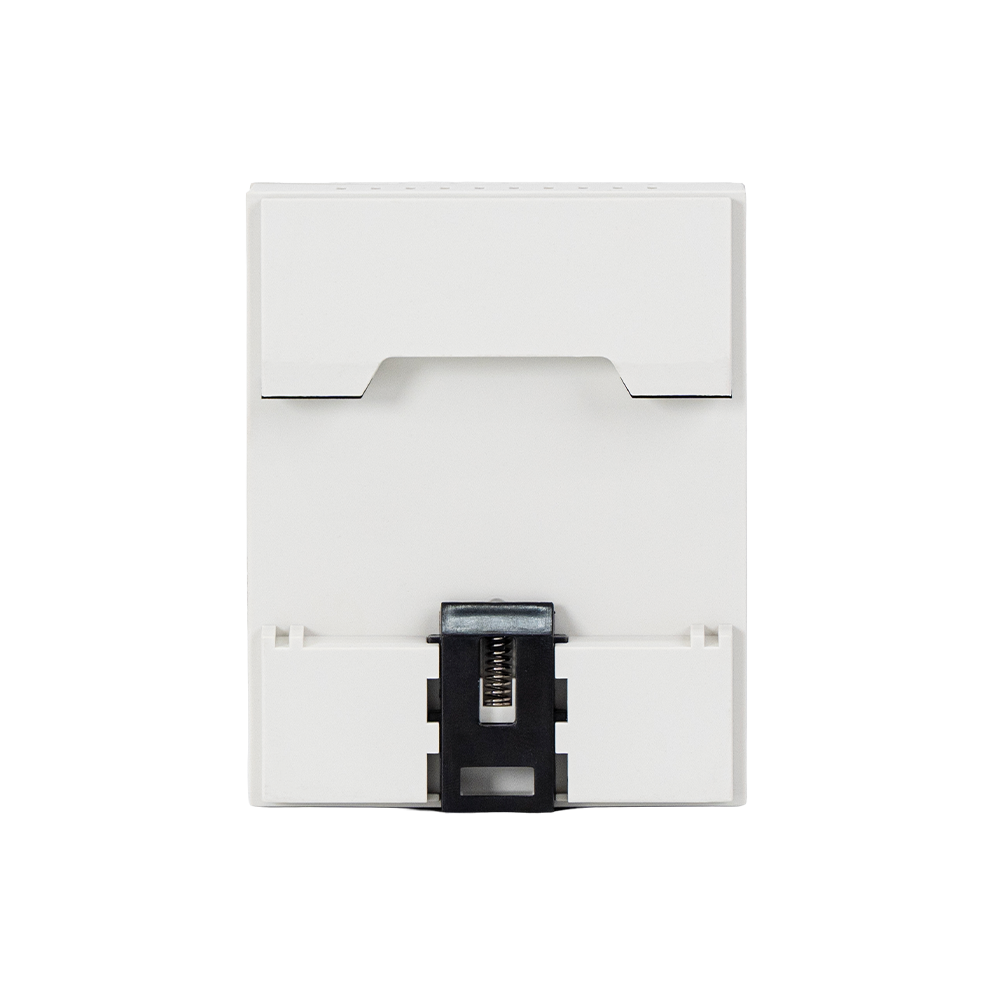

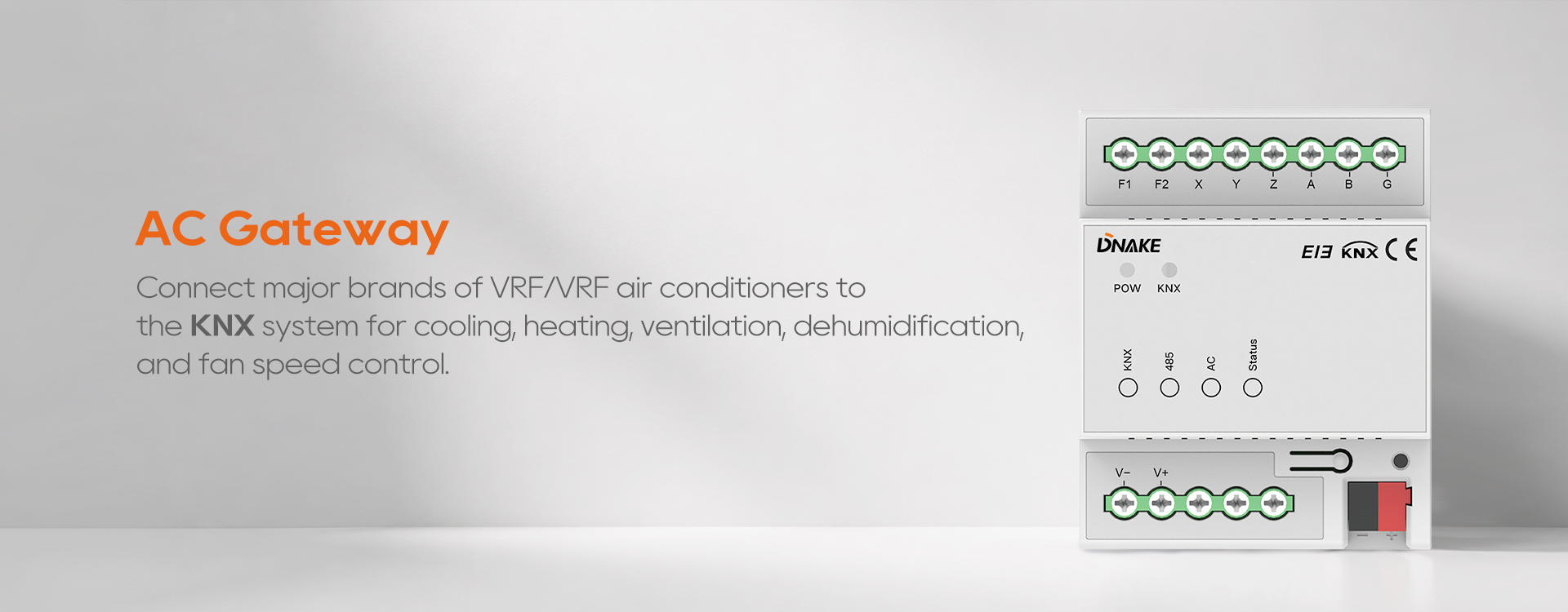

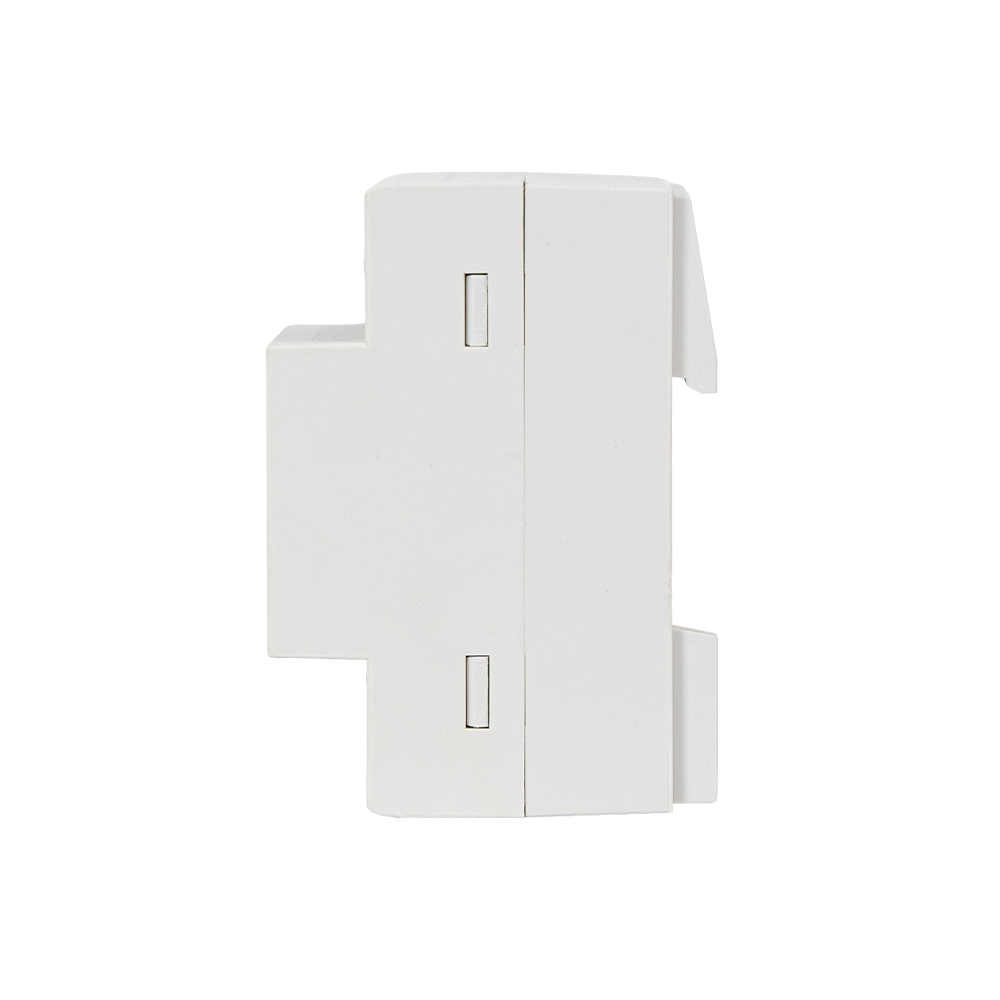

AC Gateway

• Connect major brands of VRV/VRF air conditioning systems to KNX/EIB bus

• Integrate with smart home centralized control systems or BMS (Building Management Systems)

• Full HVAC control: cooling, heating, ventilation, dehumidification, and fan speed adjustment

• LED status indicators for system monitoring

• DIN rail mounting for quick and easy installation

knx icon-2026.6.4

Spec

Download

Product Tags

Technical Details
Connection	KNX
Power Supply	12~24VDC
Bus Current	≤20mA
Bus Consumption	<900mW
Working Temperature	-5℃ - +45℃
Storage Temperature	-25℃ to +55℃
Working Humidity	<93%RH (Non-condensing)
Dimension	72 x 90 x 64 mm
Installation	35mm DIN Rail Mounting

Datasheet 904M-S3.pdf

Download

DNAKE AC Gateway-datasheet V1.1

Download

REQUEST A QUOTE

Please enable JavaScript in your browser to complete this form.

Full Name

Business Email

Phone/WhatsApp

Country/Region

Company Name

Company Website

What best describes you?

Product of Interest

Layout we 发送页面

How did you hear about DNAKE?

How can we help you? *

Related Products

6-Channel Universal Interface

6-Channel Universal Interface

12-Channel 16A Switch Module

12-Channel 16A Switch Module

4-Gang 8-Button Push Button Panel with Built-in 2 Relays

SH-KAW10-UIC802

4-Gang 8-Button Push Button Panel with Built-in 2 Relays

2-Channel Switch Module

2-Channel Switch Module

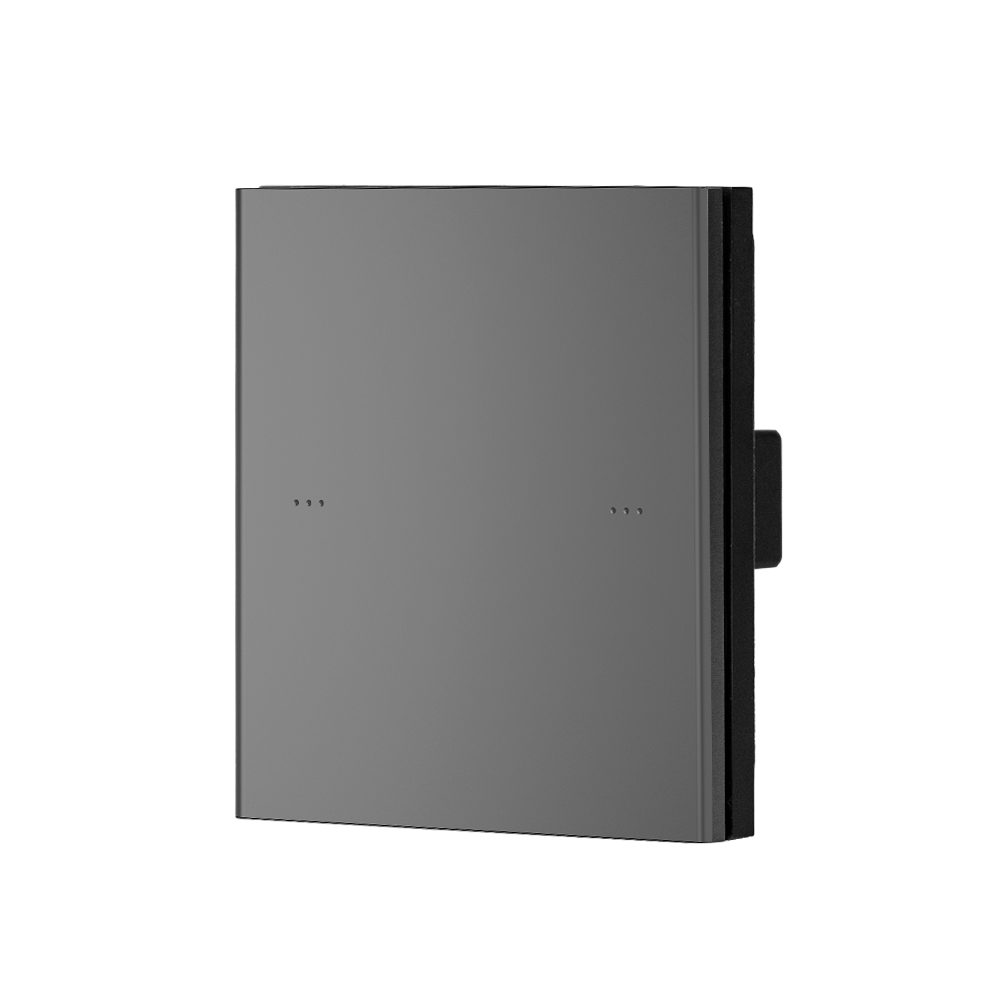

1-Gang 2-Button Push Button Panel
