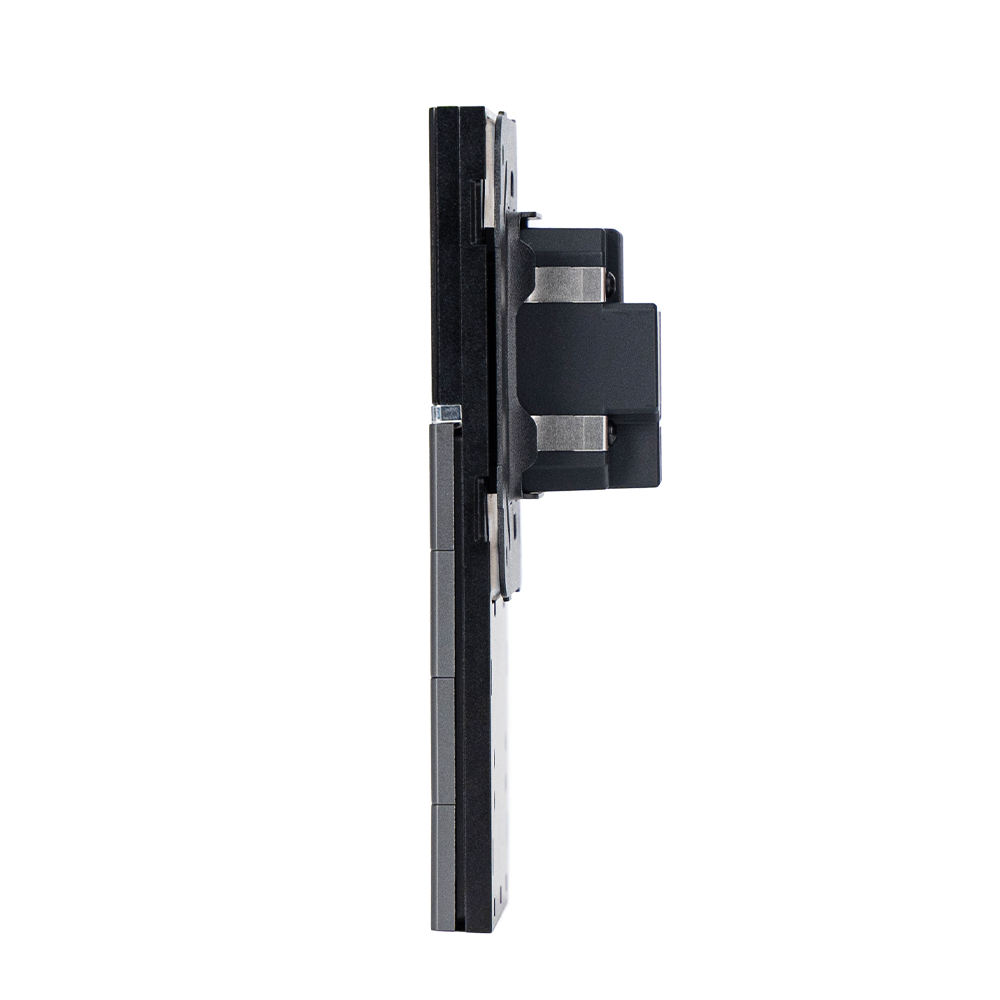

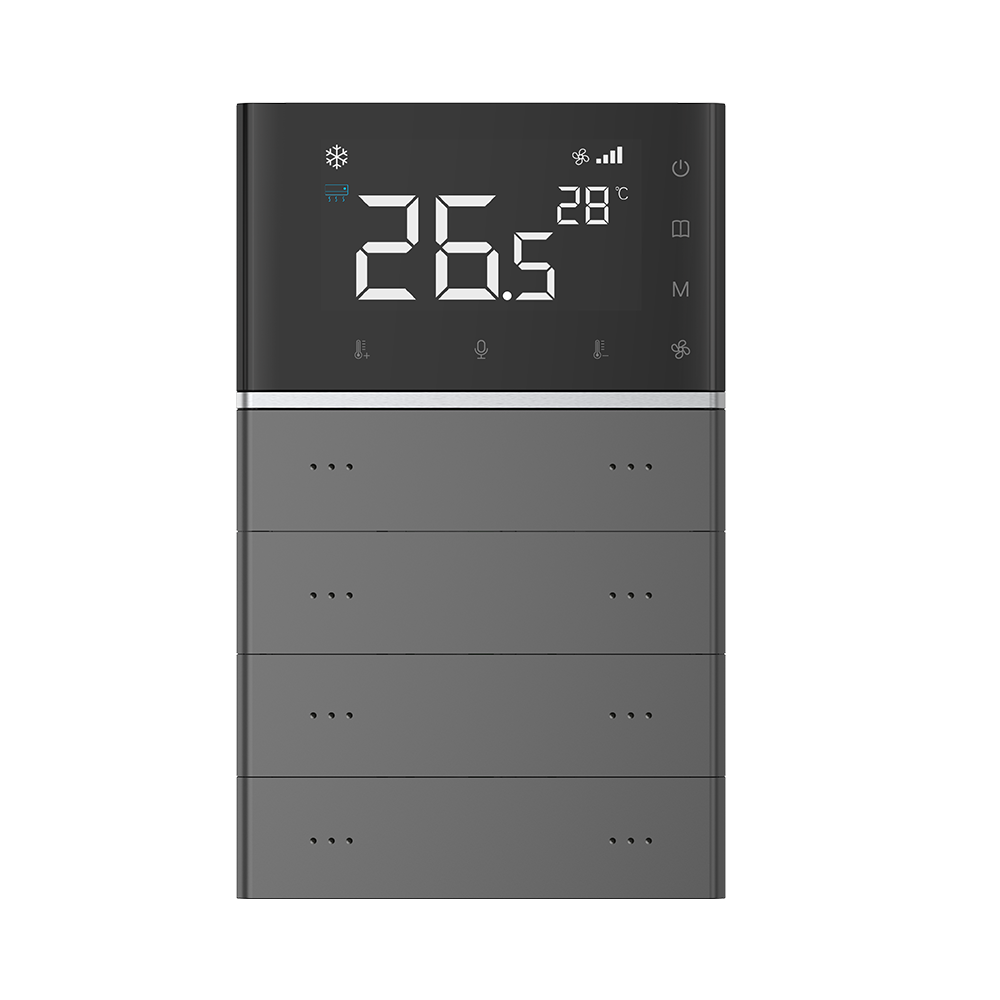

    • 3-in-1 8-Button Thermostat Panel Featured Image
    3-in-1 8-Button Thermostat Panel Featured Image
    3-in-1 8-Button Thermostat Panel Featured Image

    SH-KAW10-ICP002

    3-in-1 8-Button Thermostat Panel

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

    • 8-button configuration for flexible control options
    • Support multiple modes for air conditioning, heating, and ventilation via KNX/EIB bus
    • Built-in proximity, temperature, and humidity sensors
    • Multi-functional buttons for lighting, curtain, dimming, and scene control
    • 8 logic functions and 8 event groups for custom automation rules
    • Customizable interactive display content on the temperature control screen
    • Ideal for commercial and residential temperature control applications
    knx icon-2026.6.4
    3-in-1 8-button Thermostat Panel Detail1 3-in-1 8-button Thermostat Panel Detail2

    Spec

    Download

    Product Tags

     Technical Details
      Connections  EIB/KNX
      Power Supply  DC 21V-30V
      Bus Current  <12mA
      Bus Consumption
     <360mW
      Auxiliary Voltage  DC 21V-30V
      Auxiliary Current   <33mA (30VDC)；

     <45mA (24VDC)
      Auxiliary Consumption  <1W
      Temperature Setting Range  16~30℃
      Temperature Display Accuracy  ±0.1℃
      Humidity Display Range   0~100％
      Working Temperature  -5℃ - +45℃
      Storage Temperature  -25℃ to +55℃
      Working Humidity  <93%RH (Non-condensing)
      Dimension  86 x 136.9 x 38.2 mm
      Installation  Flush Mounting
      Flush Mounted Module  EU/UK Standard
    • Datasheet 904M-S3.pdf
      Download

    Get A Quote

    Related Products



    6-Channel Universal Interface
    SH-KAWA-UIC601

    6-Channel Universal Interface

    3-Gang 6-Button Push Button Panel with Built-in 2 Relays
    SH-KAW10-UIC602

    3-Gang 6-Button Push Button Panel with Built-in 2 Relays

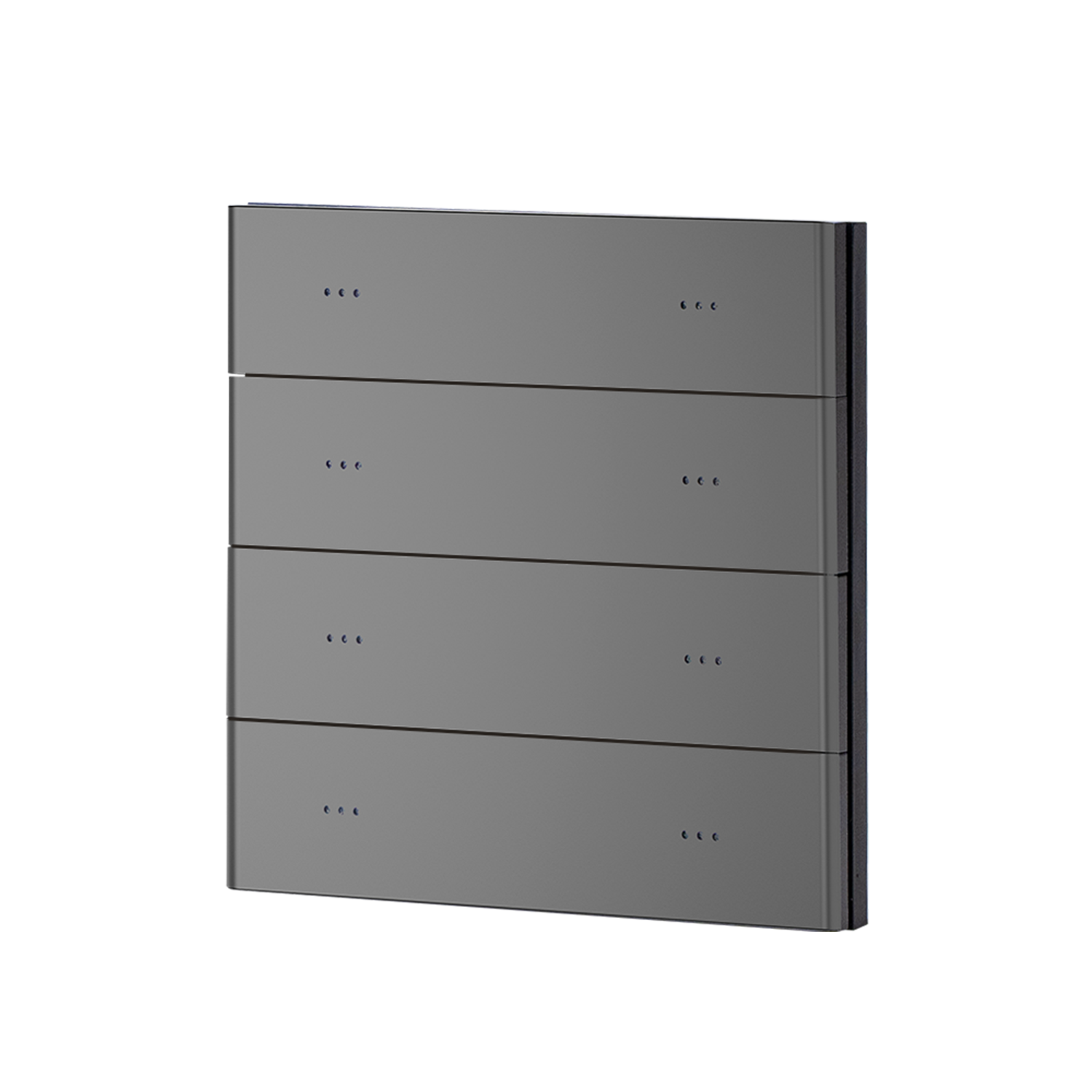

    4-Gang 8-Button Push Button Panel with Built-in 2 Relays
