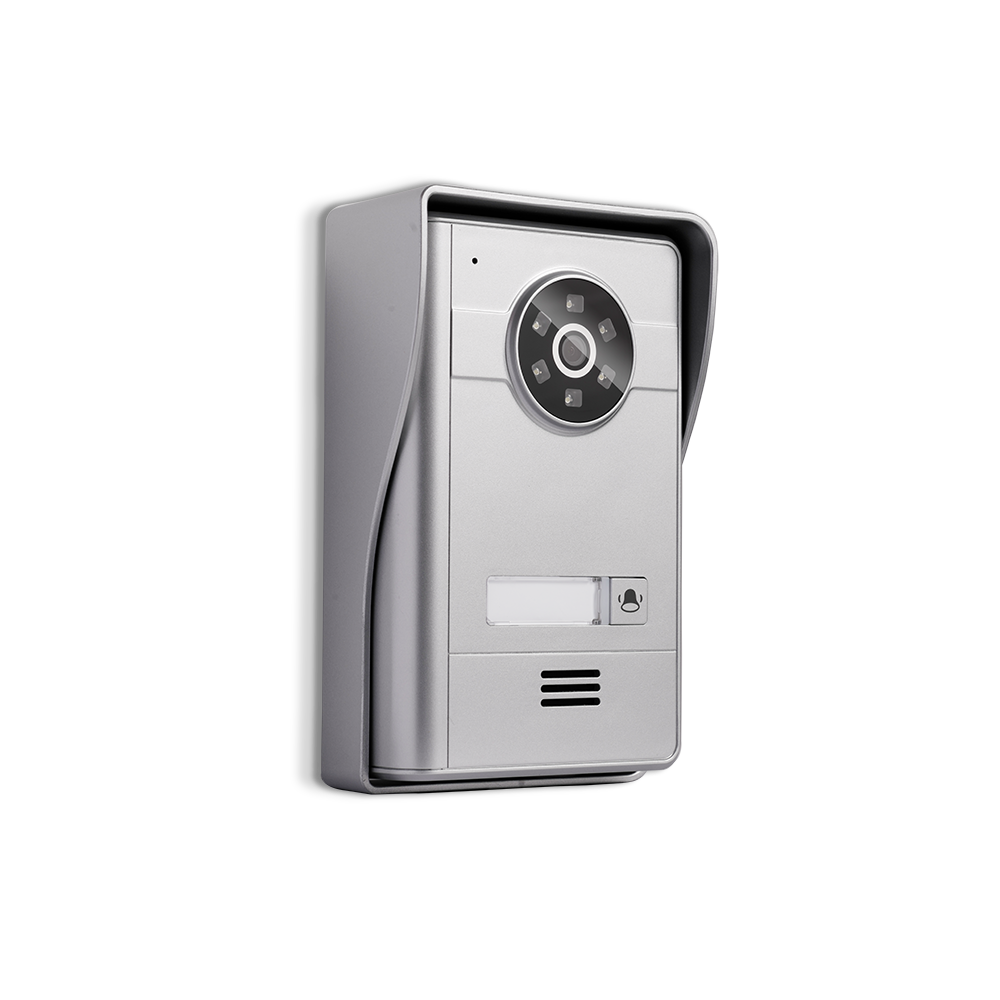

304D-R7 2.4GHz IP55 Waterproof Wireless Door Camera

A video doorbell is one must-have security equipment to keep your house protected. 304D-R7 doorbell offers a variety of functions, such as motion detection, long-distance transmission, and real-time monitoring. In addition, there is one nameplate that can be set as room No. or tenant’s name, etc.
1.  PIR Motion detection offers you a better home security solution. There are motion alerts even if the strange visitor doesn't ring the doorbell.
2. When the visitor presses the call button, the doorbell will capture the visitor's image and save the call automatically.
3. Night vision LED light enables you to identify the visitors and capture images in a low-illumination environment, even at night.
4. It supports up to 500M long transmission distance in an open area for video and voice communication.
5. No need to worry about poor Wi-Fi signal problems.
6. Two door cameras can be installed in the front door and back door, and one door camera can come with two indoor units that can be 2.4'' handsets or 4.3'' monitors.
7. Real-time monitoring lets you never miss any visiting or delivery.
8. Tamper alarm and IP65 waterproof design ensures normal operation in any case.
9.  It can be powered by two C-size batteries or an external power source.
10. With an optional wedge-shaped bracket, the doorbell can be installed in any corner.


 Physical Property
 CPU  N32926
 Flash  64Mbit
 Button  One Mechanical button
 Size  105x167x50mm
 Color  Silver/Black
 Material  ABS plastics
 Power  DC 12V/ C Battery*2
 IP class  IP65
 LED  6
 Camera  VAG (640*480)
 Camera Angle  105 degree
 Audio Codec  PCMU
 Video Codec  H.264
 Transmit Frequency Range  2.4GHz-2.4835GHz
 Data Rate  2.0Mbps
 ModulationType  GFSK
 TransmittingDistance(in open area)  About 500m
 PIR  2.5m*100°
  • Datasheet 304D-R7.pdf
