| Technical Details | |
| Connection | KNX |
| Power Supply | DC 21V-30V |
| Auxiliary Voltage | DC 21V–30V |
| Bus Current | <12mA |
| Bus Consumption | <360mW |
| Max Communication Objects | 6616 |
| Working Temperature | -5℃ - +45℃ |
| Storage Temperature | -25℃ to +55℃ |
| Working Humidity | <93%RH (Non-condensing) |
| Dimension | 72 x 90 x 64 mm |

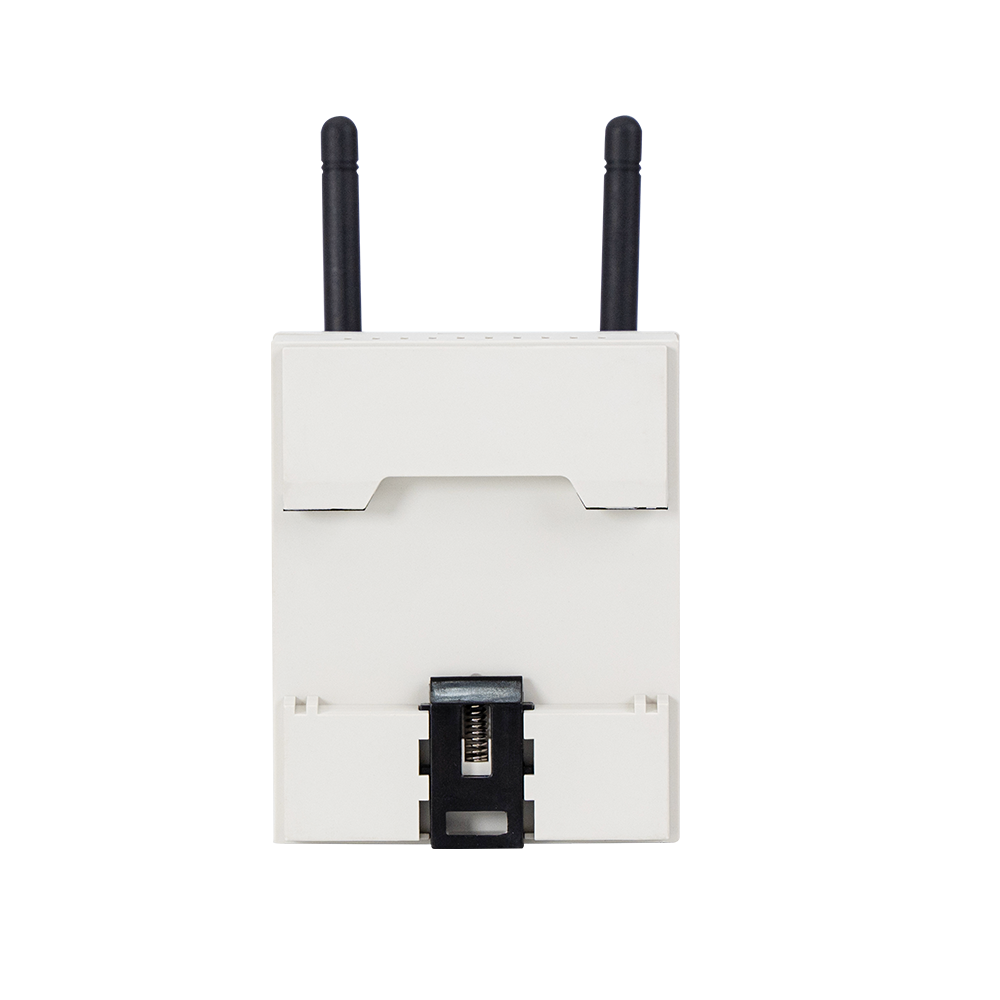

| Installation | 35mm DIN Rail Mounting |
-
Datasheet 904M-S3.pdfDownload
