| Physical Property of Door Station C112A | |
| System | Linux |
| RAM | 128MB |
| ROM | 128MB |
| Front Panel | Plastic |
| Power Supply | PoE (802.3af) or DC 12V/2A |

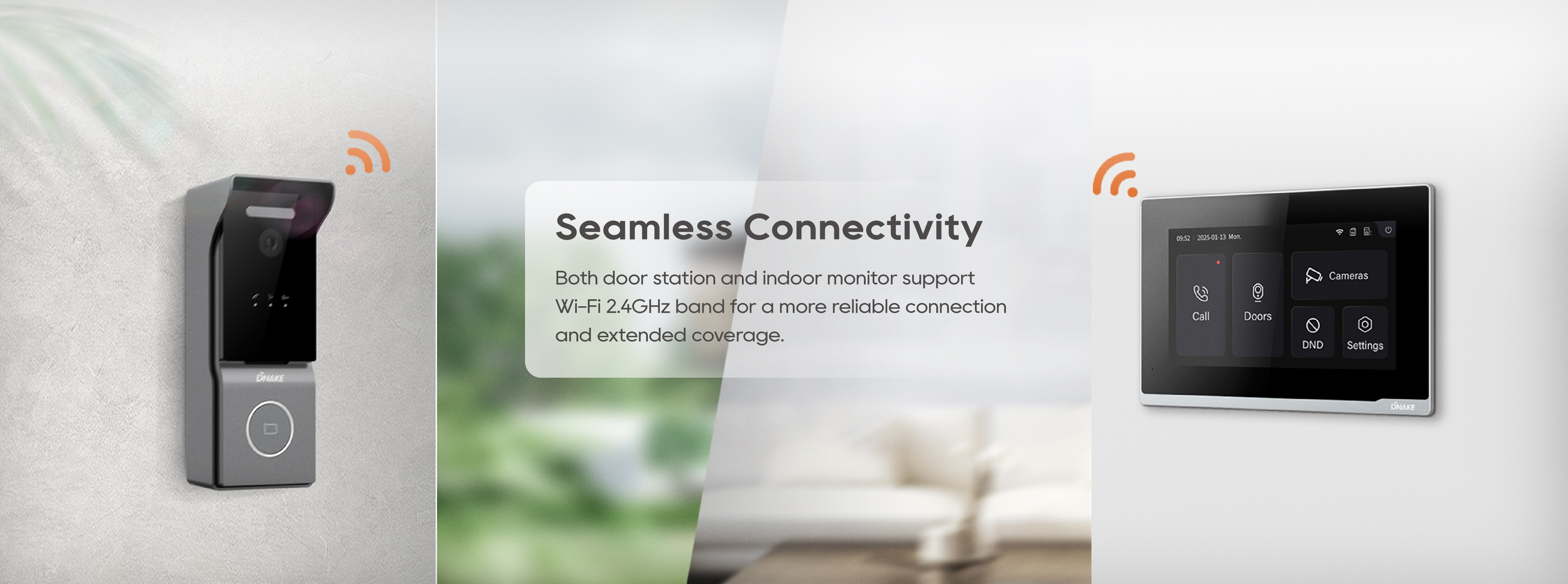

| Wi-Fi | IEEE802.11 b/g/n,@2.4GHz |
| Camera | 2MP, CMOS, Digital WDR |
| Indicator Light | 3 |
| Video Resolution | 1920 x 1080 |
| Viewing Angle | 110°(H) / 60°(V) / 125°(D) |
| Door Entry | IC (13.56MHz) Card, APP |
| IP Rating | IP65 |
| Installation | Surface Mounting |
| Dimension | 130 x 50 x 28 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Physical Property of Indoor Monitor E217W |
|
| System | Linux |
| RAM | 128MB |
| ROM | 128MB |
| Front Panel | Plastic |
| Display | 7-inch TFT LCD |
| Screen | Capacitive touch screen |
| Resolution | 1024 x 600 |
| Power Supply | PoE (802.3af) or DC 12V/2A |
| Wi-Fi | IEEE802.11 b/g/n,@2.4GHz |
| Installation | Surface Mounting |
| Dimension | 195 x 130 x 14.5 mm |
| Working Temperature | -10℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264, H.265 |
| Light Compensation | LED white light |
| Networking | |
| Protocol | Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port of C112A | |
| Wiegand | Support |
| Ethernet | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 | 1 |
| Relay Out | 1 |
| Reset Button | 1 |
| Input | 2 |
| TF Card Slot | 1 |
| Port of E217W | |
| Ethernet | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 | 1 |
| Doorbell Input | 8 (Use any alarm input port) |
| Alarm Input | 8 |
| Power Output | 1 (12V/100mA) |
| TF Card Slot | 1 |
-
