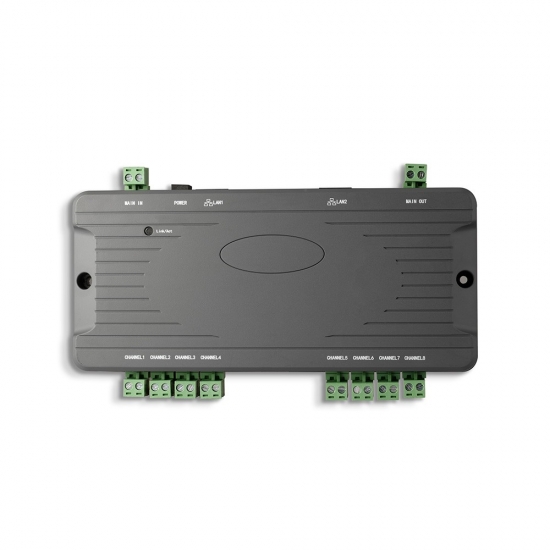

2-Wired Villa Intercom - IP-2Wire Isolator – DNAKE Detail:
1.There is no need to replace the existing wiring or cables. It can connect to 290 IP device with two-wire cables, even in an analog environment.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
| Physical Property | ||||
| Size | 197x114x38mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 4W | |||
| Power Adapter | 48VDC / 1.25A,60W | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Network Cable | Cat 5e, Cat 6 or better | |||
| 2-Wire | RVV 2*0.75, ≤100m | |||
| Interface | ||||
| RJ45 | DC socket (Input 48VDC)*1 RJ45*2 2-core interface(Main In)*1 2-core interface(Main Out)*1 2-core interface(connect to indoor monitor)*8 |
|||
| RJ45 | 2 | |||
| 2-Wire | Main In*1Main Out*1
Connection to Indoor Monitor *8 |
|||
| DC Socket | Yes (Input 48VDC) | |||
| Transmission Method | ||||
| Access Method | CSMA/CA; Transmission Scheme: Wavelet OFDM; Frequency Bandwidth: 2 MHz to 28 MHz | |||
| Transmission Scheme | Wavelet OFDM | |||
| Frequency Bandwidth | 2 MHz to 28 MHz | |||
Product detail pictures:
Related Product Guide:
The corporate upholds the philosophy of "Be No.1 in excellent, be rooted on credit rating and trustworthiness for growth", will keep on to serve outdated and new clients from home and abroad whole-heatedly for 2-Wired Villa Intercom - IP-2Wire Isolator – DNAKE, The product will supply to all over the world, such as: Madras , US , Portland , "Good quality, Good service " is always our tenet and credo. We take every effort to control the quality, package, labels etc and our QC will check every detail during producing and before shipment. We are willing to establish long business relationship with those who seek the high quality products and good service. We have set up a wide sales network across European countries, North of America, South of America, Middle East, Africa, East Asia countries.Please contact us now, you will find our professional experience and high quality grades will contribute to your business.
-
Datasheet 904M-S3.pdfDownload
