| Physical Property | ||||
| Material | Plastic | |||
| Power Supply | DC 48V ±10% | |||
| Rated Power | 4W | |||
| Dimension | 197 x 114 x 38mm | |||
| Working Temperature | -10℃ ~ +55℃ | |||
| Storage Temperature | -10℃ ~ +60℃ | |||
| Working Humidity | 10% ~ 90% (non-condensing) | |||
| Installation |
Rail Mounting
|
|||

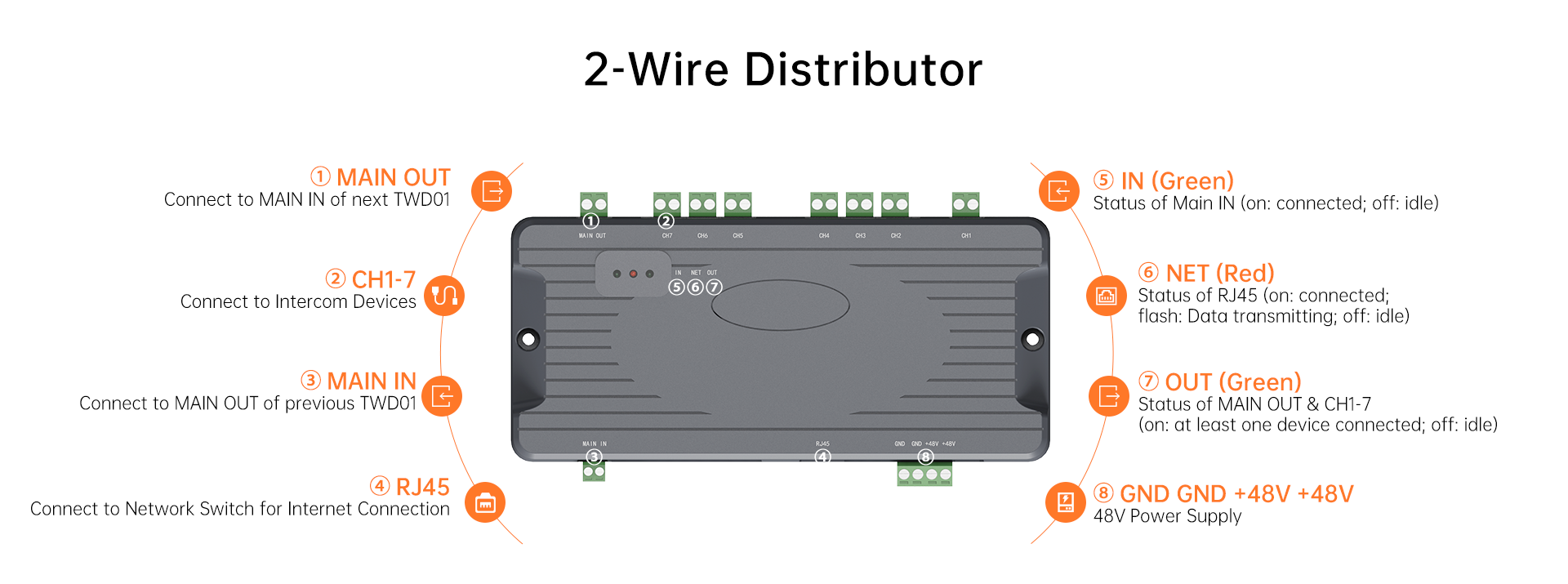

| Port | ||||
| Main In | 1 | |||
| Main Out | 1 | |||
|
2-Wire Cascade Interface
|
7(Total power is not more than 90w) | |||
|
Ethernet Port
|
1 x RJ45, 10/100 Mbps adaptive
|
|||
-
Datasheet 904M-S3.pdfDownload
