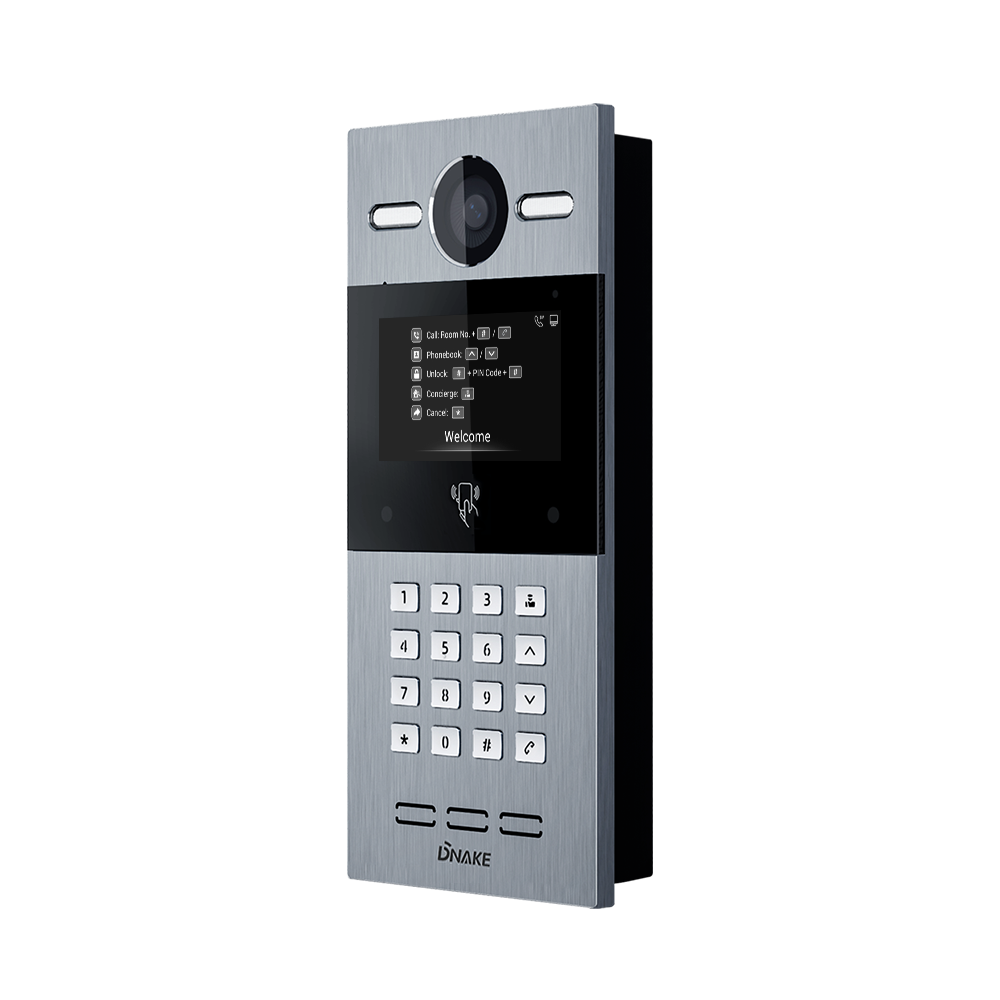

Linux Lobby Station - 4.3 ”SIP Vhidhiyo Door Foni - DNAKE Detail:
| Pfuma Yenyama | |
| System | Linux |
| Front Panel | Aluminium |
| Bhatani | Mechanical |
| Magetsi | PoE (802.3af) kana DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 9W |
| Kamera | 2MP, CMOS |
| Musuo Kupinda | IC (13.56MHz) & ID (125kHz) kadhi, PIN kodhi, NFC |
| IP/IK Rating | IP65 / IK08 |
| Installation | Flush Mounting & Surface Mounting |
| Surface Mounting Dimension | 295 x 133 x 42.7 mm |
| Flush Mounting Dimension | 295 x 133 x 63.5 mm |
| Kushanda Tembiricha | -40 ℃ - +55 ℃ |
| Storage Temperature | -40 ℃ - +70 ℃ |
| Kushanda Humidity | 10% -90% (isina-condensing) |
| Display | |
| Display | 4.3-inch TFT LCD |
| Resolution | 480 x 272 |
| Audio & Vhidhiyo | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Vhidhiyo Resolution | 1280 x 720 |
| Viewing Angle | 110°(H) / 67°(V) / 127°(D) |
| Chiedza Muripo | LED chena chiedza |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegend Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps inogadziriswa |
| RS485 Chiteshi | 1 |
| Relay Out | 3 |
| Reset Bhatani | 1 |
| Input | 4 |
Mifananidzo yezvigadzirwa:
Related Product Guide:
Isu tinowanzo kuenderera nedzidziso yekuti "Hunhu Hwekutanga, Prestige Supreme". Takazvipira zvizere kuendesa vatengi vedu nezvinhu zvemhando yepamusoro, kuendesa nekukasira uye nerutsigiro rweLinux Lobby Station - 4.3 ”SIP Vhidhiyo Door Foni - DNAKE, Chigadzirwa chinopihwa pasirese, senge: Bandung, Niger, Pakistan, Tinotenda kuti hukama hwakanaka hwebhizinesi huchatungamira kune mabhenefiti uye kuvandudzwa kwemapato edu mazhinji akabudirira muhukama hwakareba uye hukama hwehukama hwakabudirira. masevhisi akasarudzika uye kutendeseka mukuita bhizinesi Isu tinonakidzwawo nemukurumbira wepamusoro kuburikidza nekuita kwedu kurinani kunogona kutarisirwa sezvo musimboti wekuzvipira uye Kutsiga kucharamba kuripo.
-
Datasheet 904M-S3.pdfDownload
