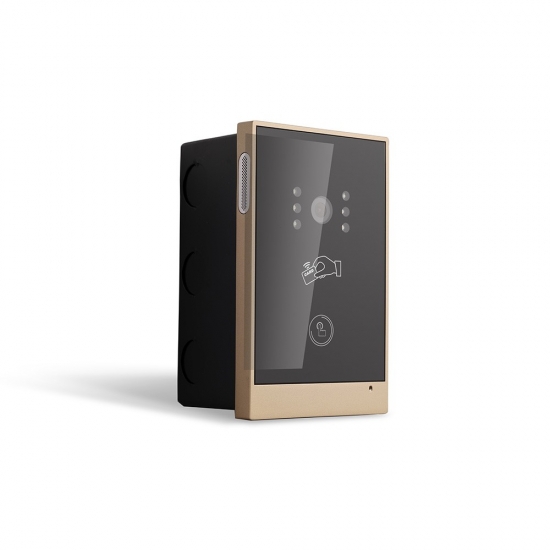

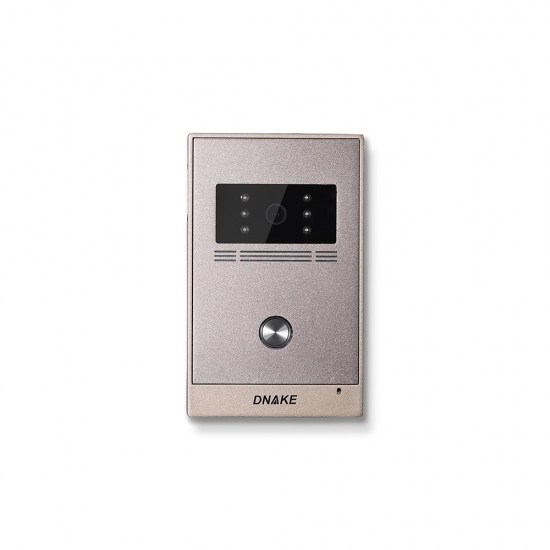

» Wall Panel – 280SD-C5 Linux SIP2.0 Villa Panel – DNAKE Detail:
1. SIP-based door station supports communication with SIP phone or softphone, etc.
2. It can work with the lift control system via RS485 interface.
3. Backlit buttons and LED lights for night vision are convenient for operation at night.
4. Touch button or mechanical button is available.
5. 20,000 IC or ID cards can be identified for access control.
6. It can be powered by PoE or an external power source.
2. It can work with the lift control system via RS485 interface.
3. Backlit buttons and LED lights for night vision are convenient for operation at night.
4. Touch button or mechanical button is available.
5. 20,000 IC or ID cards can be identified for access control.
6. It can be powered by PoE or an external power source.
| Physical Property | |
| System | Linux |
| CPU | 1GHz，ARM Cortex-A7 |
| SDRAM | 128MB |
| Flash | 64M DDR2 |
| Product Size | 160x99.5x47(mm) |
| Build-in Box size | 151x94x45(mm) |
| Treppanning Size | 153x96x50(mm) |
| Power | DC12V/POE |
| Standby power | 1.5W |
| Rated Power | 3W |
| RFID Card Reader | IC/ID (Optional), 20,000 pcs |
| Button | Single Mechanical/Touch(optional) |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280×720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock circuit | Yes |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 280SD-C5.pdfDownload
