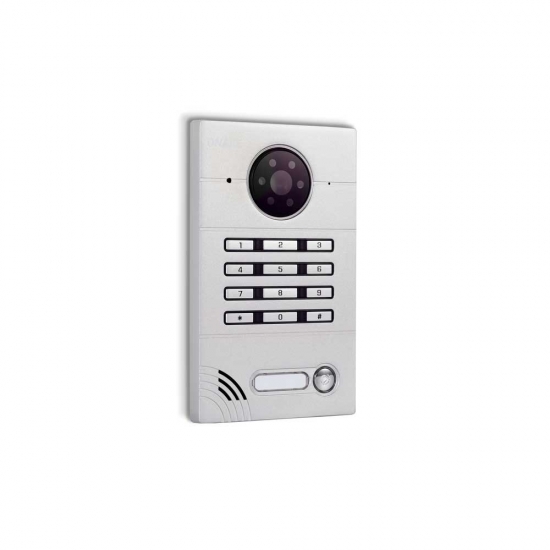

» Intercom Entry System – 280SD-C3K Linux SIP2.0 Villa Panel – DNAKE Detail:
280SD-C3K Linux SIP2.0 Villa Panel
1. SIP-based door phone supports call with SIP phone or softphone, etc.
2. 8 admin passwords can be added for door unlocking.
3. It can work with the lift control system via RS485 interface.
4. When equipped with one optional unlocking module, two relay outputs can be connected to control two locks.
5. Weatherproof and vandal-proof design ensures the stability and service life of the device.
6. It can be powered by PoE or an external power source.
| Physical Property | |
| System | Linux |
| CPU | 1GHz，ARM Cortex-A7 |
| SDRAM | 128MB |
| Flash | 64M DDR2 |
| Product Size | 116x192x47(mm) |
| Build-in Box size | 100x177x45(mm) |
| Treppanning Size | 105x182x52(mm) |
| Power | DC12V/POE |
| Standby power | 1.5W |
| Rated Power | 3W |
| Button | One Mechnical Button |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280×720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock circuit | Yes |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 280SD-C3.pdfDownload
