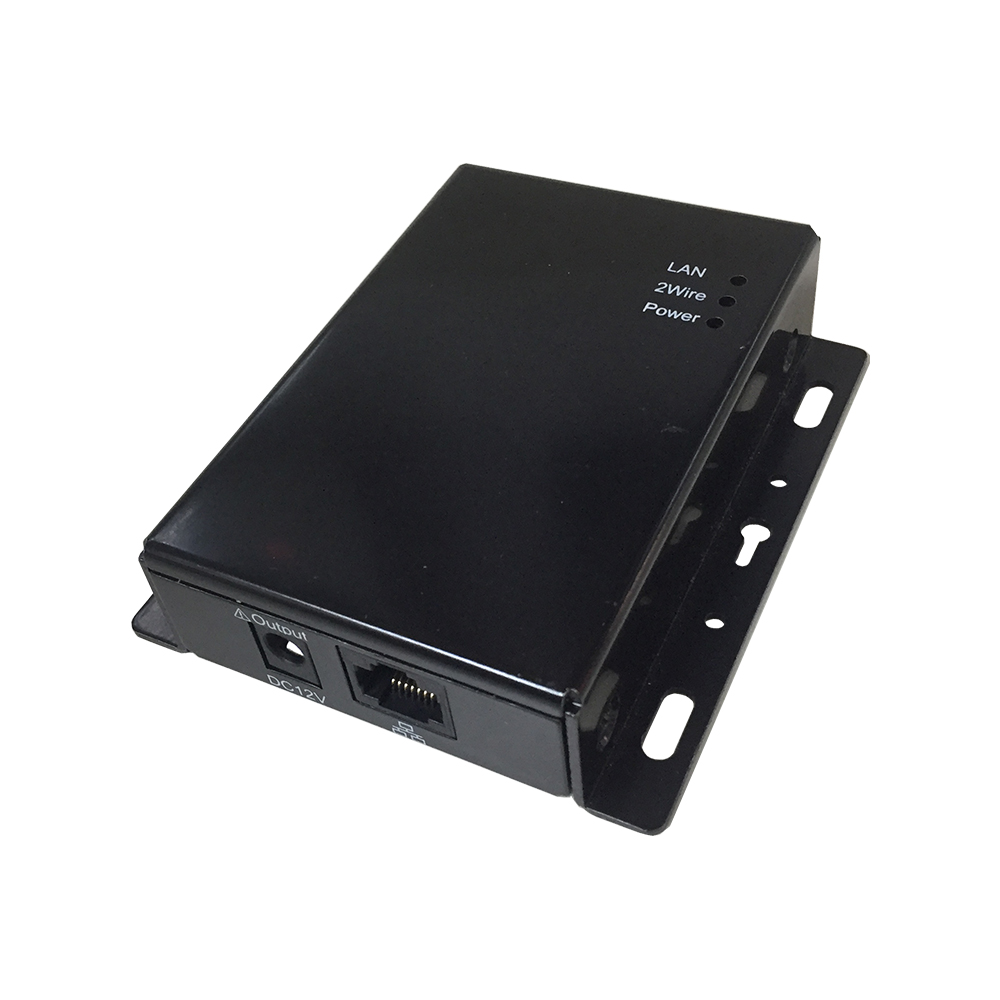

» Factory wholesale Intercom Unit – 2-Wire IP System Converter – DNAKE Detail:
1. There is no need to replace the existing wiring or cables. It can connect to 290A isolator or master converter using a two-wire cable.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
2. It can connect and supply power to an IP device, such as villa door station with PoE function, over an Ethernet port.
3. One Ethernet port can be used for internet input and PoE power supply.
| Physical Property | ||||
| Size | 112x87x25mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 2W | |||
| Power Adapter | NA | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Network Cable | Cat 5e, Cat 6 or better | |||
| 2-wire | RVV 2*0.75, ≤100m | |||
| Interface | ||||
| RJ45 | Yes | |||
| 2-Wire | Yes | |||
| DC Socket | Yes (Output 12VDC) | |||
| LED Indicators | ||||
| Power | Red – Power ON | |||
| 2-Wire | Green – Link ON | |||
| LAN | Green – Link ON | |||
| Transmission Method | ||||
| Access Method | CSMA/CA | |||
| Transmission Scheme | Wavelet OFDM | |||
| Frequency Bandwidth | 2 MHz to 28 MHz | |||
Product detail pictures:
Related Product Guide:
It can be our accountability to satisfy your preferences and competently provide you. Your satisfaction is our greatest reward. We are searching ahead towards your visit for joint growth for » Factory wholesale Intercom Unit – 2-Wire IP System Converter – DNAKE, The product will supply to all over the world, such as: Slovak Republic , Lahore , kazan , Our company promises: reasonable prices, short production time and satisfactory after-sales service, we also welcome you to visit our factory at any time you want. Wish we have a pleasant and long terms business together!!!
-
Datasheet 904M-S3.pdfDownload
