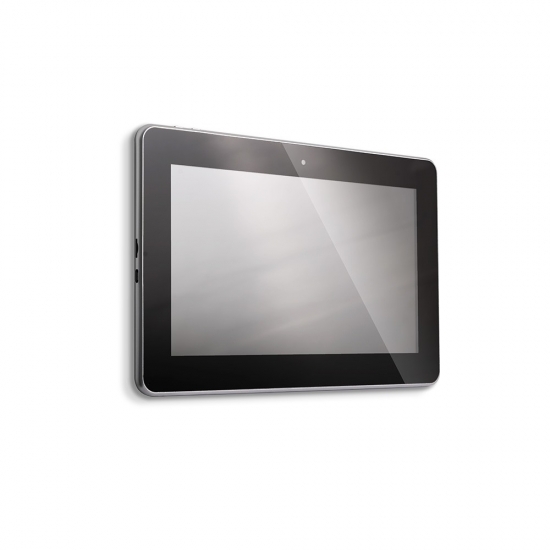

» Factory Supply Intercom Ring – 902M-S7 – DNAKE Detail:
1. User interface can be customized and programmed as needed.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can find and install apps in the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it converges smart home system, you are able to control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can answer and see the visitors before granting or denying access as well as call the neighbors using the indoor monitor.
8.10-inch touch screen panel delivers brilliant display and ultimate screen experience.
2. It is easy to use SIP2.0 protocol to establish video and audio communication with IP phone or SIP softphone, etc.
3. Users can find and install apps in the indoor monitor for home entertainment.
4. Max. 8 alarm zones, such as fire detector, smoke detector, or window sensor etc., can be connected to increase home security.
5. It supports monitoring 8 IP cameras in the surrounding environment, such as the garden or parking lot, to keep your home safe and secure.
6. When it converges smart home system, you are able to control and manage home appliances with the indoor monitor or smartphone, etc.
7. Residents can answer and see the visitors before granting or denying access as well as call the neighbors using the indoor monitor.
8.10-inch touch screen panel delivers brilliant display and ultimate screen experience.
| Physical Property | |
| System | Android 4.4.2 |
| CPU | Quad core 1.3GHz Cortex-A7 |
| Memory | DDR3 512MB |
| Flash | 4GB |
| Display | 10“ TFT LCD, 1024x600/1280x800（optional） |
| Power | DC12V |
| Standby power | 3W |
| Rated Power | 10W |
| TF Card & USB Support | Yes (Maximum 32 GB) |
| WiFi & Bluetooth | Optional |
| Temperature | -10℃ - +55℃ |
| Humidity | 20%-85% |
| Audio & Video | |
| Audio Codec | G.711U, G711A, G.729 |
| Video Codec | H.264 |
| Screen | Capacitive, Touch Screen |
| Camera | Yes(Optional), 0.3M Pixels |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | SIP,TCP/IP, RTSP, RTP, HTTP |
| Features | |
| IP Camera Support | 8-way Cameras |
| Door Bell Input | Yes |
| Record | Picture/Audio/Video |
| AEC/AGC | Yes |
| Home Automation | Yes(RS485) |
| Alarm | Yes(8 Zones) |
-
Datasheet 902M-S7.pdfDownload
