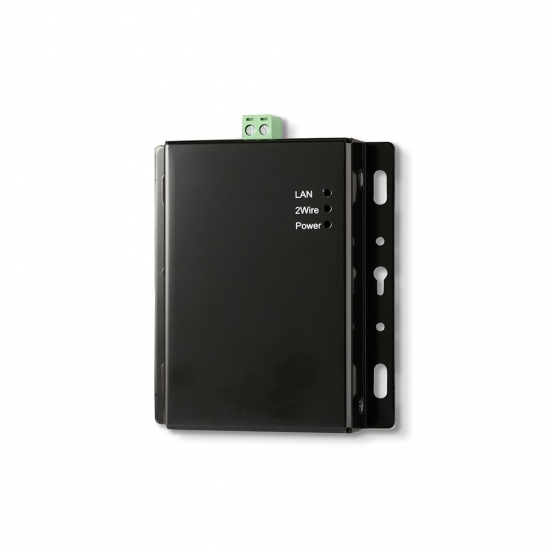

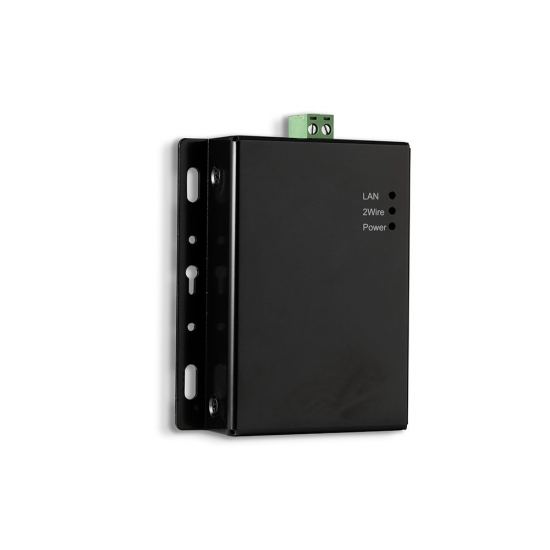

» Factory Free sample Best Video Intercom Systems For Home – 290 Master – DNAKE Detail:
1. There is no need to replace the existing wiring or cables. It can connect to 290 IP device using a two-wire cable, even in an analog environment.
2. It can connect and supply power to max. 4 IP devices by working with Slave Converter over two-wire cable.
3. There is one Ethernet port for internet input and system expansion.
2. It can connect and supply power to max. 4 IP devices by working with Slave Converter over two-wire cable.
3. There is one Ethernet port for internet input and system expansion.
| Physical Property | ||||
| Size | 112x87x25mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 2W | |||
| Power Adapter | 48VDC / 1.25A,60W | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Interface | DC socket (Input 48VDC)*1 RJ45*1 2-core interface*1 |
|||
| LED Indicators | Power: Red – Power ON 2-Wire: Green – Link ON LAN: Green – Link ON | |||
| Transmission Method | Access Method: CSMA/CA Transmission Scheme: Wavelet OFDM Frequency Bandwidth: 2 MHz to 28 MHz | |||
| 2-wire | RVV 2*0.75, ≤100m | |||
| network cable | Cat 5e, Cat 6 or better | |||
Product detail pictures:
Related Product Guide:
Our advancement depends on the superior gear ,superb talents and consistently strengthened technology forces for » Factory Free sample Best Video Intercom Systems For Home – 290 Master – DNAKE, The product will supply to all over the world, such as: Amman, Melbourne , Guatemala , We have been in operation for more than 10 years. We are dedicated to quality products and consumer support. We currently own 27 product utility and design patents. We invite you to visit our company for a personalized tour and advanced business guidance.
-
Datasheet 904M-S3.pdfDownload
