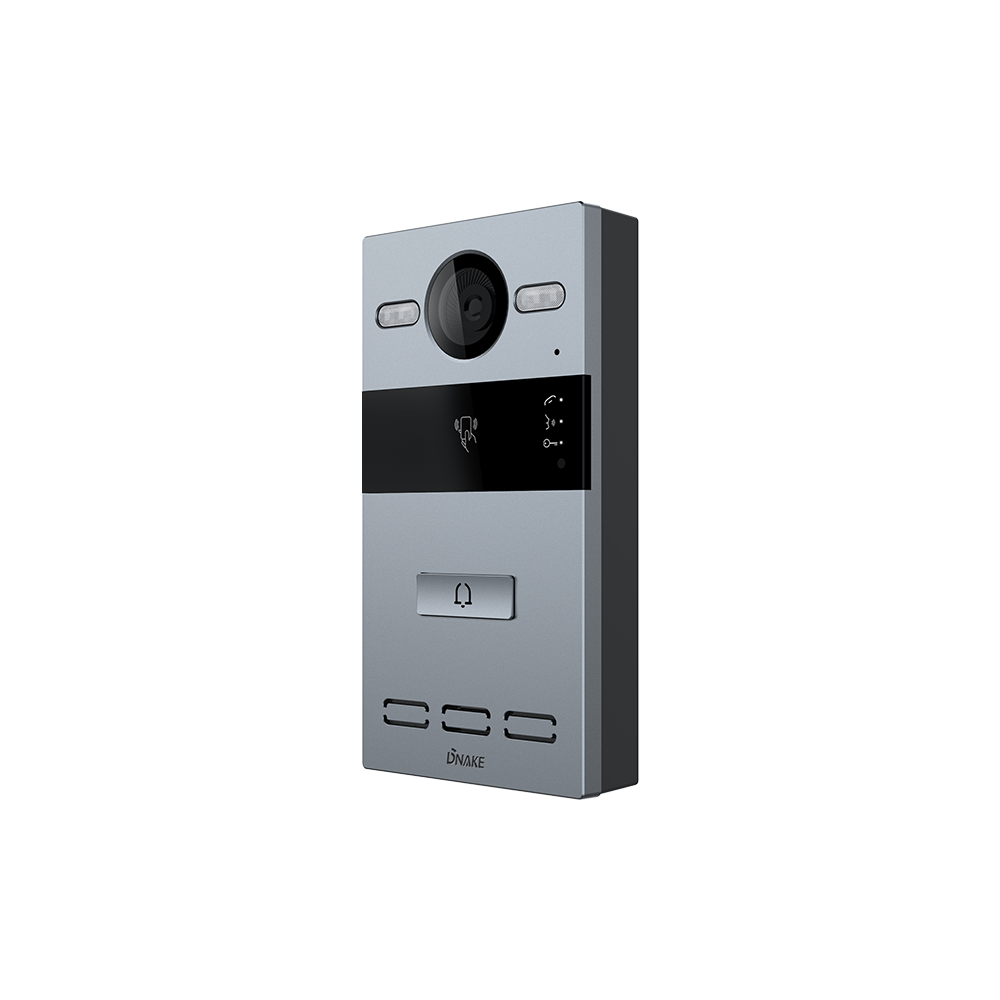

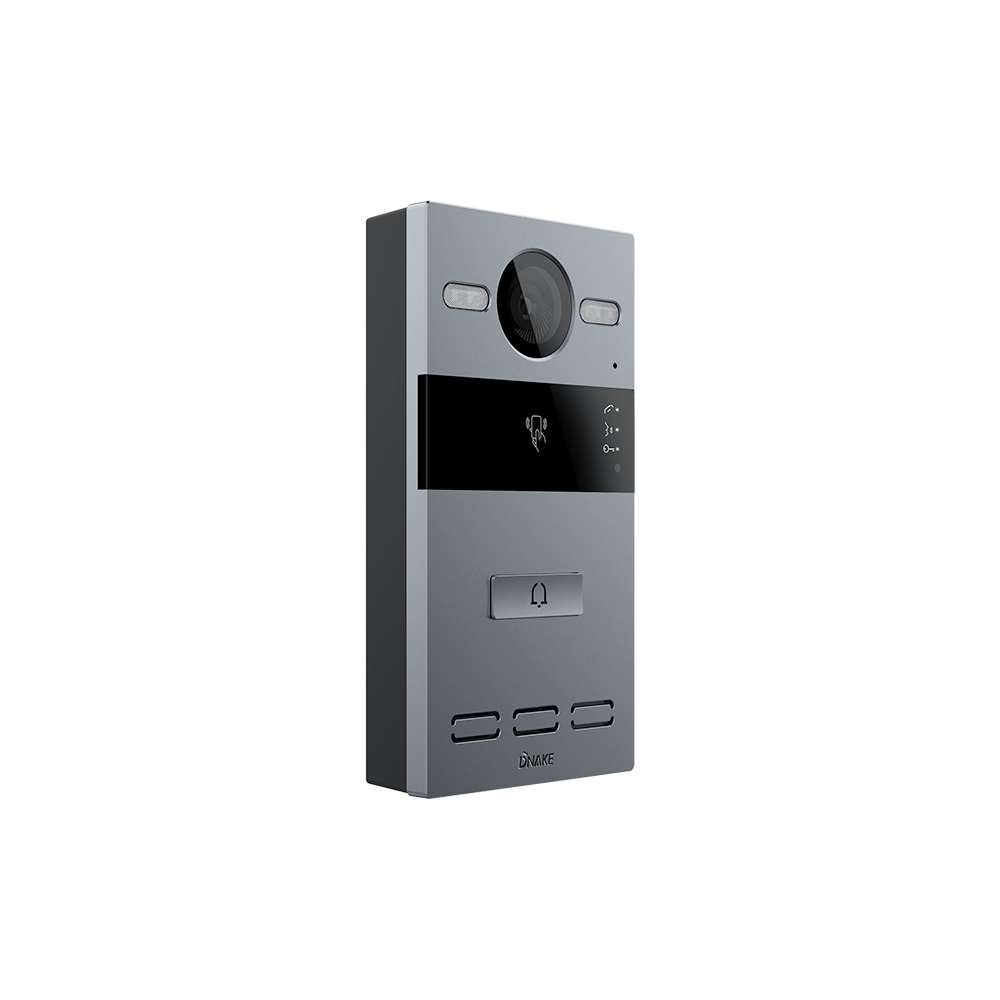

» Call Station – 1-button SIP Video Door Phone – DNAKE Detail:

Physical Property
System	Linux
RAM	64MB
ROM	128MB
Front Panel	Aluminum
Reset Button	1
Power Supply	PoE (802.3af) or DC12V/2A
Standby Power	1.5W
Rated Power	3W
Camera	2MP, CMOS
Indicator Light	3
Door Entry	IC (13.56MHz),ID (125kHz) card in one, NFC
IP/IK Rating	IP65 / IK07
Installation	Flush/Surface Mounting
Dimension	210 x 120 x 32 mm (Flush Mounting); 168 x 88 x 34 mm (Surface Mounting)
Working Temperature	-40℃ - +55℃
Storage Temperature	-40℃ - +70℃
Working Humidity	10%-90% (non-condensing)
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Video Resolution	1280 x 720
Viewing Angle	110°(H) / 60°(V) / 125°(D)
Light Compensation	LED white light
Networking
Protocol	ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Wiegand Port	Support
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
RS485 Port	1
Relay Out	2
Exit Button	1
Door Magnetic	1

---

Product detail pictures:

---
