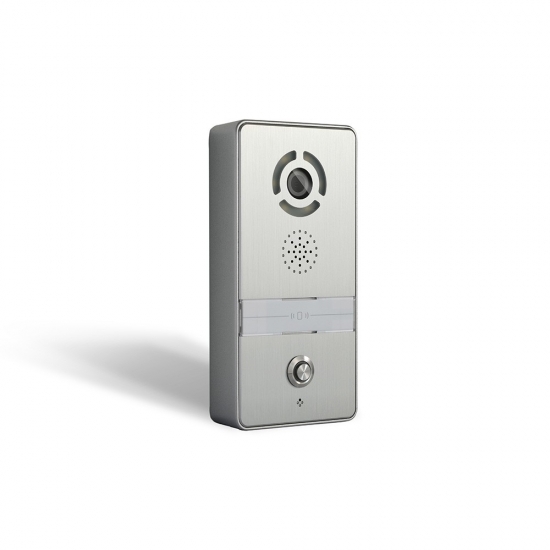

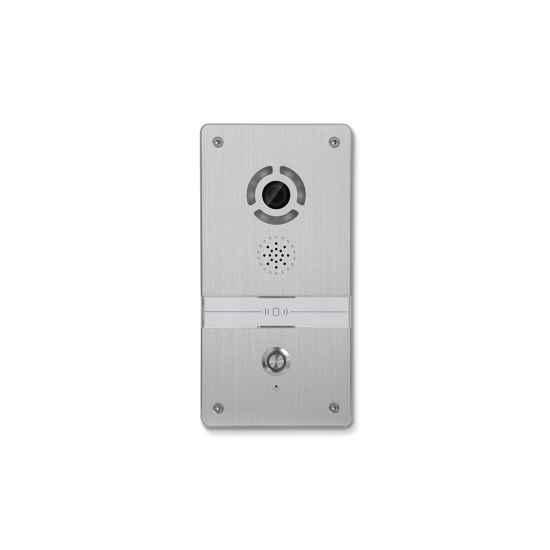

» Best quality Wireless Intercom For Home – 280SD-C12 Linux SIP2.0 Villa Panel – DNAKE Detail:
1. SIP-based door station supports communication with SIP phone or softphone, etc.
2. Integration with elevator control system offers a more convenient life way.
3. Weatherproof and vandal-proof design ensures the stability and service life of the device.
4. There are two ways of mounting to be chosen: flush or surface mounting.
5. It can be powered by PoE or external power source.
2. Integration with elevator control system offers a more convenient life way.
3. Weatherproof and vandal-proof design ensures the stability and service life of the device.
4. There are two ways of mounting to be chosen: flush or surface mounting.
5. It can be powered by PoE or external power source.
| Physical Property | |
| System | Linux |
| CPU | 1GHz，ARM Cortex-A7 |
| SDRAM | 128MB |
| Flash | 64M DDR2 |
| Product Size(Surface) | 170x84.5x31(mm) |
| Product Size(Flush) | 190x95x27(mm) |
| Power | DC12V/POE |
| Standby power | 1.5W |
| Rated Power | 3W |
| RFID Card Reader | IC/ID (Optional), 200,00 pcs |
| Button | Single Mechanical Button |
| Temperature | -40℃ - +70℃ |
| Humidity | 20%-93% |
| IP Class | IP65 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Camera | CMOS 2M pixel |
| Video Resolution | 1280×720p |
| LED Night Vision | Yes |
| Network | |
| Ethernet | 10M/100Mbps, RJ-45 |
| Protocol | TCP/IP, SIP |
| Interface | |
| Unlock circuit | Yes (Withstand max current 1A for lock) |
| Exit Button | Yes |
| RS485 | Yes |
| Door Magnetic | Yes |
-
Datasheet 280SD-C12.pdfDownload
