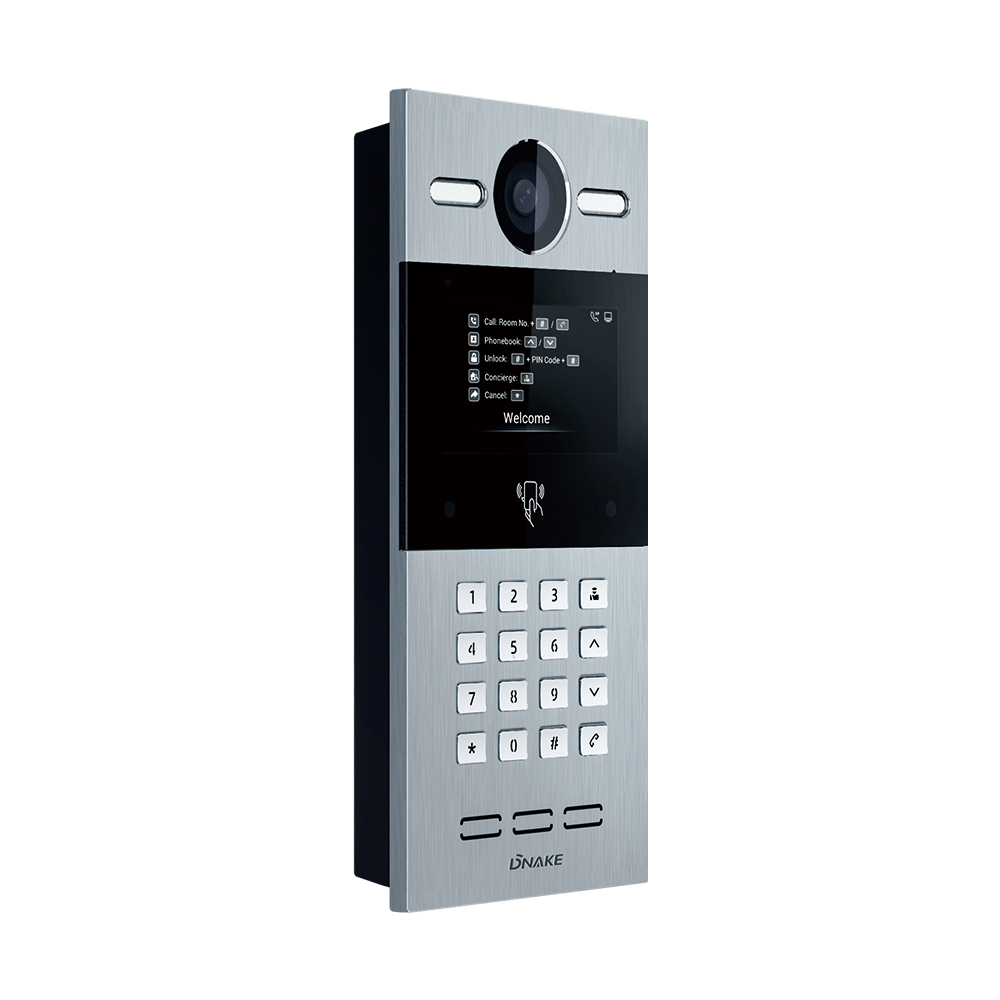

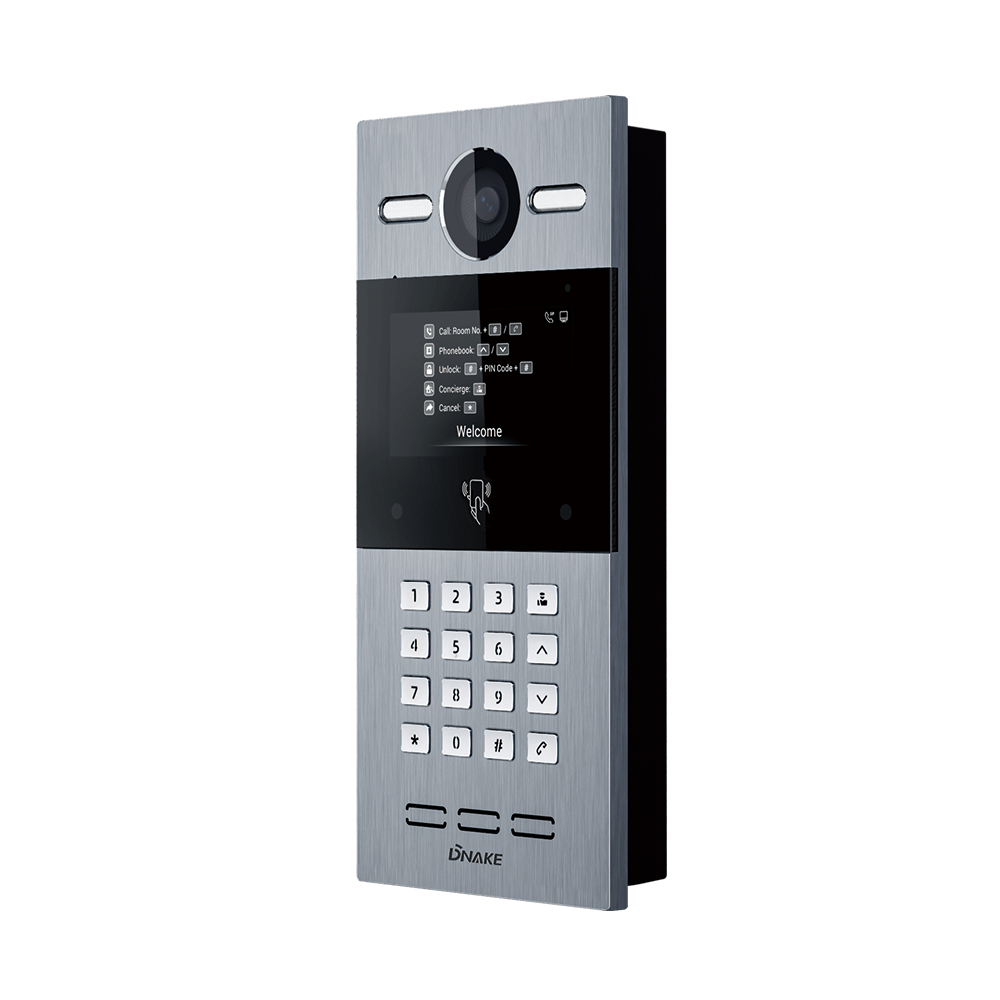

» Android Intercom For Home – 4.3” SIP Video Door Phone – DNAKE Detail:
| Physical Property | |
| System | Linux |
| Front Panel | Aluminum |
| Button | Mechanical |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 1.5W |
| Rated Power | 9W |
| Camera | 2MP, CMOS |
| Door Entry | IC card(13.56MHz), ID card(125kHz), PIN code, NFC |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Installation | Flush Mounting & Surface Mounting |
| Flush Mounting Dimension | 295 x 133 x 63.5 mm |
| Surface Mounting Dimension | 295 x 133 x 42.7 mm |
| Working Temperature | -40℃ - +55℃ |
| Storage Temperature | -40℃ - +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 4.3-inch TFT LCD |
| Resolution | 480 x 272 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Video Resolution | 1280 x 720 |
| Viewing Angle | 110°(H) / 67°(V) / 127°(D) |
| Light Compensation | LED white light |
| Networking | |
| Protocol | ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Wiegand Port | Support |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Relay Out | 3 |
| Reset Button | 1 |
| Exit Button/Door Magnetic | 4 |
Product detail pictures:
Related Product Guide:
As a way to present you with ease and enlarge our enterprise, we also have inspectors in QC Workforce and assure you our greatest support and solution for » Android Intercom For Home – 4.3” SIP Video Door Phone – DNAKE, The product will supply to all over the world, such as: Sri Lanka , Israel , Spain , Our company now has many department, and there have more than 20 employees in our company. We set up sales shop, show room, and product warehouse. In the meantime, we registered our own brand. We have tightened inspection for quality of product.
-
Datasheet 904M-S3.pdfDownload
