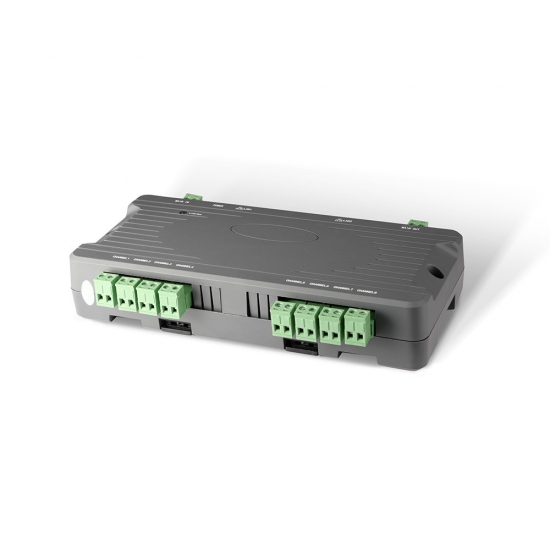

» 2-Wired Commercial Intercom – IP-2Wire Isolator – DNAKE Detail:
1.There is no need to replace the existing wiring or cables. It can connect to 290 IP device with two-wire cables, even in an analog environment.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
2.There are two Ethernet ports for Internet input and system expansion.
3.It can connect and supply power to max. 8 indoor monitors or any IP device by working with Slave Converter over two-wire cable.
| Physical Property | ||||
| Size | 197x114x38mm | |||
| Power | DC 48V ±10% | |||
| Rated Power | 4W | |||
| Power Adapter | 48VDC / 1.25A,60W | |||
| Temperature | -40℃ ~ +70℃ | |||
| Humidity | 20% ~ 93% | |||
| IP Class | IP30 | |||
| Network Cable | Cat 5e, Cat 6 or better | |||
| 2-Wire | RVV 2*0.75, ≤100m | |||
| Interface | ||||
| RJ45 | DC socket (Input 48VDC)*1 RJ45*2 2-core interface(Main In)*1 2-core interface(Main Out)*1 2-core interface(connect to indoor monitor)*8 |
|||
| RJ45 | 2 | |||
| 2-Wire | Main In*1Main Out*1
Connection to Indoor Monitor *8 |
|||
| DC Socket | Yes (Input 48VDC) | |||
| Transmission Method | ||||
| Access Method | CSMA/CA; Transmission Scheme: Wavelet OFDM; Frequency Bandwidth: 2 MHz to 28 MHz | |||
| Transmission Scheme | Wavelet OFDM | |||
| Frequency Bandwidth | 2 MHz to 28 MHz | |||
Product detail pictures:
